沃尔沃零件查询A20 EngineVOLVO BM A20 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
734 次

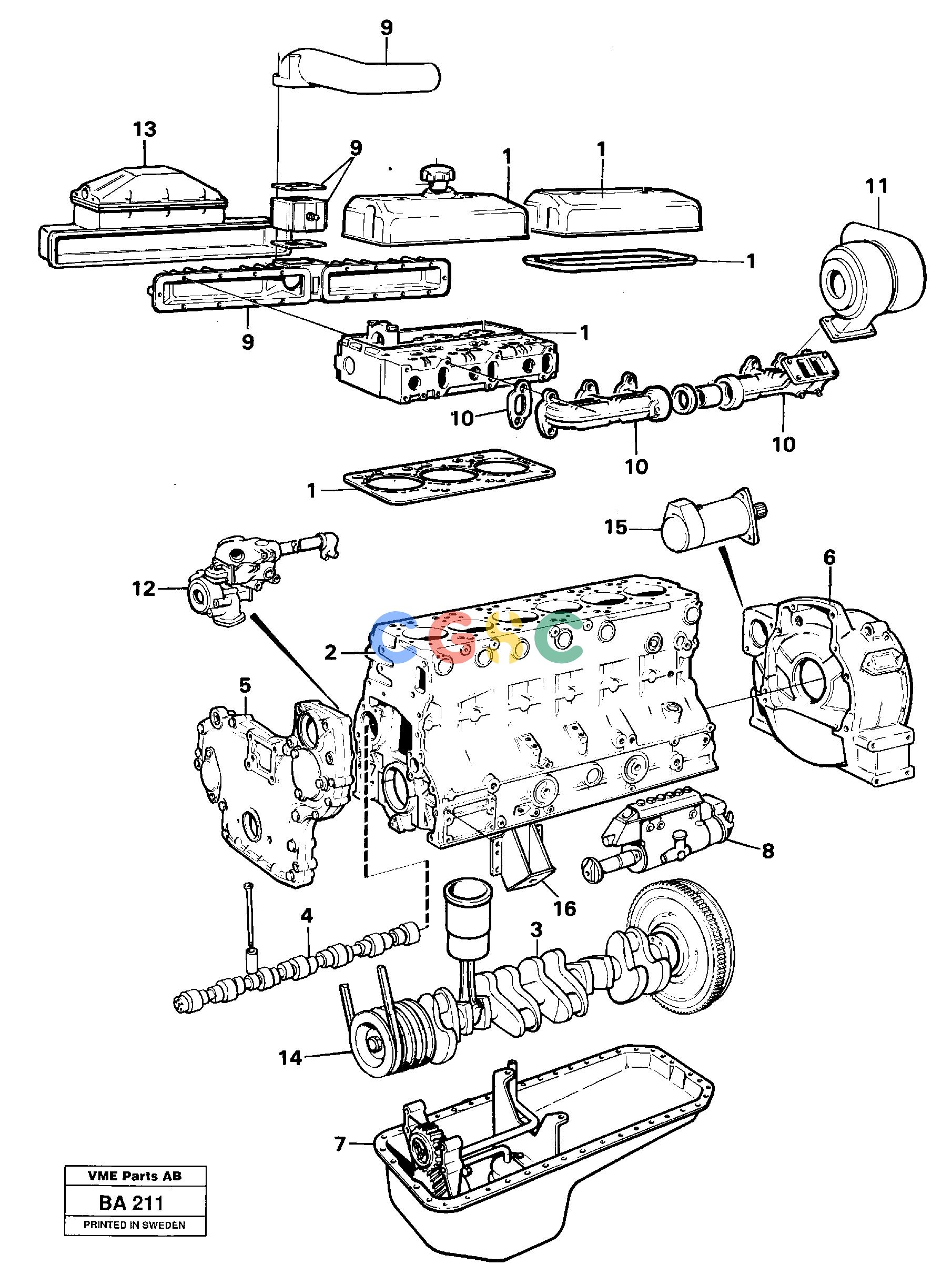

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE497287
|
[1] |
Engine
|
TD71G
|
| |
VOE497283
|
[1] |
Engine
|
TD71KAE
|
| 1. |
|
[0002] |
Cylinder head and
|
|
| |
|
|
Valve cover
|
|
| 2. |
|
[1] |
Cylinder block
|
|
| 3. |
|
[1] |
Crank mechanism
|
|
| |
|
|
Related parts
|
|
| 4. |
|
[1] |
Valve mechanism
|
|
| 5. |
|
[1] |
Timing gear casing
|
|
| |
|
|
And gears
|
|
| 6. |
|
[1] |
Flywheel housing
|
|
| 7. |
|
[1] |
Lubricating system
|
SEE GROUP 22
|
| 8. |
|
[1] |
Fuel system
|
SEE GROUP 23
|
| 9. |
|
[1] |
Inlet system
|
SEE GROUP 25
|
| 10. |
|
[0001] |
Exhaust system
|
SEE GROUP 25
|
| 11. |
|
[0001] |
Turbocharger
|
SEE GROUP 25
|
| 12. |
|
[0001] |
Cooling system
|
SEE GROUP 26
|
| 13. |
|
[0001] |
Charge air cooler
|
TD71KAE
|
| |
|
|
None
|
SEE GROUP 26
|
| 14. |
|
[0001] |
Belt transmission
|
SEE GROUP 26
|
| 15. |
|
[0001] |
Starter motor
|
SEE GROUP 33
|
| 16. |
|
[0001] |
Engine suspension
|
|
