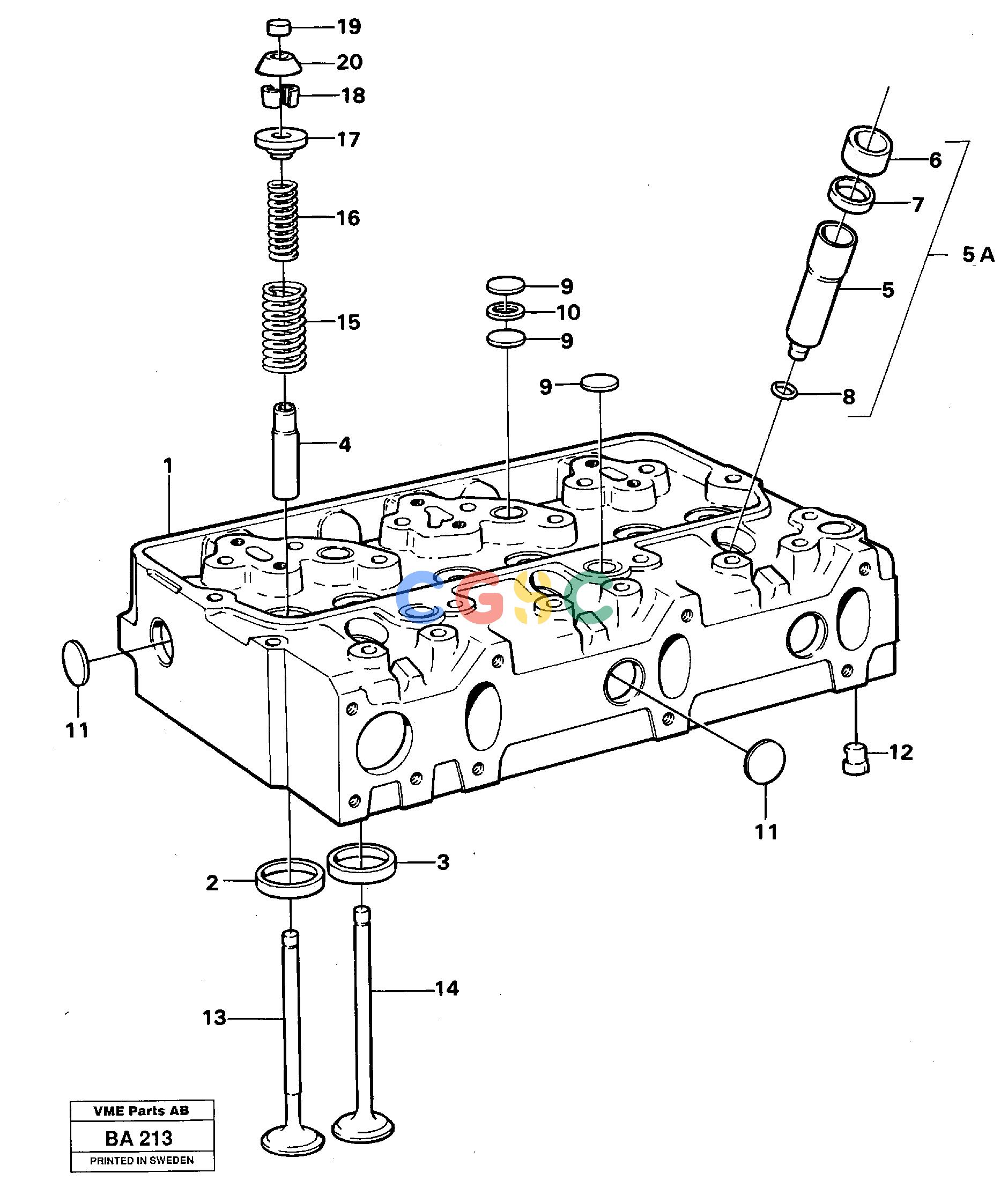

沃尔沃零件查询A20 Cylinder headVOLVO BM A20 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
683 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE421500
|
[1] |
Cylinder head
|
|
| 1. |
|
[1] |
Cylinder head
|
|
| 2. |
VOE421011
|
[3] |
Valve seat
|
STD
|
| |
VOE421316
|
[3] |
Valve seat
|
0,20 MM O SZ
|
| 3. |
VOE466266
|
[3] |
Valve seat
|
STD
|
| |
VOE466307
|
[3] |
Valve seat
|
0,20 MM O SZ
|
| 4. |
VOE466386
|
[6] |
Valve guide
|
|
| |
|
|
None
|
|
| 5A. |
VOE273821
|
[3] |
Repair kit
|
|
| 5. |
VOE477928
|
[0001] |
Socket
|
|
| 6. |
VOE466420
|
[00 1] |
Ring
|
|
| 7. |
VOE466405
|
[0 1] |
Sealing ring
|
|
| 8. |
VOE466922
|
[1] |
Sealing ring
|
|
| |
|
|
None
|
|
| 5A. |
VOE276130
|
[3] |
Repair kit
|
|
| 5. |
VOE477928
|
[1] |
Socket
|
|
| 6. |
VOE466420
|
[1] |
Ring
|
|
| 7. |
VOE466405
|
[1] |
Sealing ring
|
|
| 8. |
VOE466922
|
[1] |
Sealing ring
|
|
| |
|
|
None
|
|
| 9. |
VOE477026
|
[7] |
Expansion plug
|
|
| 10. |
VOE947626
|
[2] |
Gasket
|
|
| 11. |
VOE477024
|
[4] |
Expansion plug
|
|
| 12. |
VOE465420
|
[5] |
Nozzle
|
|
| 13. |
VOE466379
|
[3] |
Valve
|
|
| 14. |
VOE421680
|
[3] |
Exhaust valve
|
|
| 15. |
VOE466384
|
[6] |
Valve spring
|
|
| 16. |
VOE466383
|
[6] |
Valve spring
|
|
| 17. |
VOE466382
|
[6] |
Washer
|
|
| 18. |
VOE468305
|
[12] |
Valve sleeve
|
|
| 19. |
VOE478074
|
[6] |
Valve cap
|
|
| 20. |
VOE469456
|
[6] |
Protecting ring
|
|
