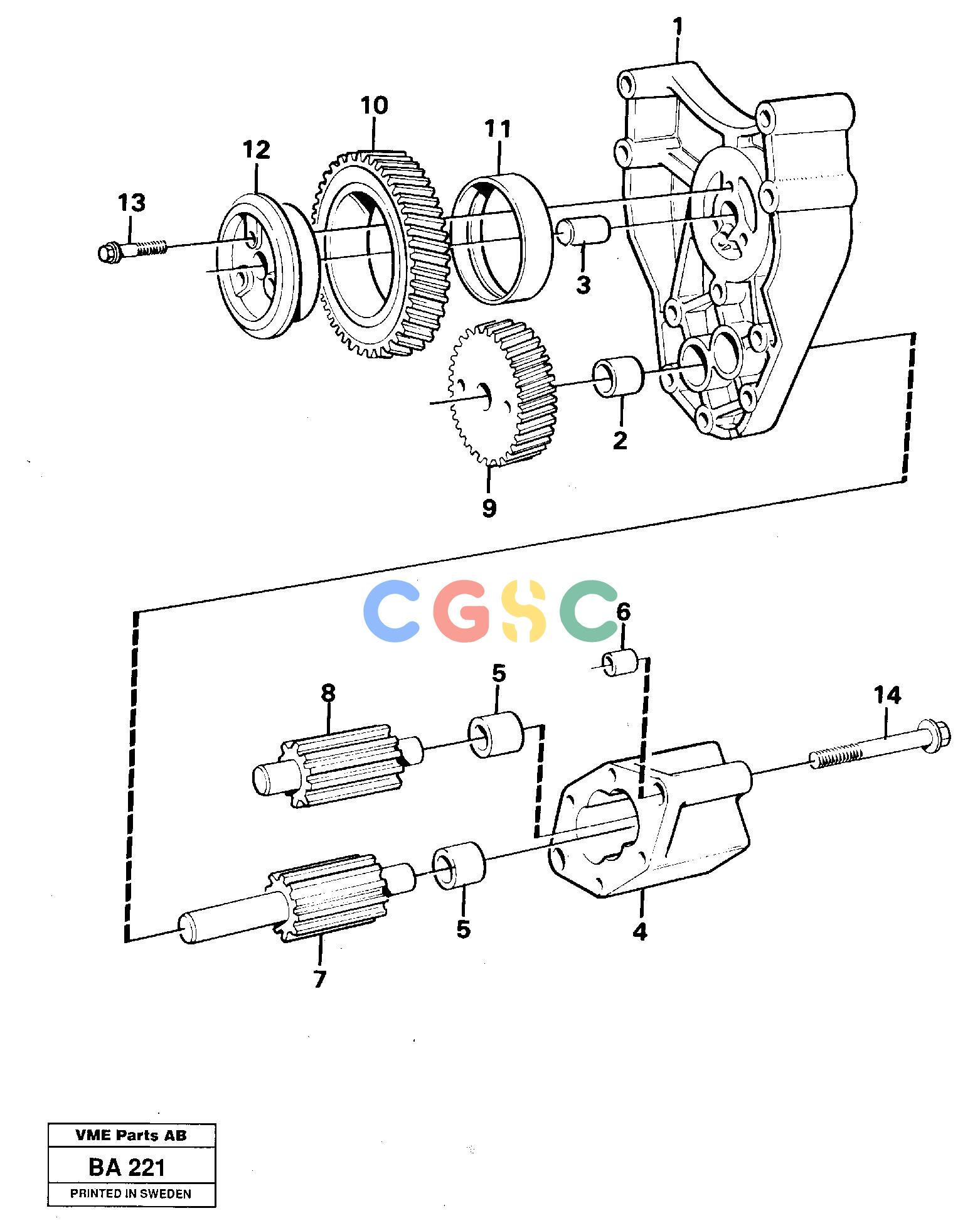

沃尔沃零件查询A20 Oil pumpVOLVO BM A20471733-477547NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
154 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE471733
|
[1] |
Oil pump housing
|
|
| |
VOE477547
|
|
Oil pump
|
ENG - 97292
|
| |
VOE864760
|
|
Oil pump
|
ENG 97293 -
|
| 1. |
VOE471571
|
[1] |
Bracket
|
|
| 2. |
VOE470347
|
[2] |
Bushing
|
|
| 3. |
VOE191171
|
[1] |
Pin
|
|
| 4. |
VOE471727
|
[1] |
Oil pump housing
|
|
| |
VOE470344
|
|
Oil pump housing
|
|
| 5. |
VOE470347
|
[2] |
Bushing
|
|
| 6. |
VOE401146
|
[2] |
Guide sleeve
|
|
| 7. |
VOE471730
|
[1] |
Drive shaft
|
|
| |
VOE477549
|
|
Drive shaft
|
|
| |
VOE478651
|
|
Drive shaft
|
|
| 8. |
VOE471731
|
[1] |
Idler shaft
|
|
| |
VOE477548
|
|
Idler shaft
|
|
| |
VOE478650
|
|
Idler shaft
|
|
| 9. |
VOE471941
|
[1] |
Drive Gear
|
|
| 10. |
VOE471942
|
[1] |
Drive Gear
|
|
| 11. |
VOE471585
|
[1] |
Bushing
|
|
| 12. |
VOE420048
|
[1] |
Bearing sleeve
|
|
| 13. |
VOE471586
|
[1] |
Screw
|
|
| 14. |
VOE13965218
|
[2] |
Screw
|
|
| |
VOE13965183
|
|
Flange screw
|
|
| |
VOE275777
|
[1] |
Oil pump kit
|
|
| |
VOE276152
|
|
Repair kit
|
|
| |
VOE276156
|
|
Repair kit
|
|
