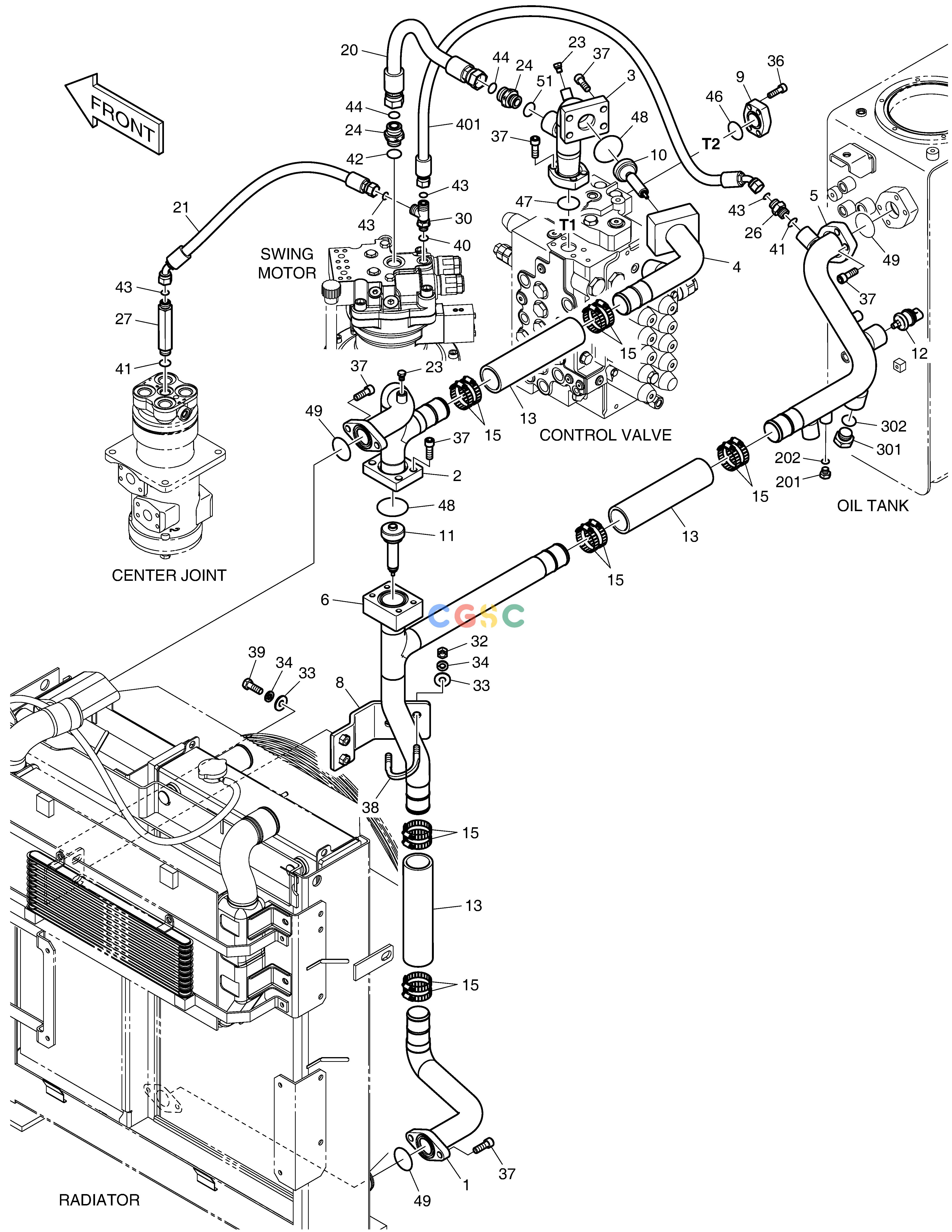

斗山零件查询OIL COOLER PIPING(2) DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
519 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-05724
|
[-] |
|
|
| 1. |
420207-00825C
|
[1] |
|
|
| 10. |
420-00304
|
[1] |
VALVE;BY-PASS
|
|
| 11. |
410128-00043
|
[1] |
VALVE,BYPASS
|
|
| 11. |
2420-1124B
|
[1] |
VALVE;BY-PASS
|
410128-00043
|
| 12. |
549-00095
|
[1] |
SWITCH;PRESSURE
|
|
| 13. |
DS2087100
|
[3] |
HOSE,OIL
|
|
| 15. |
S8500067
|
[12] |
CLAMP
|
|
| 2. |
420207-01797
|
[1] |
|
|
| 20. |
DS20111235
|
[1] |
HOSE,HYDRAULIC
|
|
| 201. |
2181-1950D1
|
[1] |
PLUG
|
|
| 202. |
S8000111
|
[1] |
O-RING
|
|
| 21. |
DS2012697
|
[1] |
HOSE ASSY,HYDRAULIC
|
|
| 23. |
2181-2047A
|
[2] |
PLUG
|
|
| 24. |
2181-2627D1
|
[2] |
ADAPTER
|
|
| 26. |
2181-4133D3
|
[1] |
ADAPTER
|
|
| 27. |
DS2232175
|
[1] |
ADAPTER
|
|
| 3. |
420207-00826A
|
[1] |
|
|
| 30. |
DS2412032
|
[1] |
TEE
|
|
| 301. |
2181-1950D15
|
[1] |
PLUG
|
|
| 302. |
S8000231
|
[1] |
O-RING
|
|
| 32. |
S4012733
|
[2] |
NUT
|
|
| 33. |
2114-1058D72
|
[4] |
WASHER
|
|
| 34. |
S5102703
|
[4] |
WASHER
|
|
| 36. |
S2212366
|
[4] |
BOLT
|
|
| 37. |
S2215366
|
[20] |
BOLT
|
|
| 38. |
120-00317
|
[1] |
BOLT
|
|
| 39. |
S0515366
|
[2] |
BOLT
|
|
| 4. |
420207-00827B
|
[1] |
|
|
| 40. |
S8000141
|
[1] |
O-RING
|
|
| 401. |
DS2012876
|
[1] |
|
|
| 41. |
S8000181
|
[2] |
O-RING
|
|
| 42. |
S8000231
|
[1] |
O-RING
|
|
| 43. |
S8030081
|
[4] |
O-RING
|
|
| 44. |
S8030121
|
[2] |
O-RING
|
|
| 46. |
2180-1026D19
|
[1] |
O-RING
|
|
| 47. |
2180-1026D23
|
[1] |
O-RING
|
|
| 48. |
2180-1026D27
|
[2] |
O-RING
|
|
| 49. |
2180-1026D28
|
[3] |
O-RING
|
|
| 5. |
420207-00823B
|
[1] |
|
|
| 51. |
S8000241
|
[1] |
O-RING
|
|
| 6. |
420207-00822B
|
[1] |
|
|
| 8. |
250127-00431B
|
[1] |
|
|
| 9. |
2181-2157D5
|
[1] |
FLANGE;COVER
|
|
