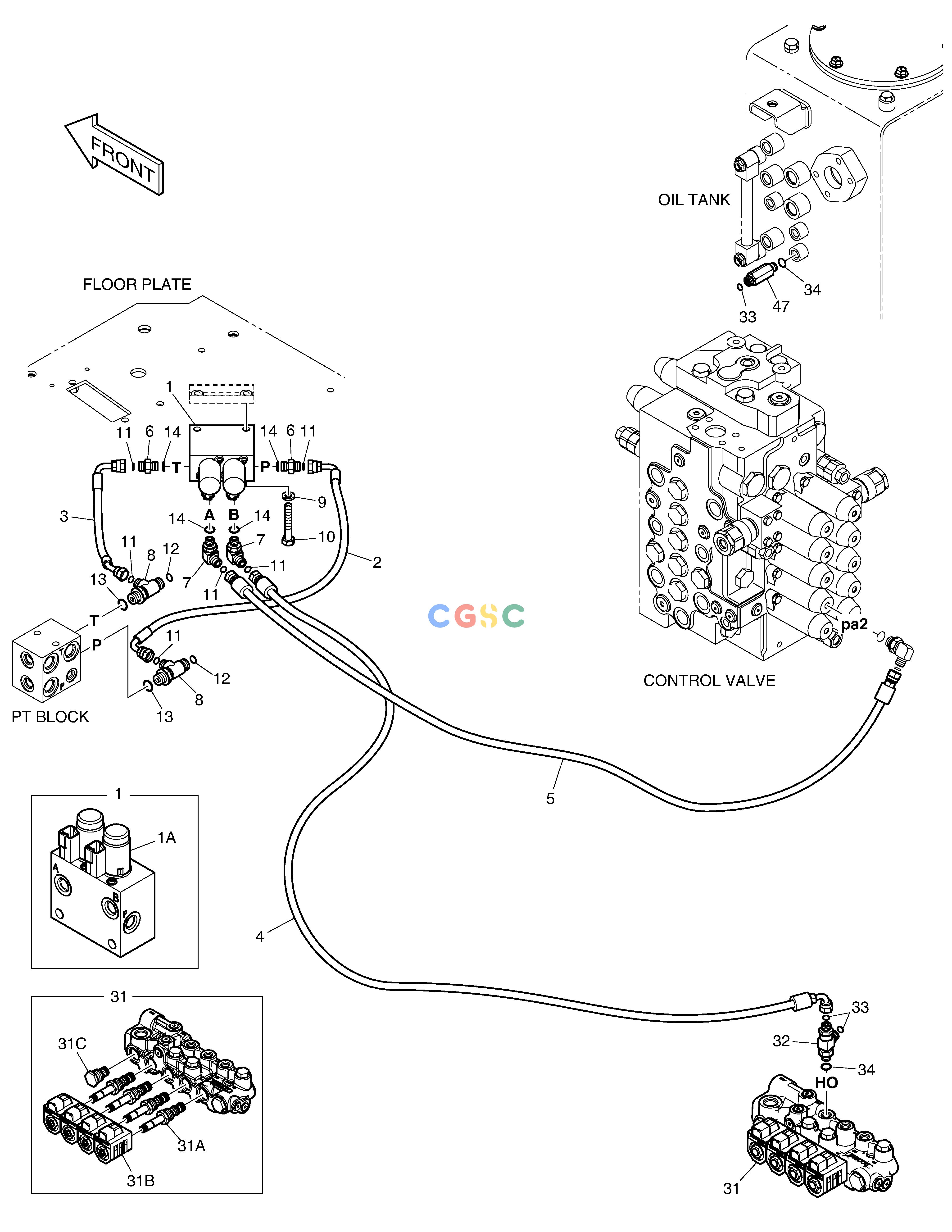

斗山零件查询PILOT PIPING - TWO WAY DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
742 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-05747B
|
[-] |
|
|
| 1. |
410116-00091
|
[1] |
|
|
| 10. |
S0558866
|
[2] |
BOLT
|
|
| 11. |
S8030041
|
[6] |
O-RING
|
|
| 12. |
S8030061
|
[2] |
O-RING
|
|
| 13. |
S8000141
|
[2] |
O-RING
|
|
| 14. |
S8000111
|
[4] |
O-RING
|
|
| 1A. |
410116-00418
|
[2] |
|
|
| 2. |
DS2123004
|
[1] |
|
|
| 3. |
DS2122002
|
[1] |
|
|
| 31. |
410135-00236
|
[1] |
|
|
| 31A. |
410207-00145
|
[4] |
SPOOL,SOLENOID
|
|
| 31B. |
300715-00038
|
[4] |
COIL 24V
|
|
| 31C. |
K9002250
|
[1] |
CHECK VALVE
|
|
| 32. |
410134-00032
|
[1] |
|
|
| 33. |
S8030041
|
[3] |
O-RING
|
|
| 34. |
S8000111
|
[2] |
O-RING
|
|
| 4. |
DS2121014
|
[1] |
|
|
| 47. |
DS2232020
|
[1] |
|
|
| 5. |
DS2119212
|
[1] |
|
|
| 6. |
2181-4133D1
|
[2] |
ADAPTER
|
|
| 7. |
2181-2815D4
|
[2] |
ELBOW
|
|
| 8. |
181-00121D4
|
[2] |
TEE
|
|
| 9. |
S5102603
|
[2] |
. WASHER
|
|
