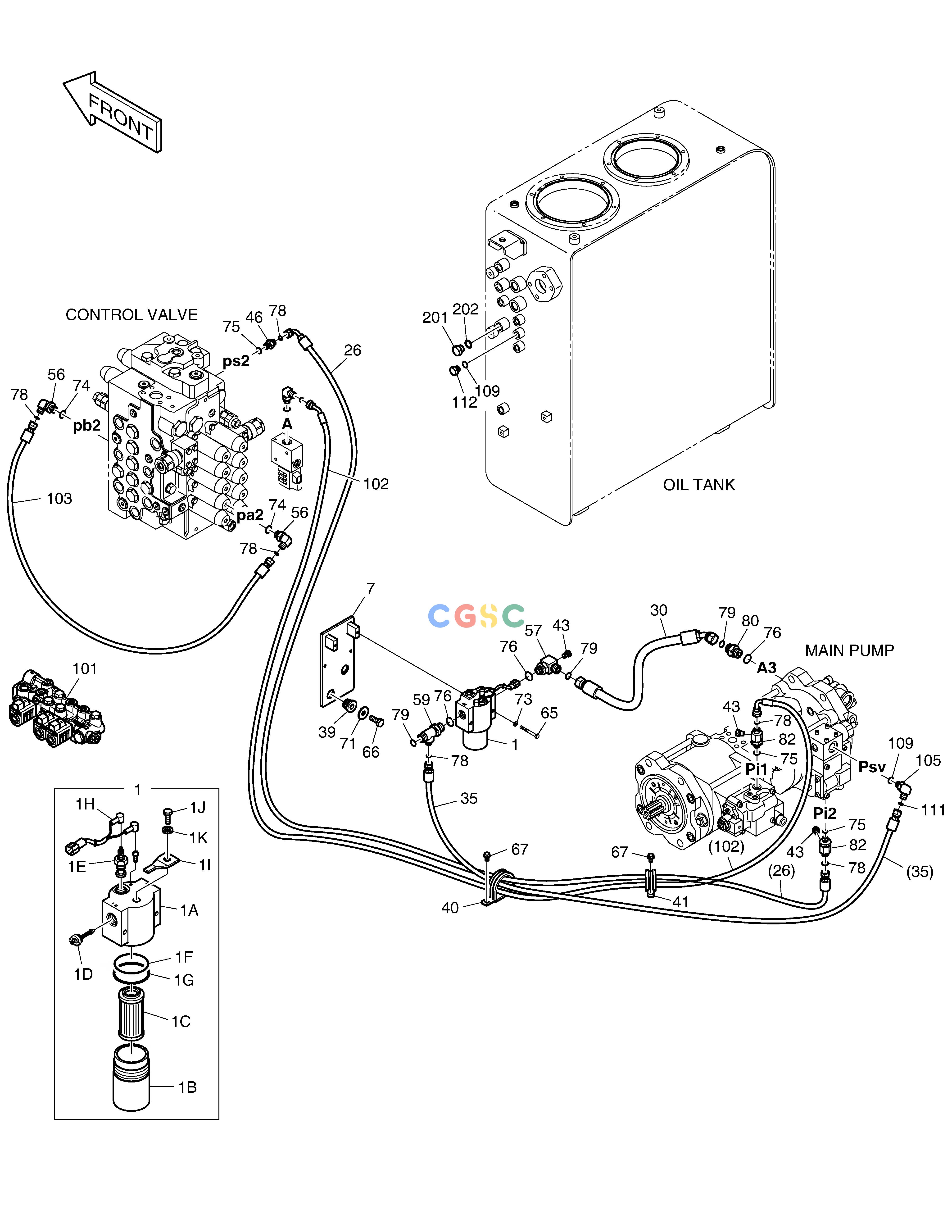

斗山零件查询PILOT PIPING(1) DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
561 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-05702
|
[-] |
|
|
| 1. |
471-00075A
|
[1] |
FILTER;PILOT
|
|
| 101. |
410135-00237
|
[1] |
|
|
| 102. |
DS2122077
|
[1] |
|
|
| 103. |
DS2119129
|
[1] |
|
|
| 105. |
2181-2815D4
|
[1] |
ELBOW
|
|
| 109. |
S8000111
|
[2] |
O-RING
|
|
| 111. |
S8030041
|
[1] |
O-RING
|
|
| 112. |
2181-1950D1
|
[1] |
PLUG
|
|
| 1A. |
NA00509
|
[1] |
. HEAD
|
|
| 1B. |
2472-7003
|
[1] |
CASE
|
|
| 1C. |
2471-1154
|
[1] |
ELEMENT;PILOT FILTER
|
|
| 1D. |
2426-1237
|
[1] |
VALVE;BY-PASS
|
|
| 1E. |
2471-1155A
|
[1] |
INDICATOR
|
|
| 1F. |
Y-3738-04
|
[1] |
O-RING
|
|
| 1G. |
Y-3738-05
|
[1] |
RING;BACK UP
|
|
| 1H. |
530-00236
|
[1] |
HARNESS;PILOT FILTER
|
|
| 1I. |
2197-1661
|
[1] |
BRACKET
|
|
| 1J. |
S0508653
|
[1] |
BOLT
|
|
| 1K. |
S5102503
|
[1] |
. WASHER
|
|
| 201. |
2181-1950D2
|
[1] |
PLUG
|
|
| 202. |
S8000141
|
[1] |
O-RING
|
|
| 26. |
DS2121186
|
[1] |
|
|
| 30. |
DS2012888
|
[1] |
|
|
| 35. |
DS2119128
|
[1] |
|
|
| 39. |
198-00016
|
[2] |
RUBBER
|
|
| 40. |
124-00208D9
|
[1] |
CLIP
|
|
| 41. |
124-00208D5
|
[1] |
CLIP
|
|
| 43. |
2181-2047A
|
[3] |
PLUG
|
|
| 46. |
2181-4133D1
|
[1] |
ADAPTER
|
|
| 56. |
2181-2815D7
|
[2] |
ELBOW
|
|
| 57. |
DS2470005
|
[1] |
|
|
| 59. |
181-00121D6
|
[1] |
|
|
| 65. |
S0553766
|
[2] |
BOLT
|
|
| 66. |
S0512266
|
[2] |
BOLT
|
|
| 67. |
K1001029
|
[2] |
BOLT
|
|
| 7. |
110413-00068
|
[1] |
|
|
| 71. |
2114-1058D10
|
[2] |
WASHER
|
|
| 73. |
S5102303
|
[2] |
. WASHER
|
|
| 74. |
S8000141
|
[2] |
O-RING
|
|
| 75. |
S8000111
|
[3] |
O-RING
|
|
| 76. |
S8000181
|
[3] |
O-RING
|
|
| 78. |
S8030041
|
[6] |
O-RING
|
|
| 79. |
S8030081
|
[3] |
O-RING
|
|
| 80. |
2181-4133D3
|
[1] |
ADAPTER
|
|
| 82. |
DS2469007
|
[2] |
|
|
