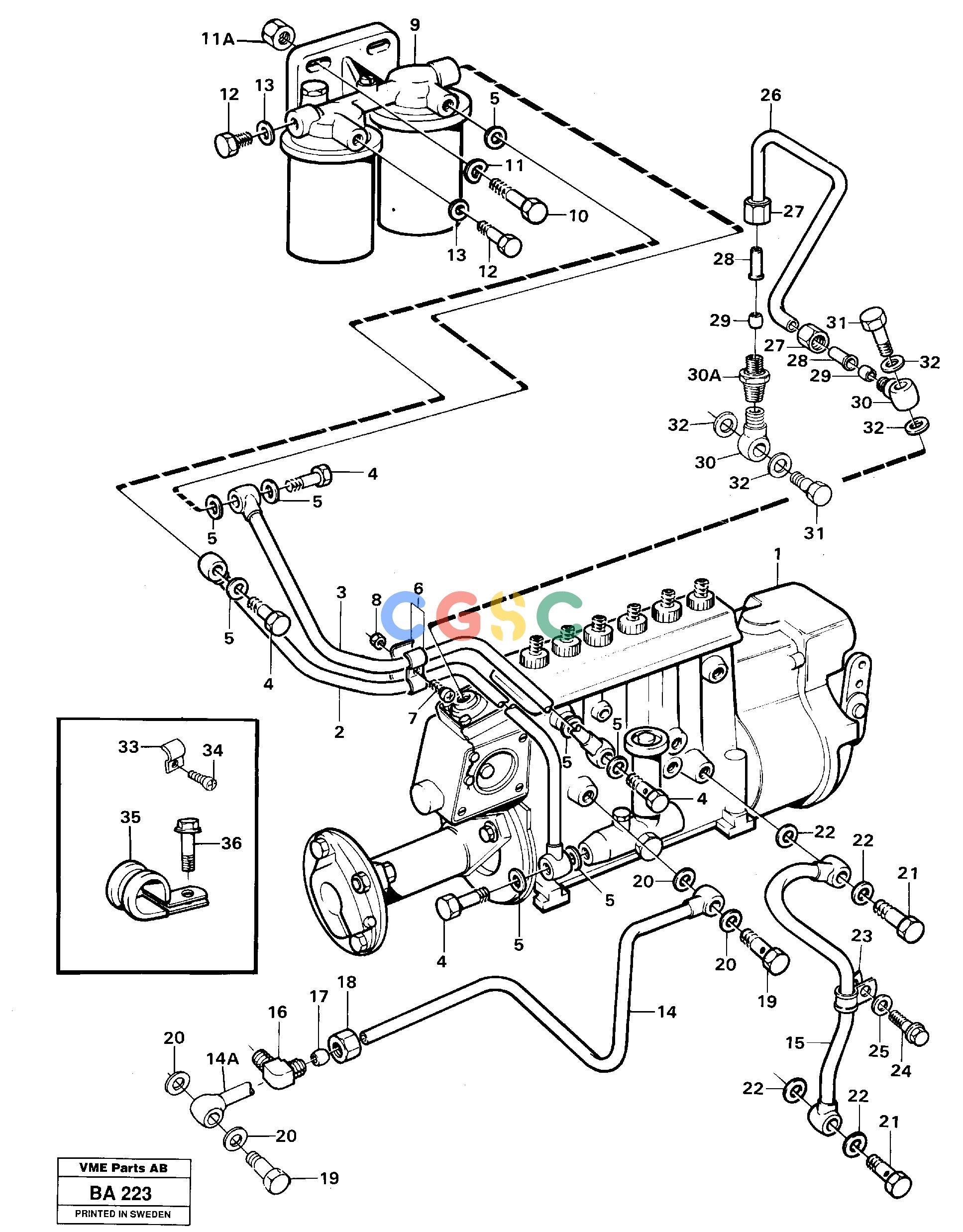

沃尔沃零件查询A20 Fuel pipes, fuel injection pump, fuel filterVOLVO BM A20 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
750 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Injcection pump
|
|
| 2. |
VOE471484
|
[1] |
Fuel pipe
|
|
| 3. |
VOE471603
|
[1] |
Fuel pipe
|
|
| 4. |
VOE60113509
|
[6] |
Hollow screw
|
|
| 5. |
VOE13969011
|
[12] |
Gasket
|
|
| 6. |
VOE404279
|
[4] |
Clamp
|
|
| 7. |
VOE956095
|
[2] |
Cross recessed screw
|
|
| 8. |
VOE13955781
|
[2] |
Nut
|
|
| 9. |
|
[1] |
Fuel filter
|
|
| 10. |
VOE13965185
|
[2] |
Screw
|
|
| 11. |
VOE941908
|
[2] |
Spring washer
|
|
| 11A. |
VOE971071
|
[2] |
Hexagon nut
|
|
| 12. |
VOE960630
|
[3] |
Plug
|
|
| 13. |
VOE13969011
|
[3] |
Gasket
|
|
| 14. |
VOE471608
|
[1] |
Pipe
|
ENG - 60206
|
| 14A. |
VOE477986
|
[1] |
Oil feed pipe
|
ENG 60207 - 64646
|
| |
VOE477986
|
[1] |
Oil feed pipe
|
ENG 64647 -
|
| 15. |
VOE471609
|
[1] |
Pipe
|
|
| 16. |
VOE329638
|
[1] |
Elbow nipple
|
ENG - 60206
|
| 17. |
VOE954364
|
[1] |
Ferrule
|
ENG - 60206
|
| 18. |
VOE954356
|
[1] |
Fitting nut
|
ENG - 60206
|
| 19. |
VOE7048634
|
[1] |
Hollow screw
|
ENG - 60206
|
| |
VOE7048634
|
[2] |
Hollow screw
|
ENG 60207 - 64646
|
| |
VOE968178
|
[2] |
Hollow screw
|
ENG 64647 -
|
| 20. |
VOE13947281
|
[2] |
Gasket
|
ENG - 60206
|
| |
VOE13947281
|
[4] |
Gasket
|
ENG 60207 - 64646
|
| |
VOE13947281
|
[2] |
Gasket
|
ENG 64647 -
|
| |
VOE13947282
|
[2] |
Gasket
|
ENG 64647 -
|
| 21. |
VOE60113509
|
[2] |
Hollow screw
|
|
| 22. |
VOE13969011
|
[4] |
Gasket
|
|
| 23. |
VOE990732
|
[1] |
Clamp
|
|
| |
VOE18387
|
[1] |
Clamp
|
|
| 24. |
VOE13944926
|
[1] |
Screw
|
M8,
|
| |
VOE946471
|
[1] |
Flange screw
|
M10
|
| 25. |
VOE190509
|
[2] |
Washer
|
|
| 26. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L=650
|
| |
VOE13945460
|
[REQ] |
Plastic pipe
|
L=760,
|
| 27. |
VOE954356
|
[2] |
Fitting nut
|
|
| 28. |
VOE944717
|
[2] |
Sleeve
|
|
| 29. |
VOE954364
|
[2] |
Ferrule
|
|
| 30. |
VOE13945417
|
[2] |
Banjo nipple
|
STD,
|
| |
VOE13945417
|
[1] |
Banjo nipple
|
|
| 30A. |
VOE13954378
|
[1] |
Nipple
|
|
| 31. |
VOE968178
|
[2] |
Hollow screw
|
|
| |
VOE968178
|
[1] |
Hollow screw
|
|
| 32. |
VOE13947282
|
[4] |
Gasket
|
STD,
|
| |
VOE13947282
|
[2] |
Gasket
|
|
| 33. |
VOE940374
|
[2] |
Clamp
|
|
| 34. |
VOE947107
|
[2] |
Flange screw
|
|
| 35. |
VOE942400
|
[1] |
Clamp
|
|
| 36. |
VOE946440
|
[2] |
Flange screw
|
|
| |
VOE946440
|
[1] |
Flange screw
|
|
