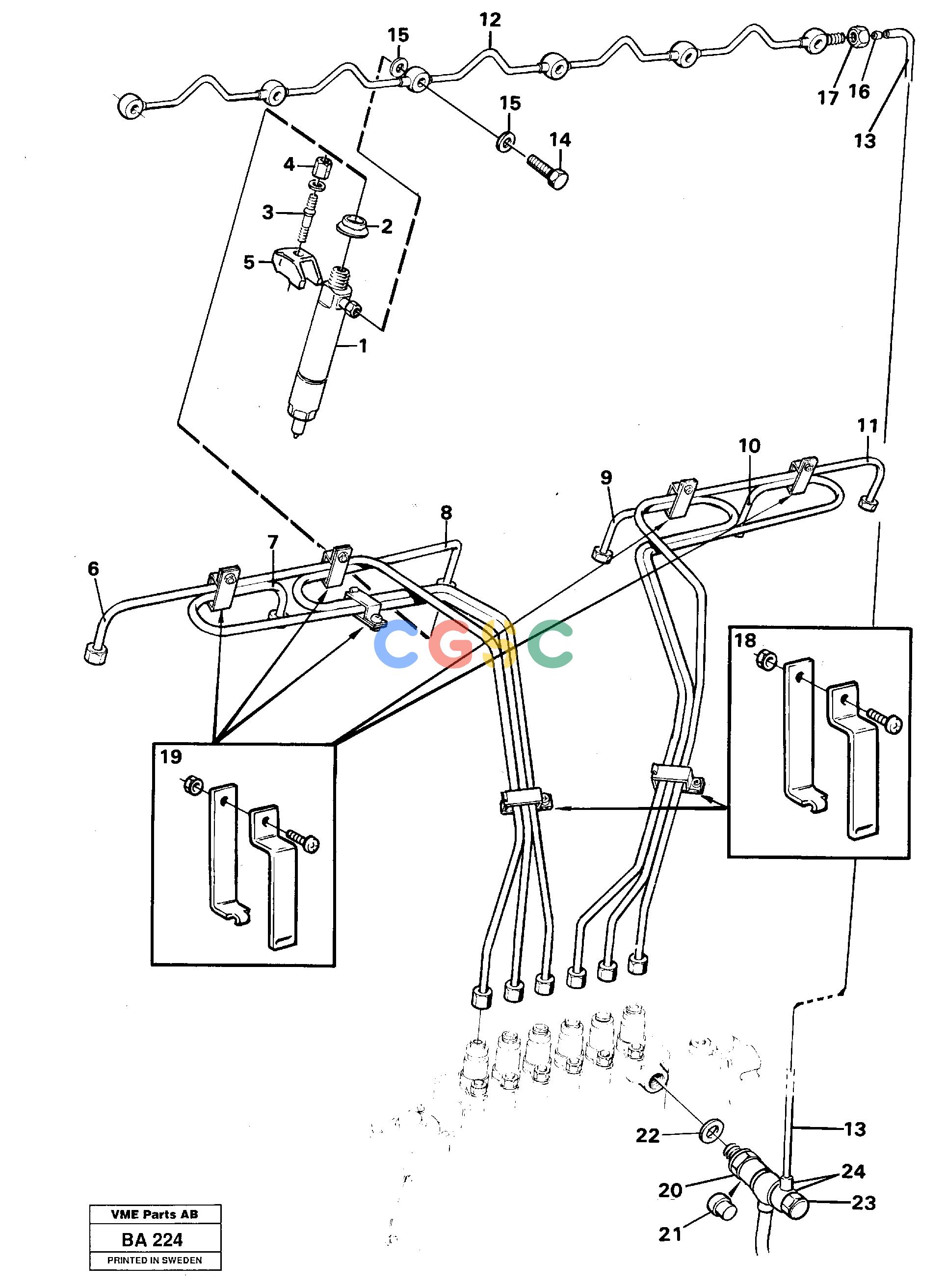

沃尔沃零件查询A20 Fuel pipes, injectorsVOLVO BM A20 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
946 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE469797
|
[6] |
Nozzle retainer
|
|
| 6. |
VOE471720
|
[1] |
Delivery pipe
|
|
| 7. |
VOE471721
|
[1] |
Delivery pipe
|
|
| 8. |
VOE471722
|
[1] |
Delivery pipe
|
|
| 9. |
VOE421492
|
[1] |
Delivery pipe
|
|
| 1. |
|
[6] |
Injector
|
|
| 10. |
VOE421493
|
[1] |
Delivery pipe
|
|
| 11. |
VOE421494
|
[1] |
Delivery pipe
|
|
| 12. |
VOE471605
|
[1] |
Leak-off line
|
|
| 13. |
VOE848523
|
[1] |
Leak-off line
|
|
| 14. |
VOE7074033
|
[6] |
Hollow screw
|
|
| 15. |
VOE947620
|
[12] |
Gasket
|
|
| 16. |
VOE956966
|
[1] |
Ferrule
|
|
| 17. |
VOE956980
|
[1] |
Fitting nut
|
|
| 18. |
VOE8194352
|
[2] |
Clamp
|
|
| 19. |
VOE8194351
|
[5] |
Clamp
|
|
| |
|
|
None
|
|
| 2. |
VOE469455
|
[6] |
Sealing ring
|
|
| 20. |
VOE7035096
|
[1] |
Overflow valve
|
E PROD
|
| 21. |
VOE238614
|
[1] |
Valve
|
|
| |
|
|
None
|
|
| 20. |
VOE479775
|
[1] |
Overflow valve
|
L PROD
|
| |
|
|
None
|
|
| 22. |
VOE13969011
|
[1] |
Gasket
|
|
| 23. |
VOE7074033
|
[1] |
Hollow screw
|
|
| 24. |
VOE947620
|
[2] |
Gasket
|
|
| 3. |
VOE1545022
|
[6] |
Stud
|
|
| 4. |
VOE13971095
|
[6] |
Flange nut
|
|
