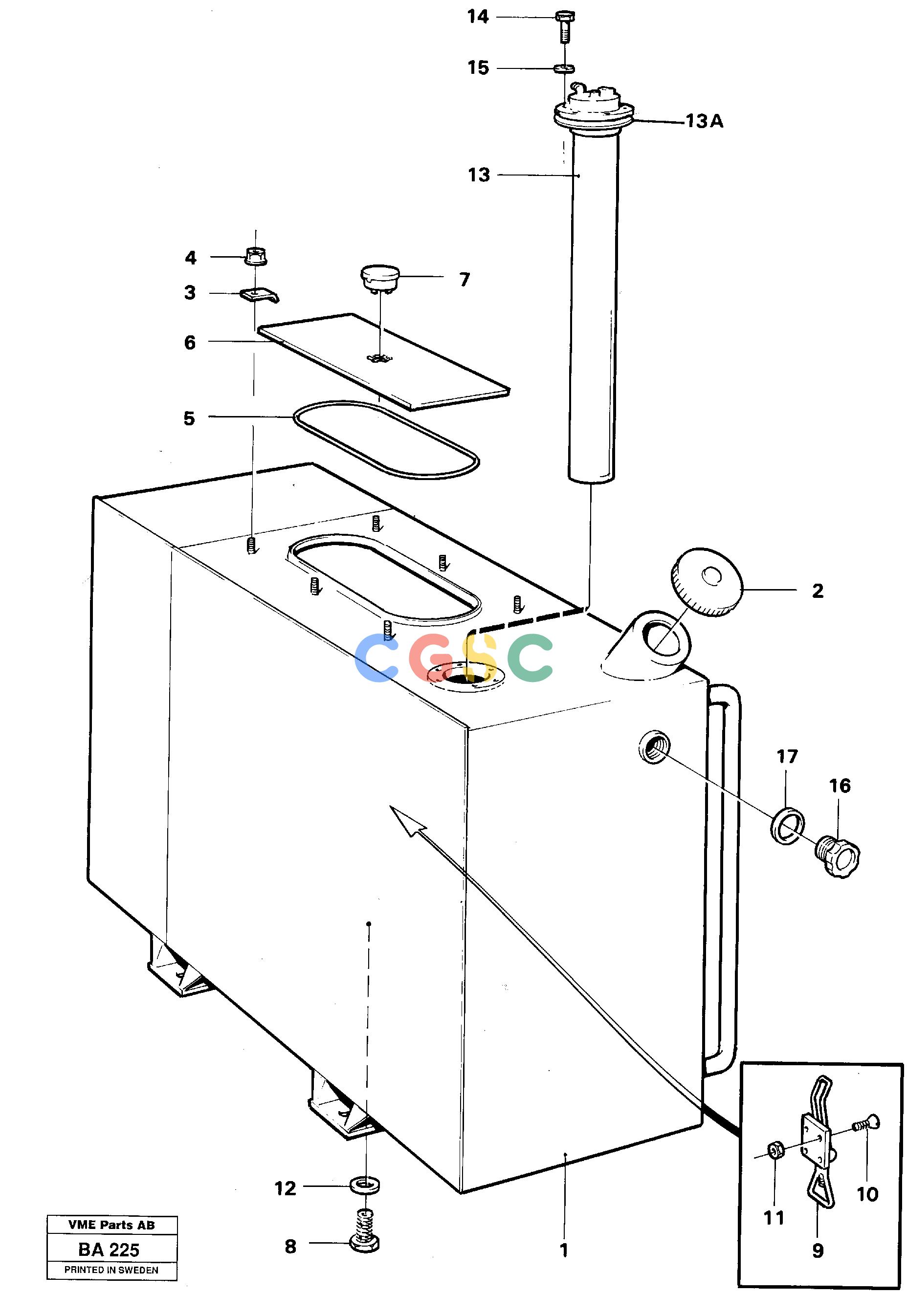

沃尔沃零件查询A20 Fuel tankVOLVO BM A20 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
674 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE6626911
|
[0001] |
Sealing ring
|
|
| 6. |
VOE4861822
|
[0001] |
Cover
|
|
| 7. |
VOE4940398
|
[0001] |
Cover
|
|
| 8. |
VOE4948183
|
[0001] |
Plug
|
|
| 9. |
VOE4942021
|
[0002] |
Eccentric lock
|
SER NO - 1563
|
| |
VOE4942021
|
[0001] |
Eccentric lock
|
SER NO 1564 -
|
| |
VOE4942540
|
[0001] |
Fuel tank
|
SER NO - 1563
|
| 10. |
VOE956293
|
[0008] |
Cross recessed sunk screw
|
SER NO - 1563
|
| |
VOE956293
|
[0004] |
Cross recessed sunk screw
|
SER NO 1564 -
|
| 11. |
VOE13965483
|
[0008] |
Nut
|
SER NO - 1563
|
| |
VOE13965483
|
[0004] |
Nut
|
SER NO 1564 -
|
| 12. |
VOE957184
|
[0001] |
Gasket
|
|
| |
VOE11053955
|
[0001] |
Fuel tank
|
SER NO 1564 -
|
| 13. |
VOE4803666
|
[0001] |
Combined tank unit
|
|
| 13A. |
VOE4708245
|
[0001] |
Gasket
|
|
| 1. |
|
[0001] |
Fuel tank
|
|
| 14. |
VOE955273
|
[0006] |
Hexagon screw
|
|
| 15. |
VOE7011991
|
[0006] |
Gasket
|
|
| 16. |
VOE11063114
|
[0001] |
Level Inspection Glass
|
|
| 17. |
VOE349477
|
[0001] |
Gasket
|
|
| 2. |
VOE1189577
|
[0001] |
Filler cap
|
LÅSBART / LOCKABLE
|
| 3. |
VOE11018449
|
[0006] |
Clamp
|
|
| 4. |
VOE963106
|
[0006] |
Lock nut
|
|
