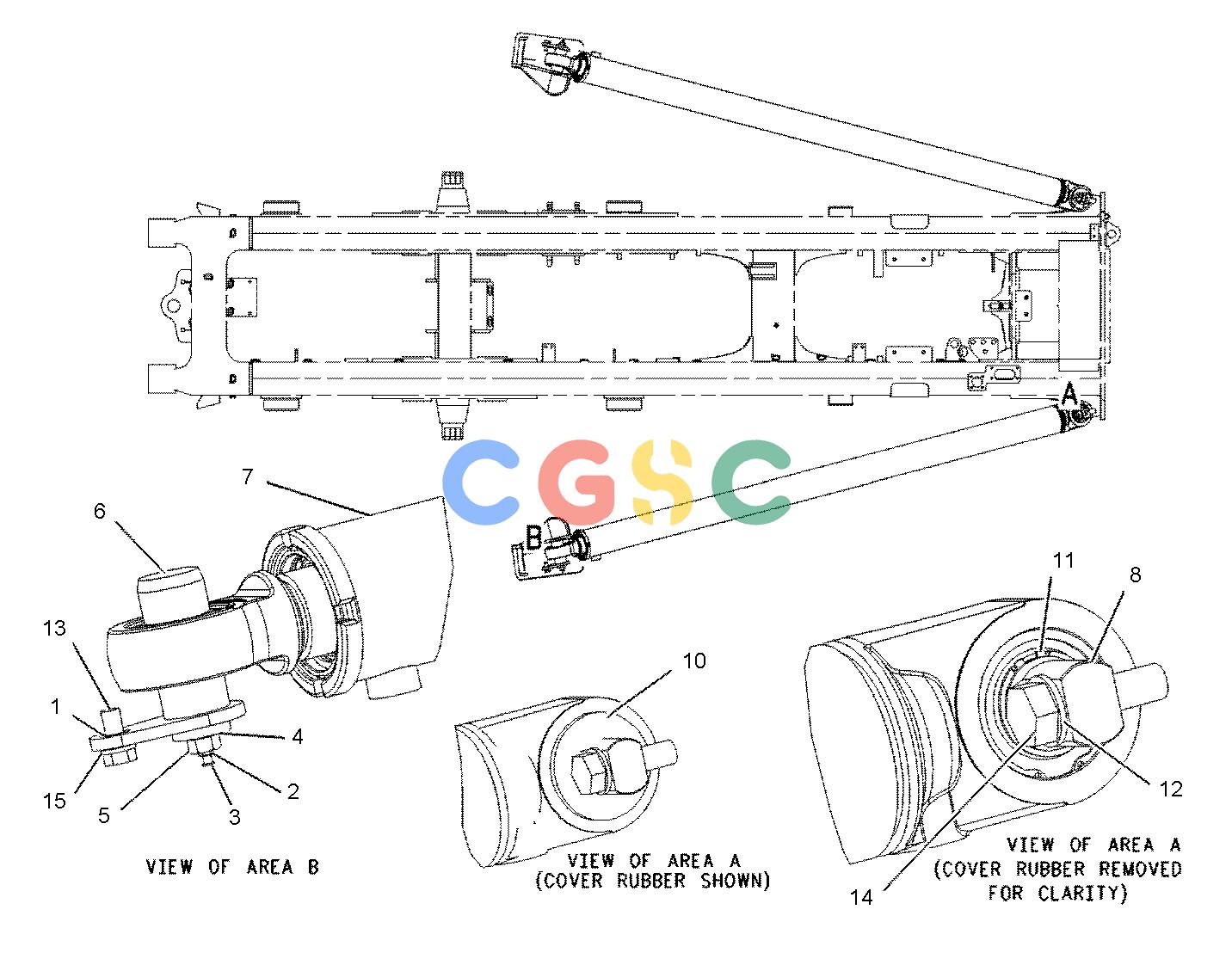

卡特零件查询（725） 152-2702: CYLINDER & MTG GP-HOIST
广数供应链运营团队, 14 02月, 2025，浏览：
684 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2U-9204 | [2] | SPACER(17X25.4X11.5-MM THK) | |
| 2. | 3B-8489 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| 3. | 5U-7151 | [2] | CAP-GREASE | |
| 4. | 6V-0406 | [2] | SEAL-BONDED | |
| 5. | 124-6696 | [2] | ADAPTER | |
| | 5C-6266 | [1] | BOLT(5/8-11X1-IN) | |
| 6. | 127-1736 | [2] | PIN AS | |
| 7. | 241-4071Y | [2] | CYLINDER GP-HOIST | |
| 8. | 150-6553 | [2] | PIN | |
| 9. | 164-8408 | [4] | PLATE-SPACER | |
| 10. | 166-7871 | [2] | WASHER-RUBBER(52X100X8-MM THK) | |
| 11. | 8C-2949 | [2] | RING-RETAINING | |
| 12. | 8T-4167 | [4] | WASHER-HARD(26X44X4-MM THK) | |
| 13. | 8T-4779M | [2] | BOLT(M16X2X35-MM) | |
| 14. | 8T-5878M | [4] | BOLT(M24X3X80-MM) | |
| 15. | 9X-8257 | [2] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
