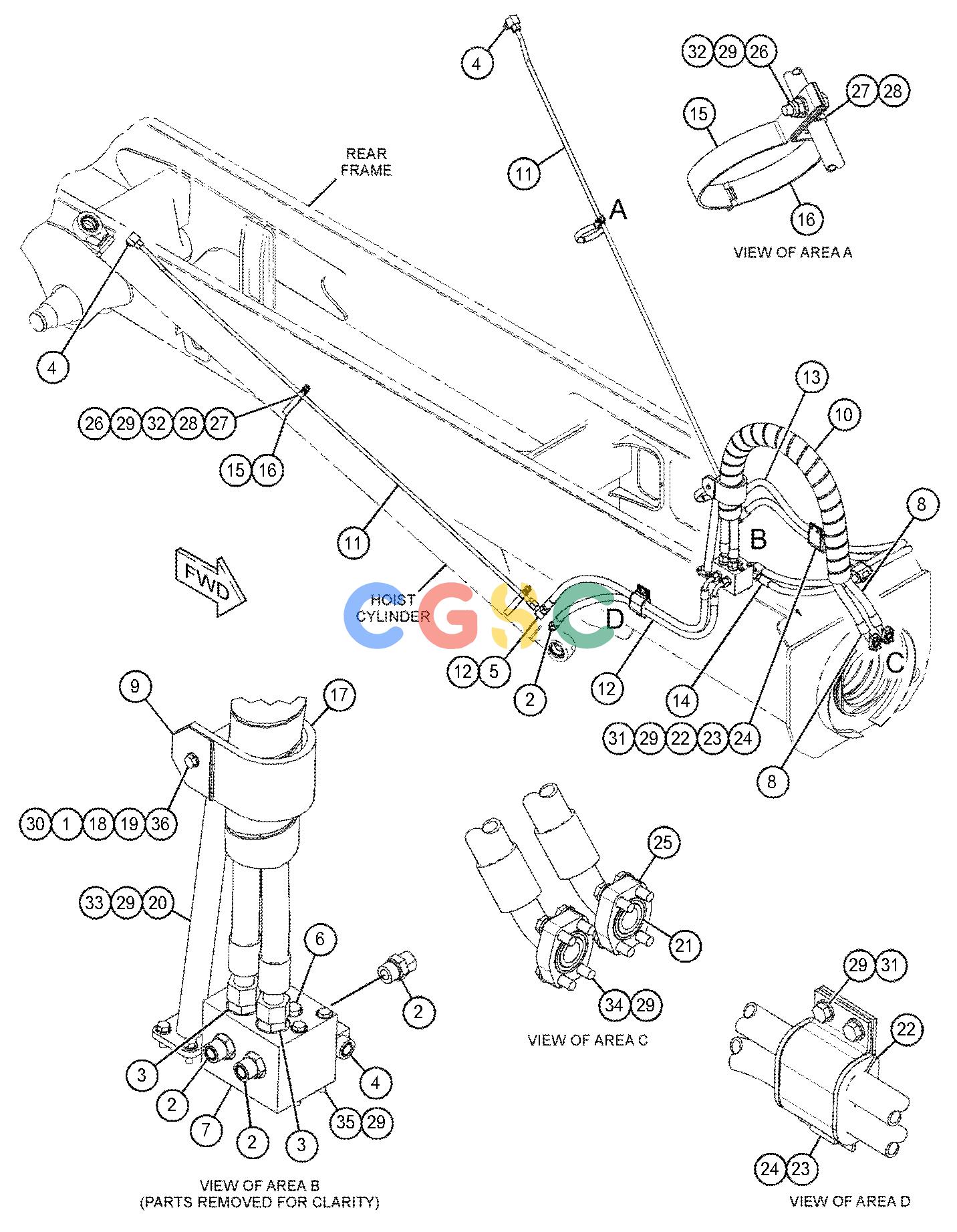

卡特零件查询（725） 207-4729: LINES GP-HOIST
广数供应链运营团队, 14 02月, 2025，浏览：
129 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4I-5480 | [2] | WASHER(11X72X3-MM THK) | |
| 2. | 148-8327 | [5] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8637 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 3. | 148-8335 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-8635 | [1] | CONNECTOR | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 4. | 148-8347 | [3] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 5. | 148-8392 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 6V-9853 | [1] | ELBOW | |
| 6. | 148-8411 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 7. | | [1] | MANIFOLD |
| 8. | 176-3642I | [2] | HOSE AS | |
| 9. | 191-5216 | [2] | PLATE-RETAINER | |
| 10. | 204-6362 | [1] | GUARD-HOSE | |
| 11. | 207-5194 | [2] | TUBE AS | |
| 12. | 207-5981I | [2] | HOSE AS | |
| 13. | 207-5983I | [1] | HOSE AS | |
| 14. | 207-5984I | [1] | HOSE AS | |
| 15. | 214-9433 | [4] | CLAMP | |
| 16. | 214-9435 | [4] | CLAMP | |
| 17. | 217-7699 | [1] | STRIP-RUBBER | |
| 18. | 218-0054 | [1] | SPACER(11X25X100-MM THK) | |
| 19. | 218-0055 | [2] | SPACER(10.5X25.4X9.5-MM THK) | |
| 20. | 218-2549 | [1] | SUPPORT AS | |
| | 7T-1099 | [1] | LINK | |
| 21. | 4J-0520 | [2] | SEAL-O-RING | |
| 22. | 7G-3832 | [3] | GROMMET | |
| 23. | 7G-3833 | [3] | CLIP(TAB) | |
| 24. | 7G-3834 | [3] | CLIP(SLOT) | |
| 25. | 8C-3206 | [4] | FLANGE-HALF | |
| 26. | 8T-0389M | [4] | LOCKNUT(M10X1.5-THD) | |
| 27. | 8T-1887 | [4] | CLIP(SLOT) | |
| 28. | 8T-1888 | [4] | CLIP(TAB) | |
| 29. | 8T-4121 | [32] | WASHER-HARD(11X21X2.5-MM THK) | |
| 30. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 31. | 8T-4137M | [6] | BOLT(M10X1.5X20-MM) | |
| 32. | 8T-4186M | [4] | BOLT(M10X1.5X40-MM) | |
| 33. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 34. | 8T-4196M | [8] | BOLT(M10X1.5X35-MM) | |
| 35. | 8T-5436M | [4] | BOLT(M10X1.5X130-MM) | |
| 36. | 8T-6408M | [1] | BOLT(M10X1.5X160-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
