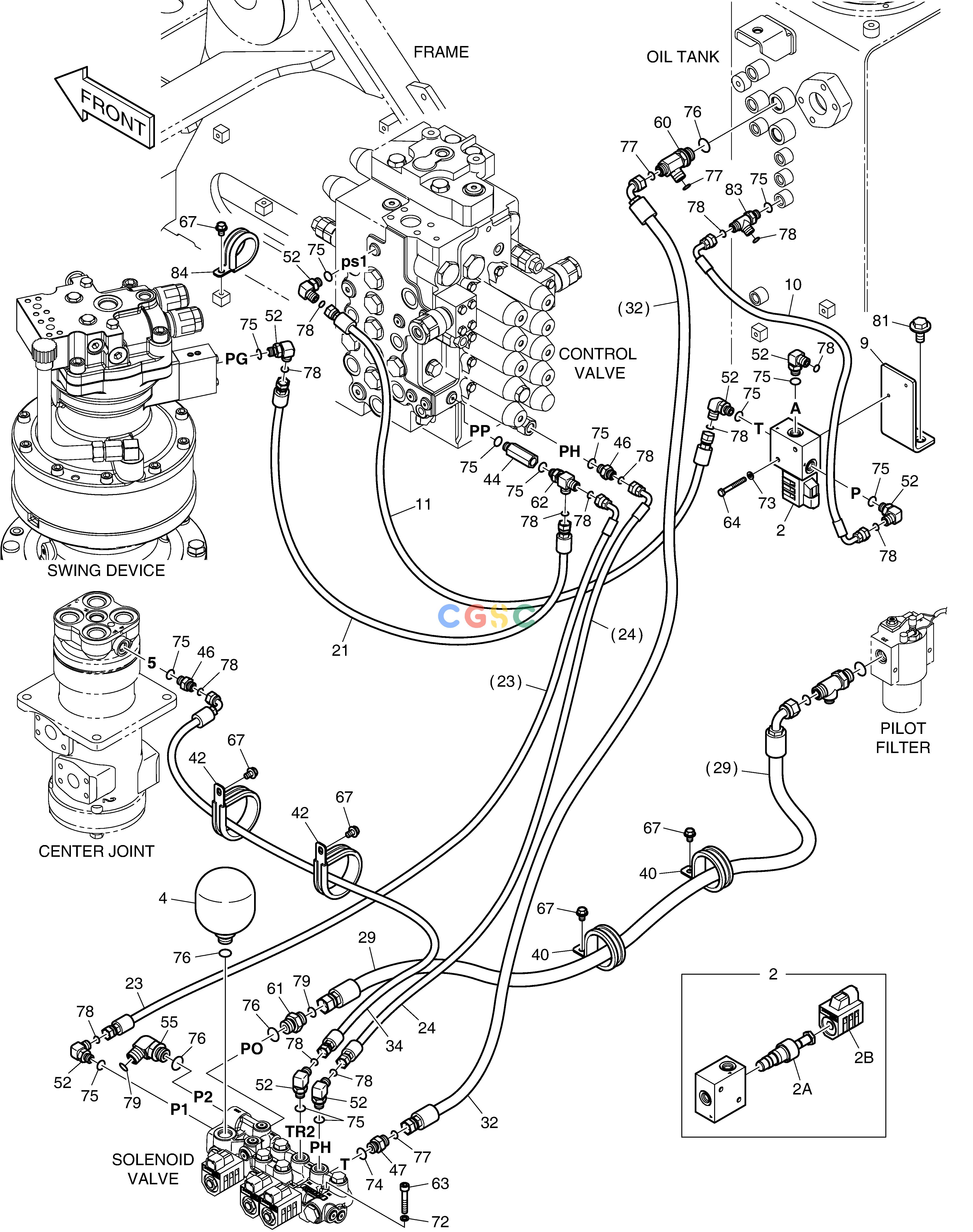

斗山零件查询PILOT PIPING(2) DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
153 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-05702
|
[-] |
|
|
| 10. |
DS2123127
|
[1] |
|
|
| 11. |
DS2119089
|
[1] |
|
|
| 2. |
410135-00239
|
[1] |
|
|
| 21. |
DS2119197
|
[1] |
|
|
| 23. |
DS2121010
|
[1] |
|
|
| 24. |
DS2121254
|
[1] |
|
|
| 29. |
DS20131968
|
[1] |
|
|
| 2A. |
410207-00145
|
[1] |
SPOOL,SOLENOID
|
|
| 2B. |
300715-00038
|
[1] |
COIL 24V
|
|
| 32. |
DS2121255
|
[1] |
|
|
| 34. |
DS2121103
|
[1] |
|
|
| 4. |
2460-9057A
|
[1] |
ACCUMULATOR
|
|
| 40. |
124-00208D9
|
[2] |
CLIP
|
|
| 42. |
124-00208D8
|
[2] |
CLIP
|
|
| 44. |
DS2242022
|
[1] |
ADAPTER
|
|
| 46. |
2181-4133D1
|
[2] |
ADAPTER
|
|
| 47. |
2181-4133D2
|
[1] |
ADAPTER
|
|
| 52. |
2181-2815D4
|
[8] |
ELBOW
|
|
| 55. |
2181-2815D3
|
[1] |
ELBOW
|
|
| 60. |
DS2412021
|
[1] |
TEE
|
|
| 61. |
2181-4133D3
|
[1] |
ADAPTER
|
|
| 62. |
430225-00027
|
[1] |
|
|
| 63. |
S2209566
|
[2] |
. BOLT;SOCKET M8X1.25X45
|
|
| 64. |
S0553666
|
[2] |
BOLT
|
|
| 67. |
K1001029
|
[5] |
BOLT
|
|
| 72. |
S5110503
|
[2] |
WASHER
|
|
| 73. |
S5102303
|
[2] |
. WASHER
|
|
| 74. |
S8000141
|
[1] |
O-RING
|
|
| 75. |
S8000111
|
[13] |
O-RING
|
|
| 76. |
S8000181
|
[4] |
O-RING
|
|
| 77. |
S8030061
|
[3] |
O-RING
|
|
| 78. |
S8030041
|
[14] |
O-RING
|
|
| 79. |
S8030081
|
[2] |
O-RING
|
|
| 81. |
DS0025025
|
[2] |
BOLT
|
|
| 83. |
181-00121D1
|
[1] |
TEE
|
|
| 84. |
124-00208D7
|
[1] |
CLIP
|
|
| 9. |
110425-00148B
|
[1] |
|
|
