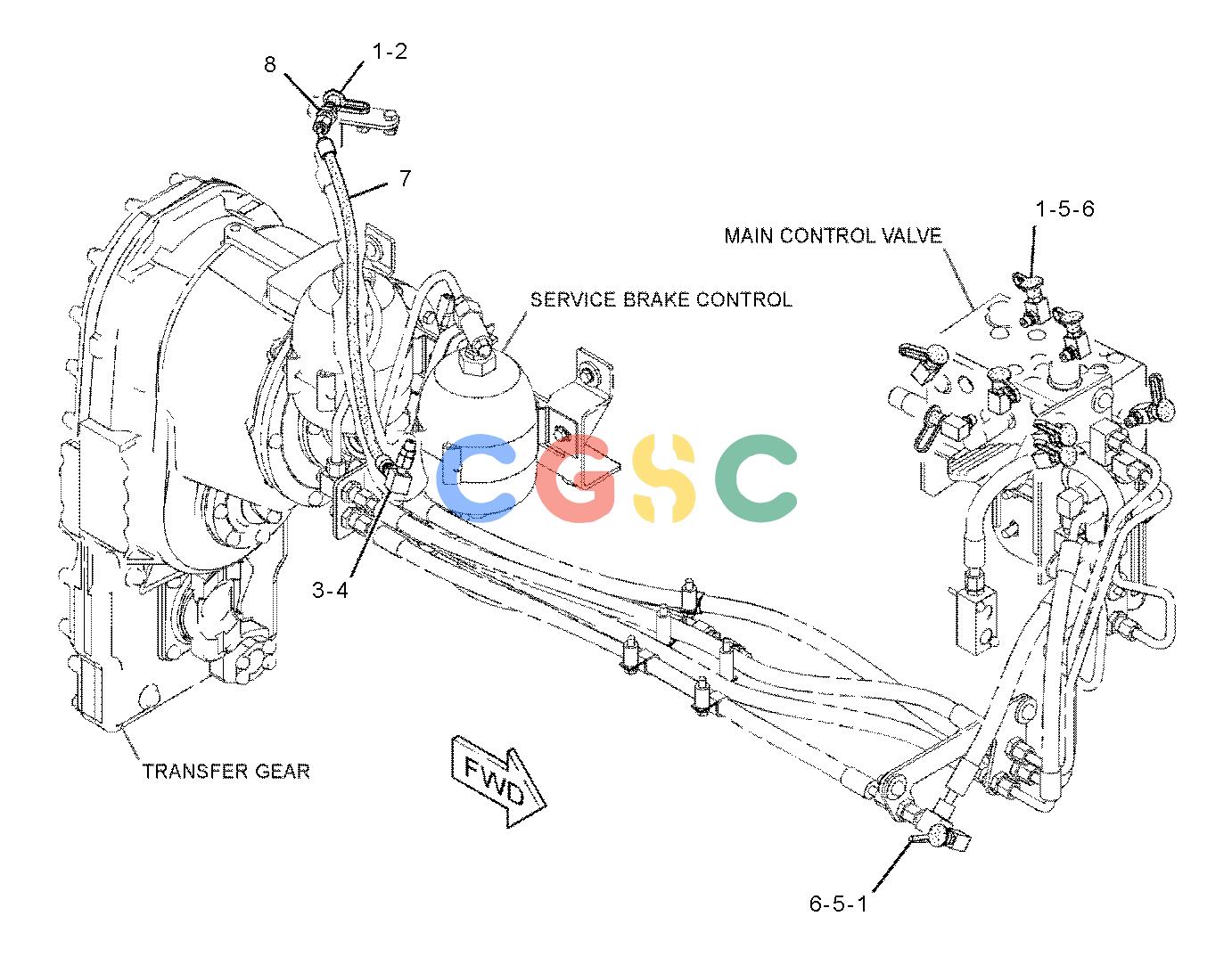

卡特零件查询（725） 296-1053: LINES GP-PRESSURE TEST
广数供应链运营团队, 14 02月, 2025，浏览：
972 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0852 | [10] | CAP-DUST | |
| 2. | 121-0530 | [1] | FITTING AS-HYDRAULIC(QUICK DISCONNECT) | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 3. | 148-8336 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 4. | 148-8367 | [1] | ELBOW AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9850 | [1] | ELBOW | |
| 5. | 150-3065 | [9] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-0484 | [1] | ELBOW | |
| 6. | 164-5567 | [9] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| 7. | 298-2330I | [1] | HOSE AS | |
| 8. | 6V-9168 | [1] | NUT(11/16-16-THD) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
