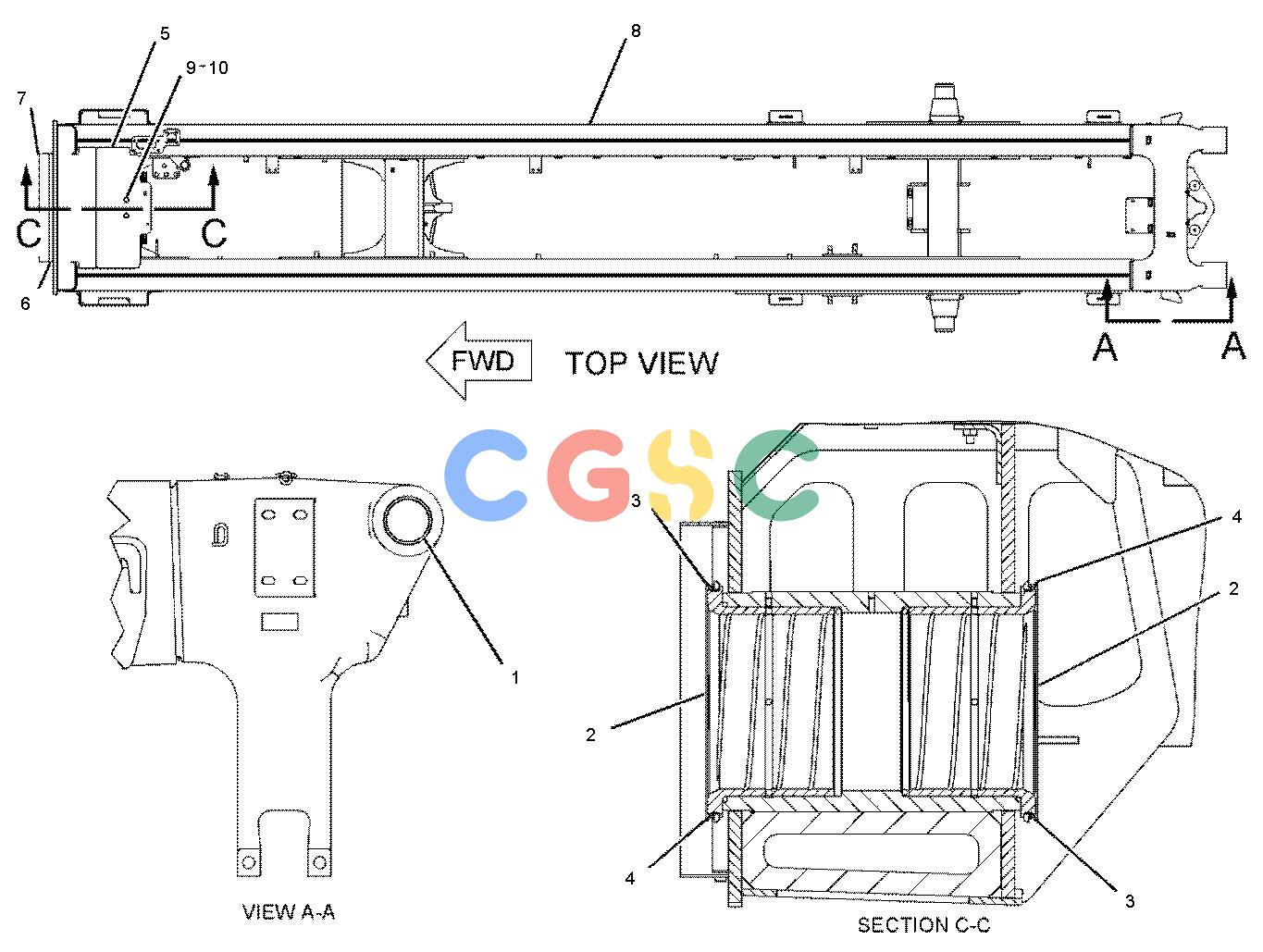

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 142-0050 | [2] | BUSHING | |
| 2. | 159-5728 | [2] | BUSHING | |
| 3. | 171-4465 | [2] | SEAL | |
| 4. | 173-2479 | [2] | RING-RETAINING | |
| 5. | 176-9710 | [1] | COVER AS | |
| 6. | 189-2908 | [1] | CLAMP AS-BAND | |
| 7. | 189-2909 | [1] | DEFLECTOR | |
| 8. | 196-9229 | [1] | FRAME AS-REAR | |
| 9. | 8T-4183M | [2] | BOLT(M12X1.75X40-MM) | |
| 10. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| M | METRIC PART | |||
