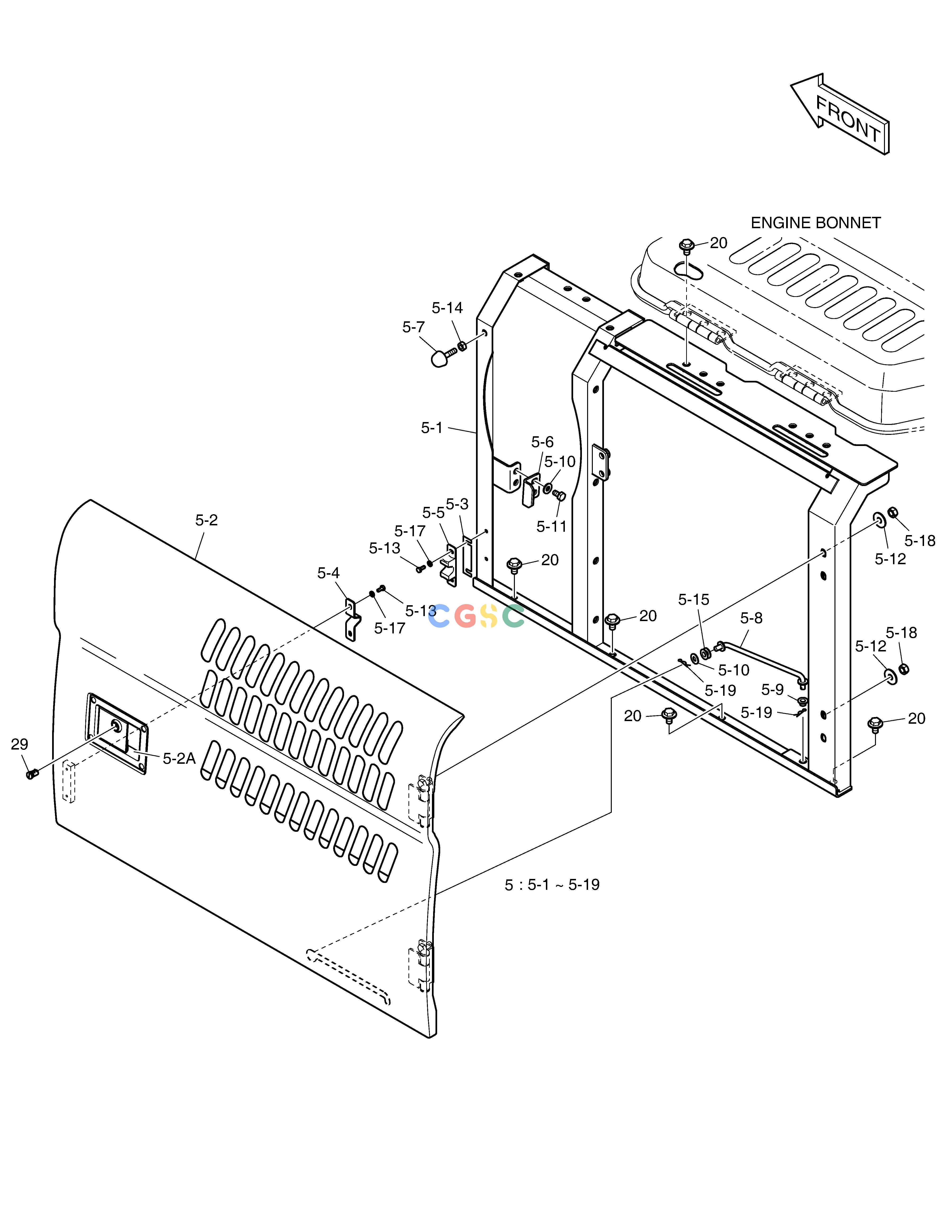

斗山零件查询SIDE DOOR - L.H DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
778 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110508-01965
|
[-] |
|
|
| 20. |
DS0025015
|
[10] |
BOLT
|
|
| 29. |
K1004630
|
[1] |
CYLINDER;KEY
|
|
| 5. |
110982-00356C
|
[1] |
|
|
| 5-1. |
110958-00602C
|
[1] |
|
|
| 5-10. |
2114-1058D45
|
[3] |
. WASHER
|
|
| 5-11. |
S0511866
|
[2] |
BOLT
|
|
| 5-12. |
2114-1058D30
|
[4] |
. WASHER
|
|
| 5-13. |
S0504666
|
[4] |
BOLT
|
|
| 5-14. |
S4012633
|
[1] |
NUT
|
|
| 5-15. |
K1008335
|
[1] |
. BUSHING
|
|
| 5-17. |
S5010313
|
[4] |
WASHER
|
|
| 5-18. |
S4012733
|
[4] |
NUT
|
|
| 5-19. |
2705-9002
|
[2] |
PIN
|
|
| 5-2. |
110982-00298A
|
[1] |
|
|
| 5-2A. |
125-00035A
|
[1] |
LOCK
|
|
| 5-3. |
110947-00027
|
[1] |
. SHIM
|
|
| 5-4. |
250201-00028
|
[1] |
. PLATE
|
|
| 5-5. |
110956-00002A
|
[1] |
. STOPPER
|
|
| 5-6. |
621-02726A
|
[1] |
. PLATE,LOCK
|
|
| 5-7. |
K1001260A
|
[1] |
STOPPER
|
|
| 5-8. |
623-00074B
|
[1] |
. STAY ASSY(R.H)
|
|
| 5-9. |
K1000602
|
[1] |
. BUSHING
|
|
