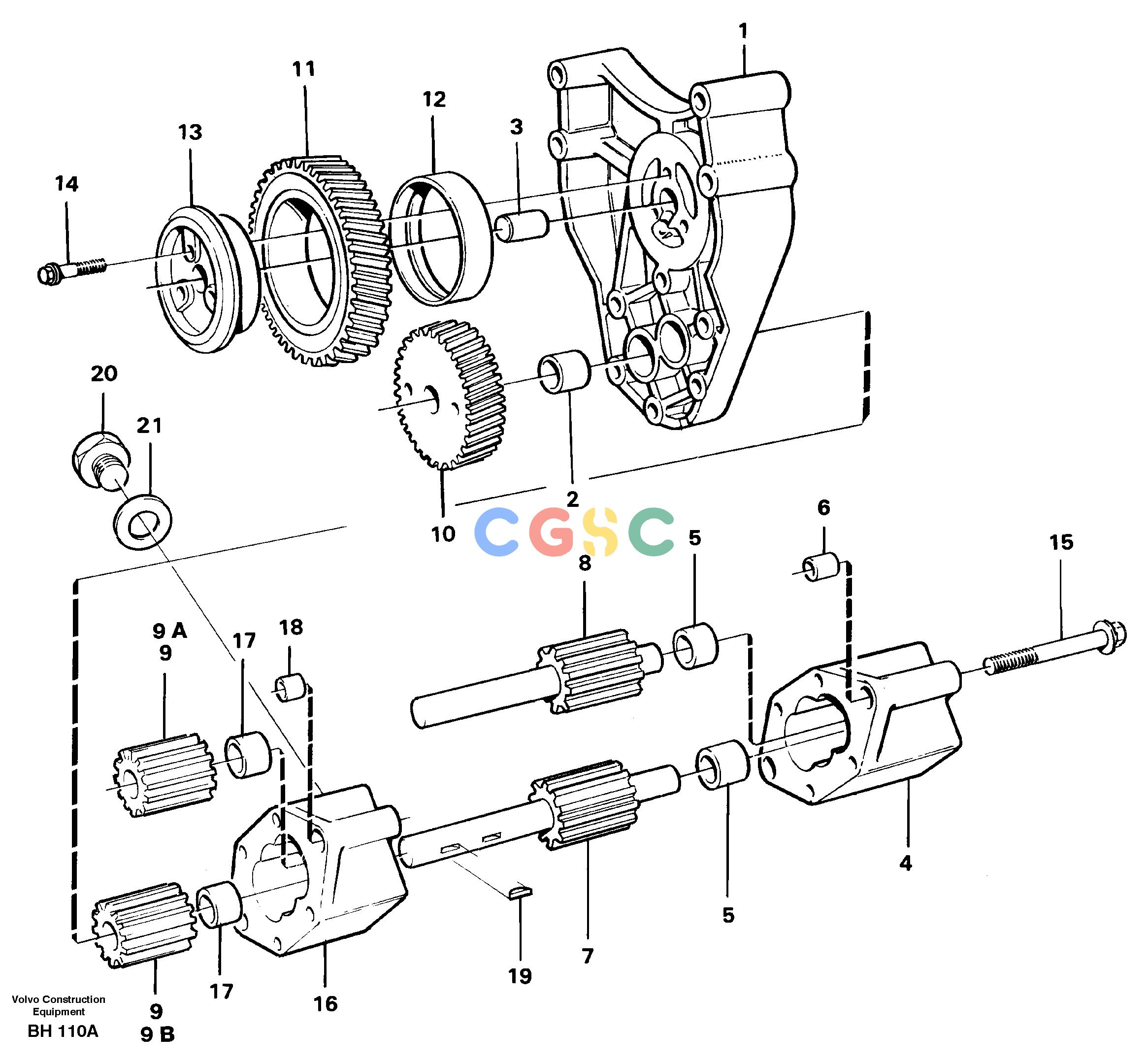

沃尔沃零件查询A20C VOLVO BM Oil pumpVOLVO BM A20C SER NO - 305111030633-11032844NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
234 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE11030633
|
[1] |
Oil pump
|
ENG - 97292
|
| |
VOE11032844
|
|
Oil pump
|
ENG 97293 -
|
| 1. |
VOE471571
|
[1] |
Bracket
|
|
| 2. |
VOE470347
|
[1] |
Bushing
|
|
| 3. |
VOE191171
|
[1] |
Pin
|
|
| 4. |
|
[1] |
Oil pump housing
|
|
| |
VOE470344
|
|
Oil pump housing
|
|
| 5. |
|
[2] |
Bushing
|
|
| |
VOE470347
|
|
Bushing
|
|
| 6. |
VOE401146
|
[2] |
Guide sleeve
|
|
| 7. |
|
[1] |
Drive shaft
|
|
| |
VOE4778325
|
|
Shaft
|
|
| 8. |
|
[1] |
Shaft
|
|
| |
VOE4778319
|
|
Shaft
|
|
| 9. |
|
[2] |
Gear
|
|
| 9A. |
VOE4778435
|
|
Gear
|
|
| 9B. |
VOE470353
|
|
Pump rotor
|
|
| 10. |
|
[1] |
Drive wheel
|
|
| |
VOE471941
|
|
Drive Gear
|
|
| 11. |
VOE471942
|
[1] |
Drive Gear
|
|
| 12. |
VOE471585
|
[1] |
Bushing
|
|
| 13. |
VOE420048
|
[1] |
Bearing sleeve
|
|
| 14. |
VOE471586
|
[1] |
Screw
|
|
| 15. |
VOE13955311
|
[2] |
Screw
|
|
| |
VOE967825
|
|
Hexagon screw
|
|
| 16. |
|
[1] |
Oil pump housing
|
|
| |
VOE11032851
|
|
Pump housing
|
|
| 17. |
VOE470347
|
[2] |
Bushing
|
|
| 18. |
VOE401146
|
[2] |
Guide sleeve
|
|
| 19. |
VOE469730
|
[1] |
Key
|
|
| |
VOE910115
|
|
Woodruff key
|
|
| 20. |
VOE13960632
|
[1] |
Plug
|
|
| 21. |
VOE13947624
|
[1] |
Plane gasket
|
|
