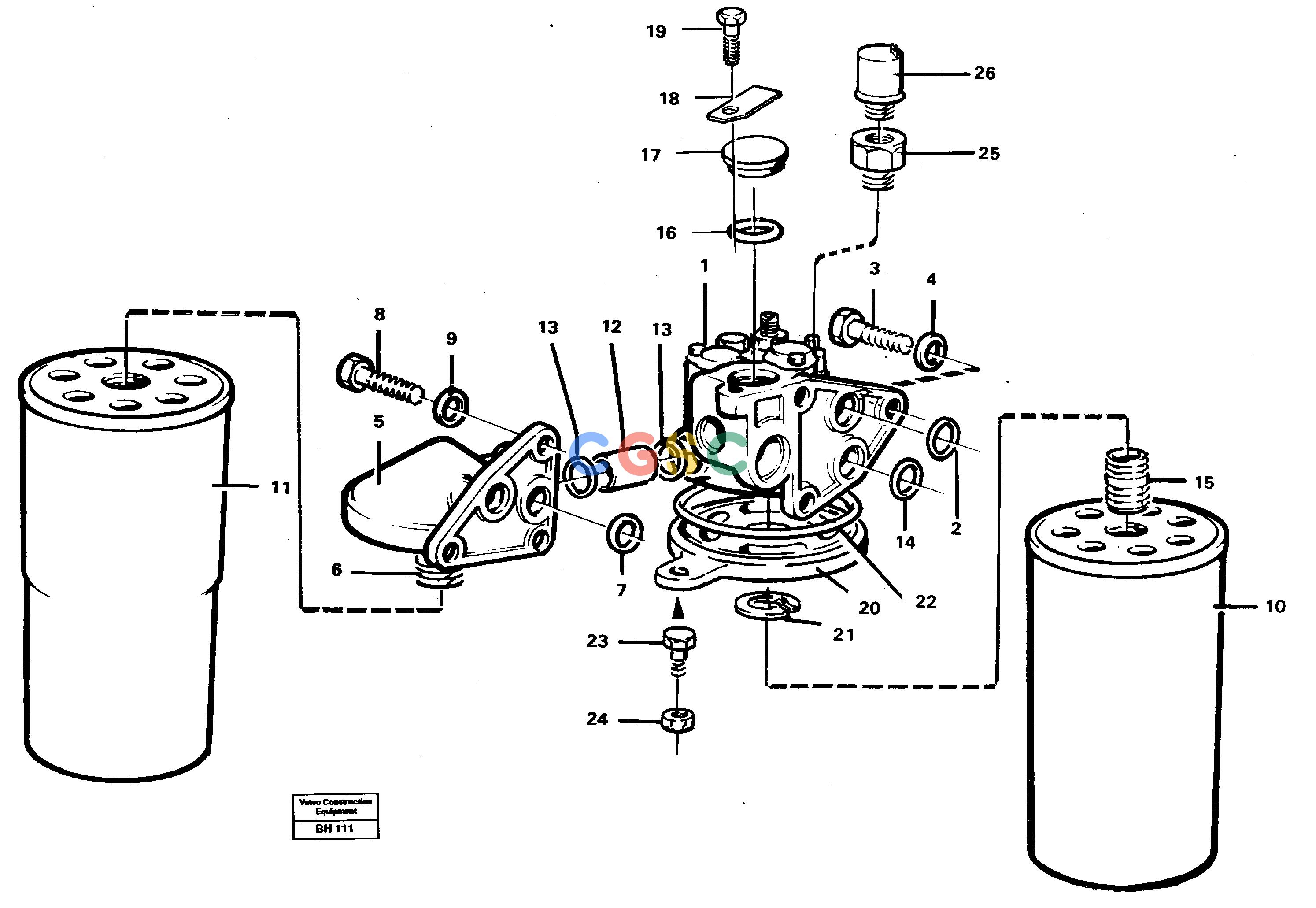

沃尔沃零件查询A20C VOLVO BM Oil filterVOLVO BM A20C SER NO - 3051 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
127 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Filter Housing
|
|
| 2. |
VOE13949656
|
[2] |
O-ring
|
|
| 3. |
VOE946329
|
[2] |
Flange screw
|
|
| |
VOE60113101
|
[1] |
Flange screw
|
|
| 4. |
VOE941908
|
[3] |
Spring washer
|
|
| 5. |
|
[1] |
Filter Housing
|
|
| 6. |
|
[1] |
Nipple
|
|
| 7. |
VOE13949656
|
[2] |
O-ring
|
|
| 8. |
VOE946329
|
[3] |
Flange screw
|
|
| 9. |
VOE941908
|
[3] |
Spring washer
|
|
| 10. |
VOE21707134
|
[1] |
Oil Filter
|
|
| 11. |
VOE21707132
|
[1] |
Oil filter
|
|
| 12. |
VOE471602
|
[1] |
Tube
|
|
| 13. |
VOE471956
|
[2] |
Sealing ring
|
|
| 14. |
VOE13949722
|
[1] |
O-ring
|
|
| 15. |
|
[1] |
Nipple
|
|
| 16. |
VOE22194880
|
[1] |
Sealing ring
|
|
| 17. |
VOE848319
|
[1] |
Plug
|
|
| 18. |
VOE848318
|
[1] |
Attachment
|
|
| 19. |
VOE946440
|
[1] |
Flange screw
|
|
| 20. |
VOE4771601
|
[1] |
Plate
|
|
| 21. |
VOE914461
|
[1] |
Retaining ring
|
|
| 22. |
VOE968759
|
[1] |
O-ring
|
|
| 23. |
VOE946471
|
[1] |
Flange screw
|
|
| 24. |
VOE13961293
|
[1] |
Nut
|
|
| 25. |
VOE835980
|
[1] |
Nipple
|
|
| 26. |
VOE1606877
|
[1] |
Switch
|
|
