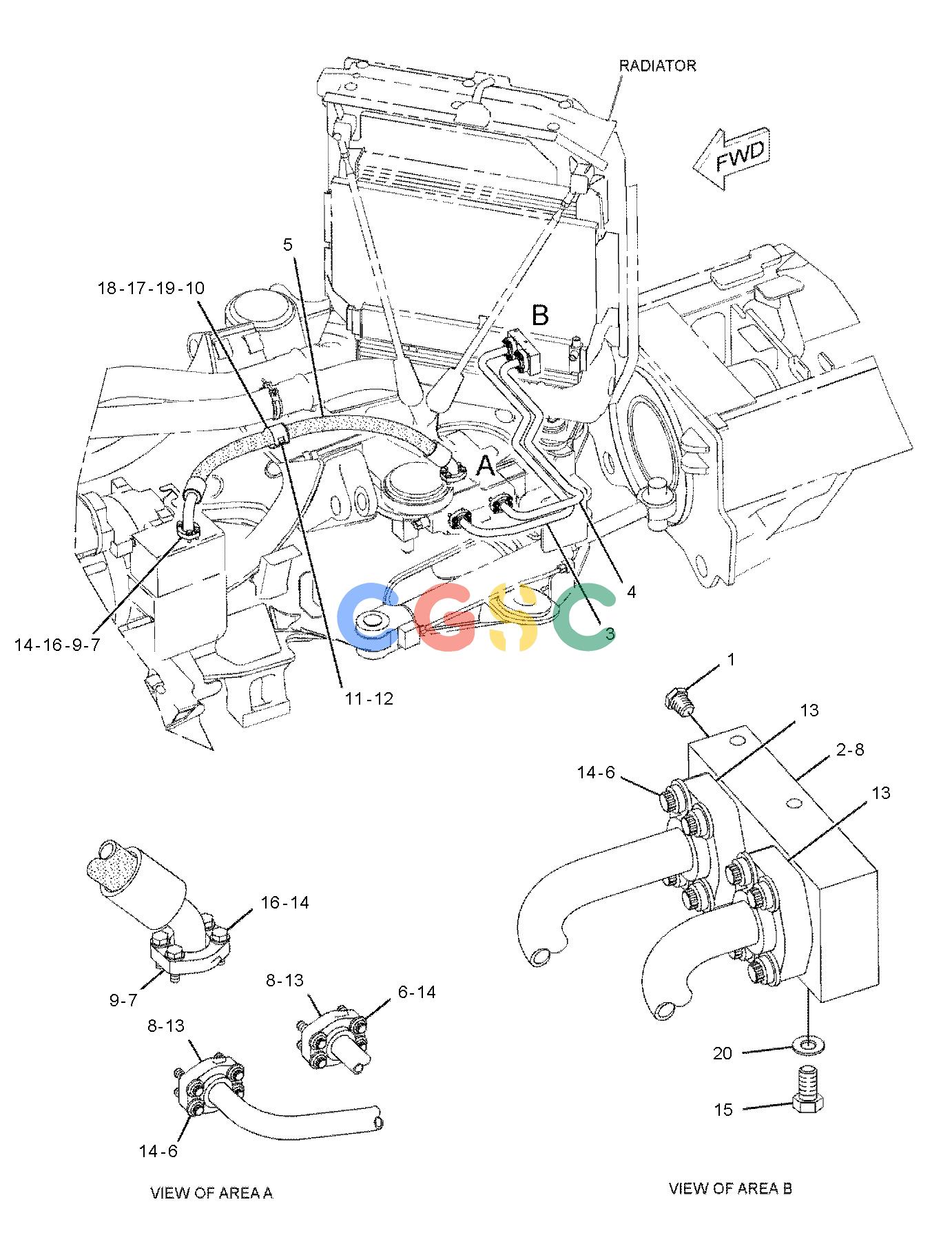

卡特零件查询（725） 234-5604: LINES GP-HOIST
广数供应链运营团队, 14 02月, 2025，浏览：
516 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 148-8411 | [1] | PLUG AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 2. | 172-0086 | [1] | MANIFOLD | |
| 3. | 241-8329 | [1] | TUBE AS | |
| 4. | 241-8330 | [1] | TUBE AS | |
| 5. | 242-3004I | [1] | HOSE AS | |
| 6. | 118-9573M | [16] | BOLT-12 POINT HEAD(M10X1.5X35-MM) | |
| 7. | 1P-4578 | [4] | FLANGE-HALF | |
| 8. | 4J-0520 | [4] | SEAL-O-RING | |
| 9. | 4J-0522 | [2] | SEAL-O-RING | |
| 10. | 5P-7470 | [1] | CLIP(SLOT) | |
| 11. | 5P-7471 | [1] | CLIP(TAB) | |
| 12. | 5P-8182 | [1] | GROMMET(46-MM ID) | |
| 13. | 8C-3206 | [8] | FLANGE-HALF | |
| 14. | 8T-4121 | [24] | WASHER-HARD(11X21X2.5-MM THK) | |
| 15. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 16. | 8T-4196M | [8] | BOLT(M10X1.5X35-MM) | |
| 17. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 18. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 19. | 8T-4956M | [1] | BOLT(M12X1.75X35-MM) | |
| 20. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
