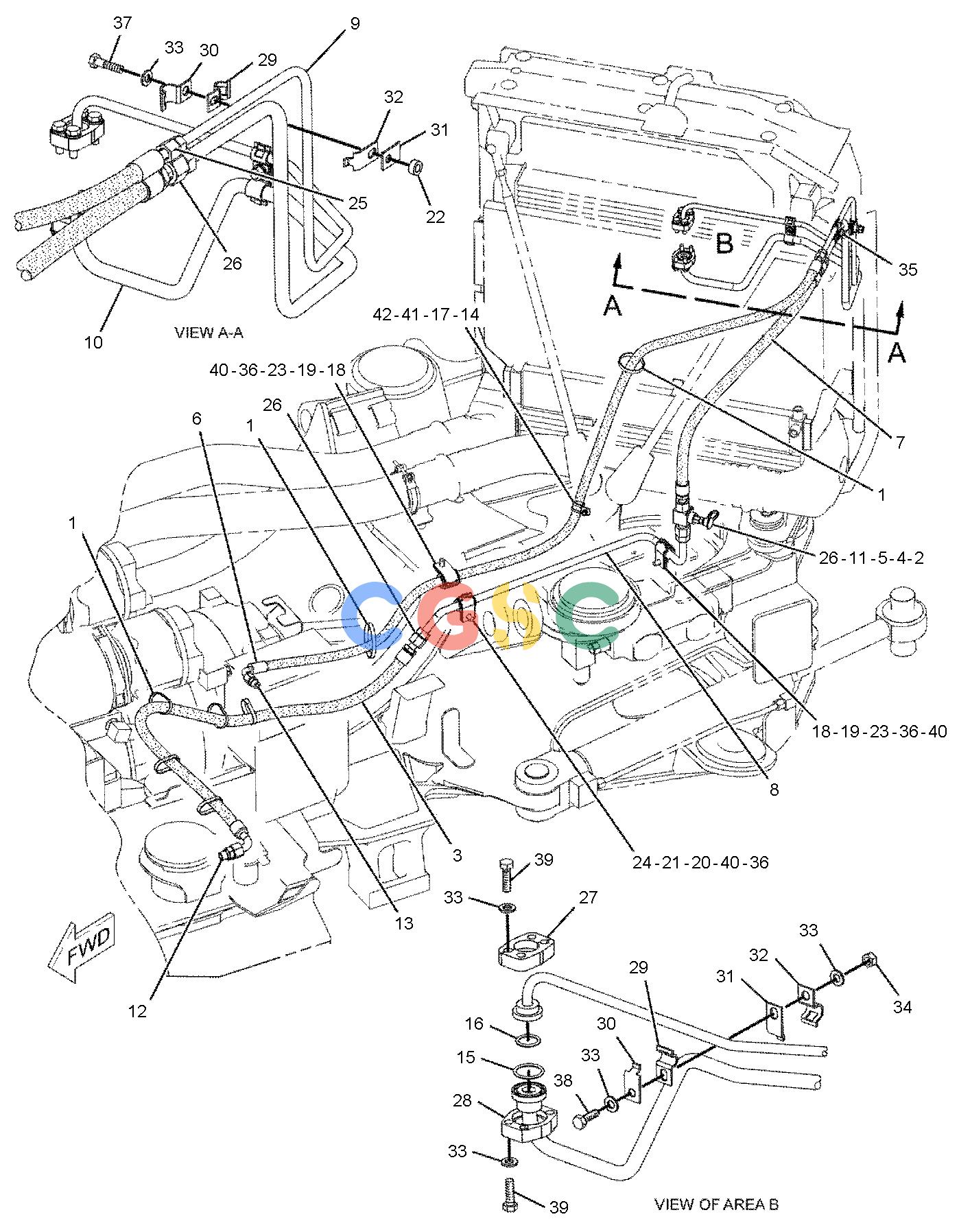

卡特零件查询（725） 304-6596: LINES GP-HOIST
广数供应链运营团队, 14 02月, 2025，浏览：
687 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 148-8313 | [1] | ADAPTER AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 5P-6944 | [1] | ADAPTER | |
| | 148-8335 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-8635 | [1] | CONNECTOR | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 214-7588 | [1] | BAFFLE AS | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 176-3642I | [2] | HOSE AS | |
| | | [4] | PLUG AS |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 9S-4183 | [1] | PLUG(1-1/16-12-THD) | |
| | 148-8411 | [1] | PLUG AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| | 218-2549 | [1] | SUPPORT AS | |
| | | | |
| | 8T-4196M | [8] | BOLT(M10X1.5X35-MM) | |
| | 8T-5436M | [4] | BOLT(M10X1.5X130-MM) | |
| | 8T-6408M | [1] | BOLT(M10X1.5X160-MM) | |
| | 6V-0852 | [1] | CAP-DUST | |
| | 204-6362 | [1] | GUARD-HOSE | |
| | 8C-3206 | [4] | FLANGE-HALF | |
| | | [1] | MANIFOLD |
| | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| | 191-5216 | [2] | PLATE-RETAINER | |
| | 4J-0520 | [2] | SEAL-O-RING | |
| | 218-0054 | [1] | SPACER(11X25X100-MM THK) | |
| | 218-0055 | [2] | SPACER(10.5X25.4X9.5-MM THK) | |
| | 217-7699 | [1] | STRIP-RUBBER | |
| | 4I-5480 | [2] | WASHER(11X72X3-MM THK) | |
| | 8T-4121 | [14] | WASHER-HARD(11X21X2.5-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
