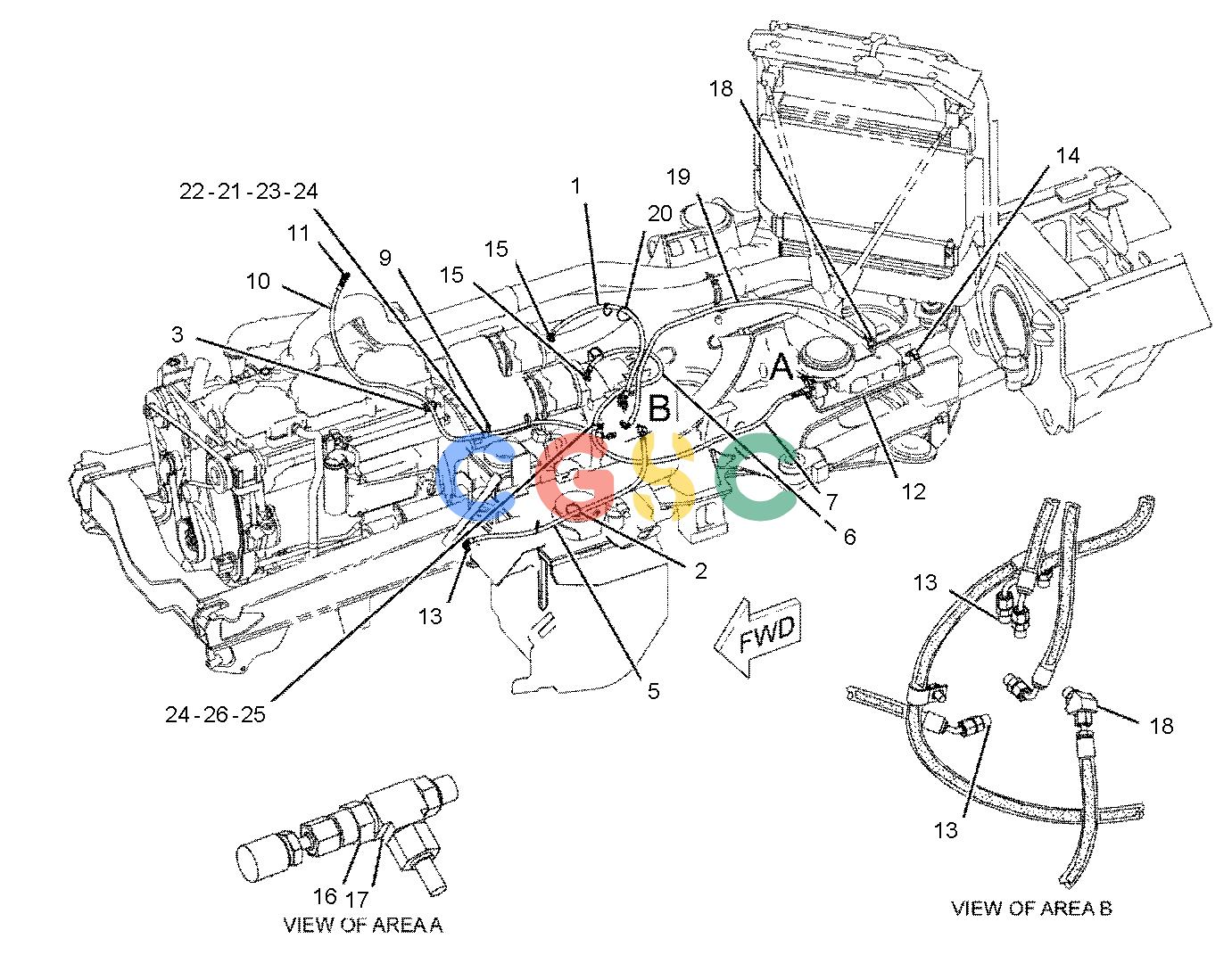

卡特零件查询（725） 234-5608: LINES GP-PILOT

广数供应链运营团队, 14 02月, 2025，浏览： 978 次

Pos.	Part No	Qty	Parts name
1.	1G-7043I	[1]	HOSE AS
2.	6U-0455	[3]	STRAP
3.	6U-0456	[8]	STRAP
4.	6V-0852	[2]	CAP-DUST
5.	117-3243I	[1]	HOSE AS
6.	160-6056I	[1]	HOSE AS
7.	160-6065I	[1]	HOSE AS
8.	164-5567	[2]	COUPLER AS-QUICK DISCONNECT(MALE)
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-3965	[1]	FITTING(QUICK DISCONNECT)
9.	169-9709	[1]	BRACKET
10.	174-1771I	[1]	HOSE AS
11.	187-2120	[1]	ELBOW AS
	4J-5477	[1]	SEAL-O-RING
	8C-8408	[1]	ELBOW
12.	242-2000	[1]	TUBE AS
13.	148-8325	[6]	CONNECTOR AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	4J-5477	[1]	SEAL-O-RING
	6V-8641	[1]	CONNECTOR
14.	148-8378	[1]	ELBOW AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8724	[1]	ELBOW
15.	148-8385	[2]	ELBOW AS
			(EACH INCLUDES)
	3J-7354	[1]	SEAL-O-RING
	4J-5477	[1]	SEAL-O-RING
	6V-9000	[1]	ELBOW
16.	148-8413	[1]	REDUCER AS
	4J-5477	[1]	SEAL-O-RING
	6V-8934	[1]	ADAPTER
17.	148-8435	[1]	TEE AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[2]	SEAL-O-RING
	6V-8781	[1]	TEE
18.	150-3033	[2]	ELBOW AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	4J-5477	[1]	SEAL-O-RING
	8T-0164	[1]	ELBOW
19.	204-0493I	[1]	HOSE AS
21.	5C-2890M	[1]	NUT(M6X1-THD)
22.	5C-9553M	[1]	BOLT(M6X1X16-MM)
23.	5P-4115	[1]	WASHER-HARD(7.2X19X2-MM THK)
24.	8M-2773	[2]	CLIP(LOOP)
25.	8T-4121	[1]	WASHER-HARD(11X21X2.5-MM THK)
26.	8T-4191M	[1]	BOLT(M10X1.5X16-MM)
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
