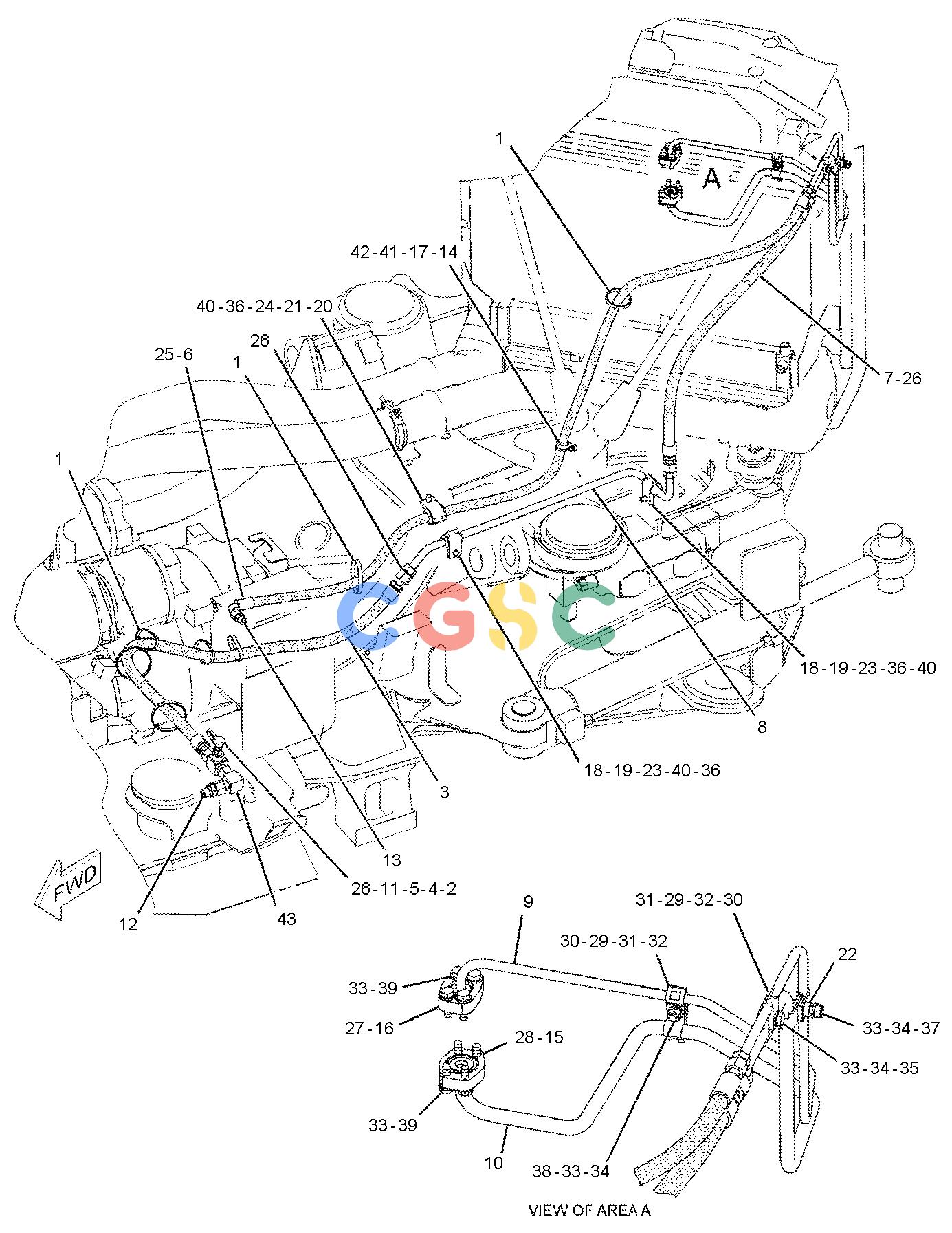

卡特零件查询（725） 244-8601: LINES GP-HYDRAULIC FAN
广数供应链运营团队, 14 02月, 2025，浏览：
518 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0456 | [7] | STRAP | |
| 2. | 8C-3451 | [1] | CAP-DUST(HYDRAULIC OIL) | |
| 3. | 108-5208I | [1] | HOSE AS | |
| 4. | 148-8430 | [1] | TEE AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 7X-0873 | [1] | TEE | |
| 5. | 164-5590 | [1] | VALVE AS-FLUID SAMPLING | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 8C-3446 | [1] | VALVE-SAMPLING | |
| 6. | 209-6236I | [1] | HOSE AS | |
| 7. | 239-0105I | [1] | HOSE AS | |
| 8. | 245-5788 | [1] | TUBE AS | |
| 9. | 249-8844 | [1] | TUBE AS | |
| 10. | 257-3808 | [1] | TUBE AS | |
| 11. | 148-8305 | [1] | ADAPTER AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 5P-9617 | [1] | ADAPTER | |
| 12. | 148-8322 | [1] | CONNECTOR AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8640 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 13. | 148-8340 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 14. | 3U-2428 | [1] | CLAMP-PIPE | |
| 15. | 4J-0520 | [1] | SEAL-O-RING | |
| 16. | 4J-5267 | [1] | SEAL-O-RING | |
| 17. | 5C-7261M | [1] | NUT(M8X1.25-THD) | |
| 18. | 5P-7462 | [2] | CLIP(SLOT) | |
| 19. | 5P-7463 | [2] | CLIP(TAB) | |
| 20. | 5P-7464 | [1] | CLIP(SLOT) | |
| 21. | 5P-7465 | [1] | CLIP(TAB) | |
| 22. | 6B-2882 | [1] | SPACER(0.406X0.75X0.312-IN THK) | |
| 23. | 6V-0683 | [2] | GROMMET | |
| 24. | 6V-7359 | [1] | GROMMET(25-MM ID, 37-MM OD) | |
| 25. | 6V-8398 | [1] | SEAL-O-RING | |
| 26. | 6V-9746 | [3] | SEAL-O-RING | |
| 27. | 8C-3205 | [2] | FLANGE-HALF | |
| 28. | 8C-3206 | [2] | FLANGE-HALF | |
| 29. | 8T-1885 | [3] | CLIP(SLOT) | |
| 30. | 8T-1886 | [3] | CLIP(TAB) | |
| 31. | 8T-1887 | [3] | CLIP(SLOT) | |
| 32. | 8T-1888 | [3] | CLIP(TAB) | |
| 33. | 8T-4121 | [14] | WASHER-HARD(11X21X2.5-MM THK) | |
| 34. | 8T-4133M | [3] | NUT(M10X1.5-THD) | |
| 35. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 36. | 8T-4139M | [3] | BOLT(M12X1.75X30-MM) | |
| 37. | 8T-4186M | [1] | BOLT(M10X1.5X40-MM) | |
| 38. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| 39. | 8T-4196M | [8] | BOLT(M10X1.5X35-MM) | |
| 40. | 8T-4223 | [3] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 41. | 8T-4224 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 42. | 8T-4908M | [1] | BOLT(M8X1.25X25-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
