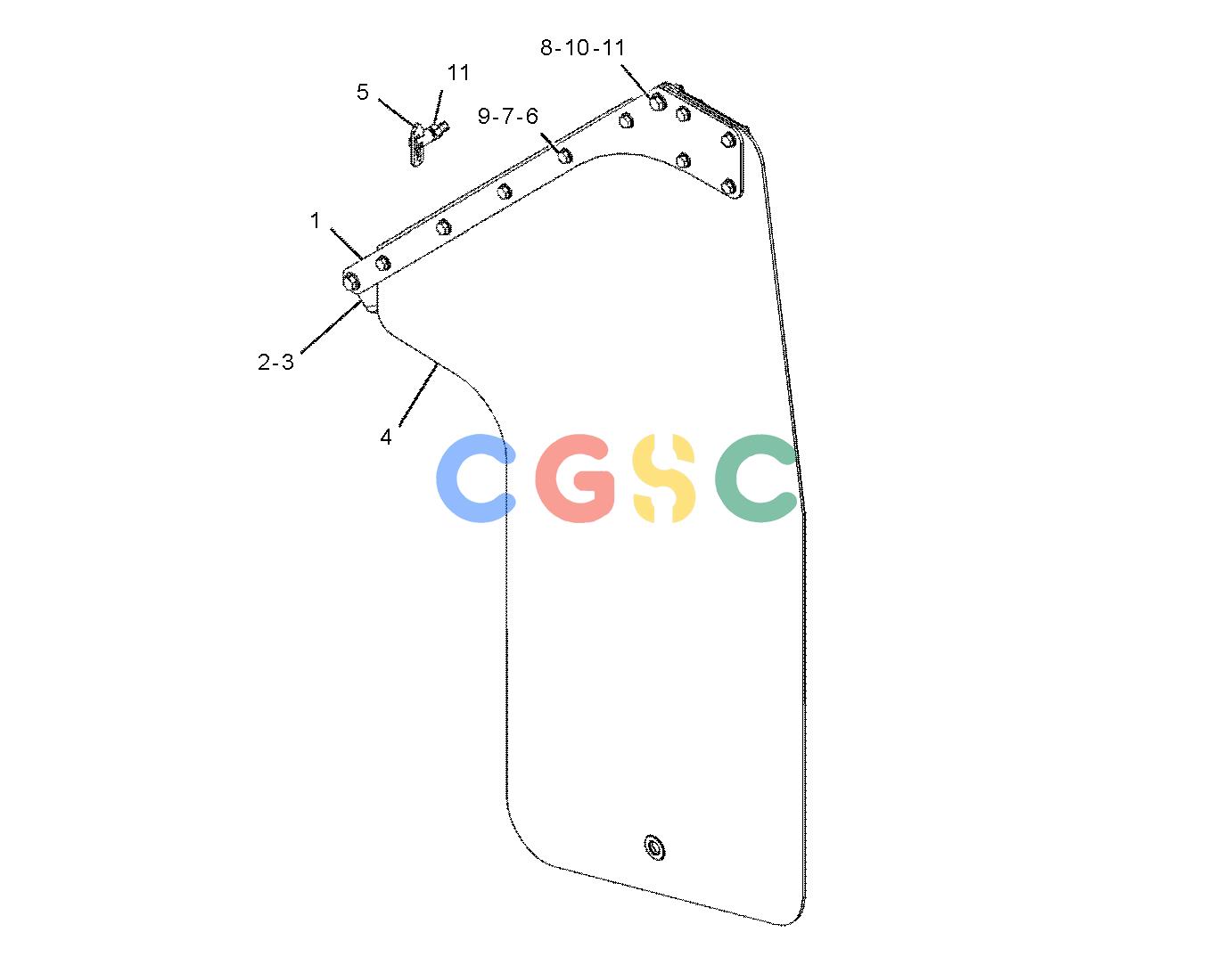

卡特零件查询（725） 170-1674: GUARD GP-MUD
广数供应链运营团队, 14 02月, 2025，浏览：
801 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 164-7293 | [2] | PLATE-MOUNTING | |
| 2. | 169-5026 | [1] | PLATE AS-MOUNTING(LH) | |
| 3. | 169-5027 | [1] | PLATE AS-MOUNTING(RH) | |
| 4. | 287-5630 | [2] | DEFLECTOR AS | |
| 5. | 287-5633 | [2] | FASTENER | |
| 6. | 8T-0389M | [18] | LOCKNUT(M10X1.5-THD) | |
| 7. | 8T-4121 | [36] | WASHER-HARD(11X21X2.5-MM THK) | |
| 8. | 8T-4184M | [4] | BOLT(M12X1.75X45-MM) | |
| 9. | 8T-4196M | [18] | BOLT(M10X1.5X35-MM) | |
| 10. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 11. | 8T-4244M | [6] | NUT(M12X1.75-THD) | |
| | M | | METRIC PART |
