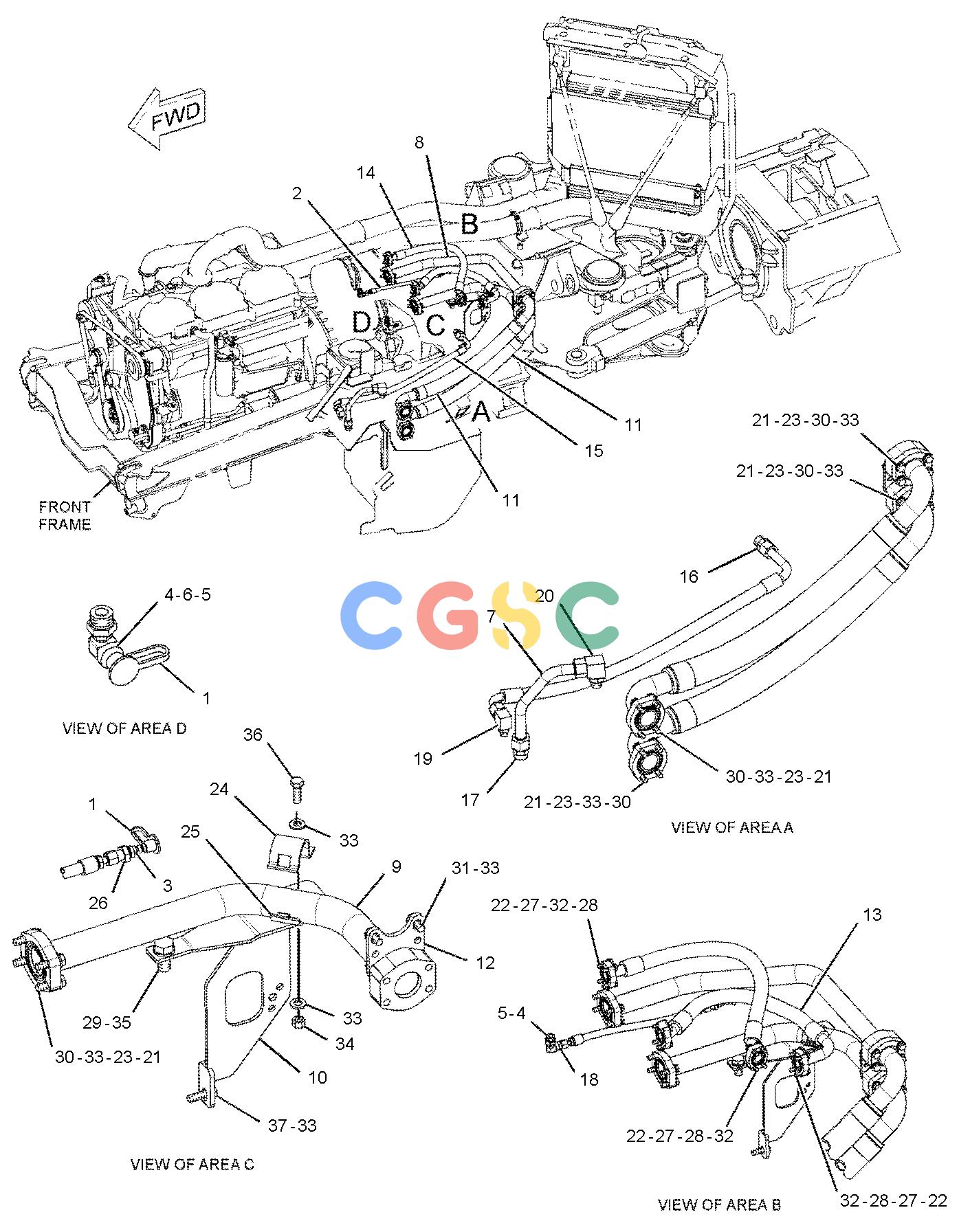

卡特零件查询（725） 234-5603: LINES GP-PUMP
广数供应链运营团队, 14 02月, 2025，浏览：
812 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0852 | [2] | CAP-DUST | |
| 2. | 112-9445I | [1] | HOSE AS | |
| 3. | 121-0530 | [1] | FITTING AS-HYDRAULIC(QUICK DISCONNECT) | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 4. | 150-3065 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-0484 | [1] | ELBOW | |
| 5. | 150-4046 | [2] | ADAPTER AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 5P-1404 | [1] | ADAPTER | |
| 6. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| 7. | 193-5315 | [1] | TUBE AS | |
| 8. | 236-7919 | [1] | TUBE AS | |
| 9. | 236-7920 | [1] | TUBE AS | |
| 10. | 236-7921 | [1] | BRACKET AS | |
| 11. | 236-8731I | [2] | HOSE AS | |
| 12. | 236-9740 | [1] | PLATE-SUPPORT | |
| 13. | 242-0248I | [1] | HOSE AS | |
| 14. | 248-0180I | [1] | HOSE AS | |
| 15. | 248-0560I | [1] | HOSE AS | |
| 16. | 148-8327 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8637 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 17. | 148-8335 | [1] | CONNECTOR AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-8635 | [1] | CONNECTOR | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 18. | 148-8336 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 19. | 148-8359 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 6V-9877 | [1] | ELBOW | |
| 20. | 148-8362 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 8T-6684 | [1] | ELBOW | |
| 21. | 1P-4582 | [12] | FLANGE-HALF | |
| 22. | 4J-0520 | [4] | SEAL-O-RING | |
| 23. | 4J-0527 | [6] | SEAL-O-RING | |
| 24. | 5P-7468 | [1] | CLIP(SLOT) | |
| 25. | 5P-7469 | [1] | CLIP(TAB) | |
| 26. | 6V-9168 | [1] | NUT(11/16-16-THD) | |
| 27. | 8C-3206 | [8] | FLANGE-HALF | |
| 28. | 8T-4121 | [16] | WASHER-HARD(11X21X2.5-MM THK) | |
| 29. | 8T-4123 | [1] | WASHER(3.62X5.75X0.375-MM THK) | |
| 30. | 8T-4183M | [24] | BOLT(M12X1.75X40-MM) | |
| 31. | 8T-4192M | [4] | BOLT(M12X1.75X25-MM) | |
| 32. | 8T-4196M | [16] | BOLT(M10X1.5X35-MM) | |
| 33. | 8T-4223 | [31] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 34. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 35. | 8T-5460M | [1] | BOLT(M20X2.5X40-MM) | |
| 36. | 8T-4956M | [1] | BOLT(M12X1.75X35-MM) | |
| 37. | 8T-4139M | [1] | BOLT(M12X1.75X30-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
