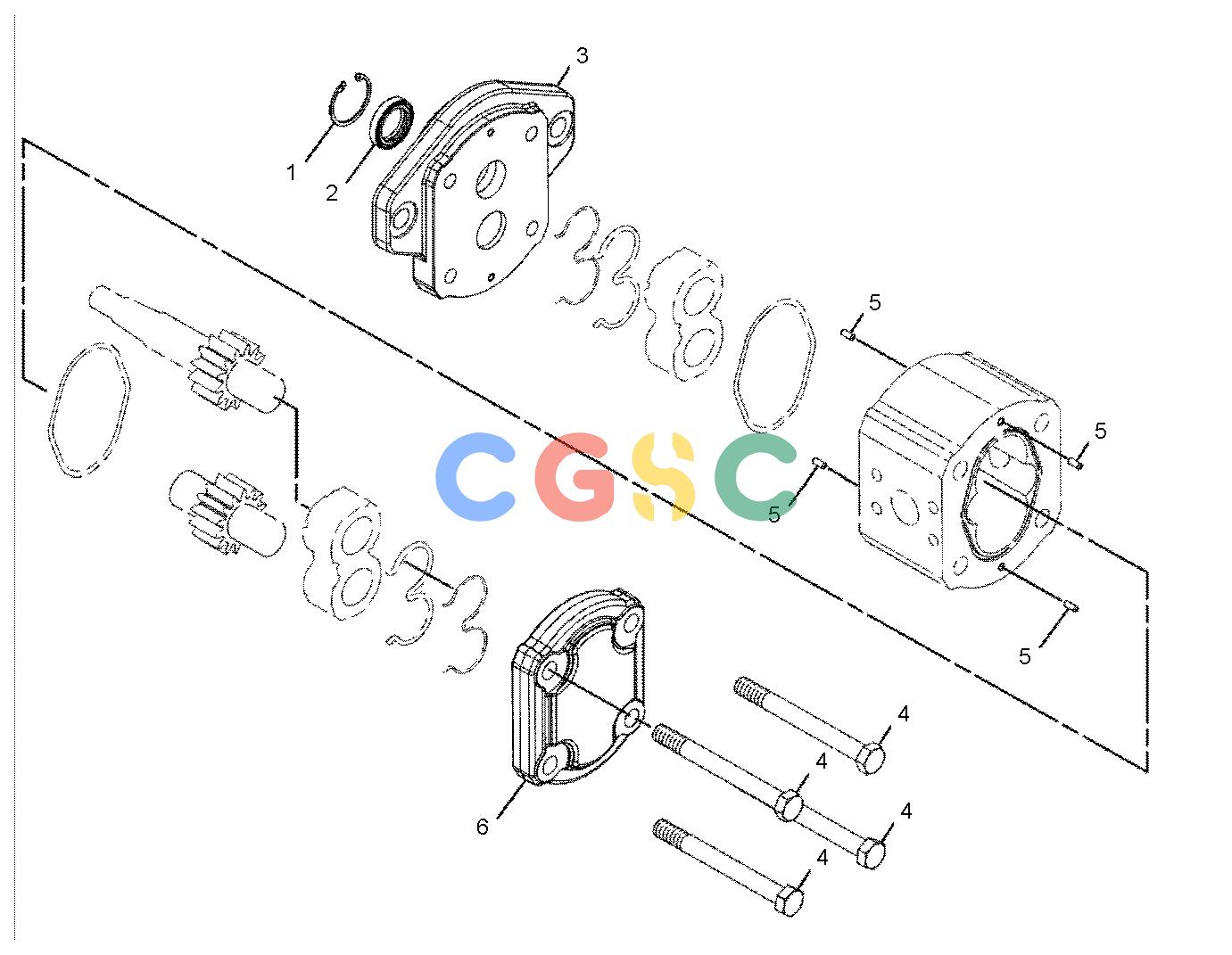

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 1L-3768J | [1] | RING-RETAINING | |
| 2. | 208-8094J | [1] | SEAL | |
| 3. | 136-3842 | [1] | FLANGE | |
| 4. | 250-0492 | [4] | BOLT(M12X1.75X115-MM) | |
| 5. | 099-3095 | [4] | DOWEL | |
| 6. | 135-3490 | [1] | COVER | |
| AVAILABLE REPAIR KIT(S): | ||||
| 248-1385J | [1] | KIT-SEAL(GEAR MOTOR) | ||
| (INCLUDES SEALS, O-RING SEALS & BACKUP RINGS) | ||||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
