卡特零件查询（725） 234-5609: LINES GP-RETURN
广数供应链运营团队, 14 02月, 2025，浏览：
318 次

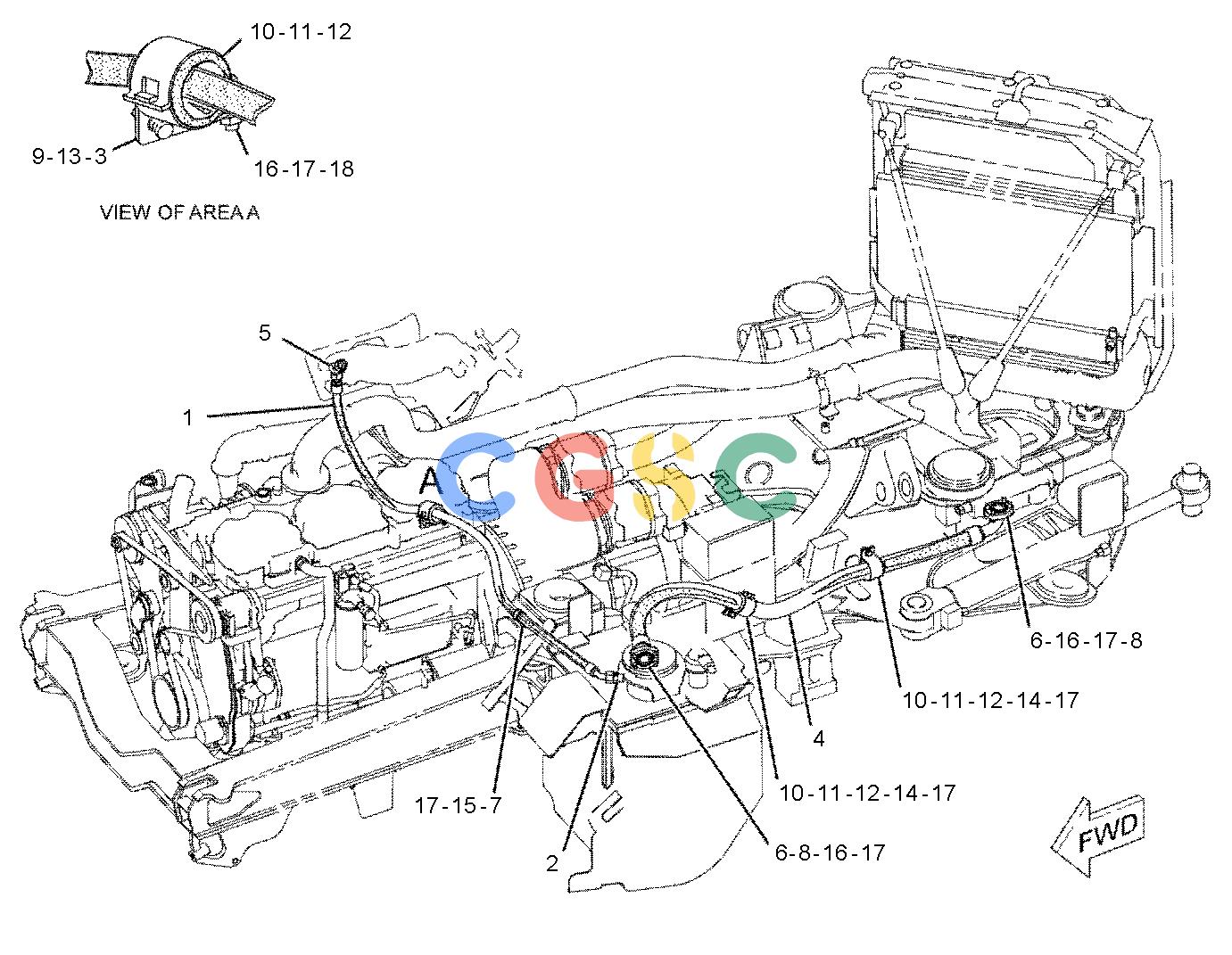

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 116-1892I | [1] | HOSE AS | |
| 2. | 145-8983 | [1] | VALVE GP-CHECK(HYDRAULIC OIL COOLER BYPASS) | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 3. | 243-1456 | [1] | BRACKET | |
| 4. | 245-5791I | [1] | HOSE AS | |
| 5. | 171-6723 | [1] | ELBOW AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 8T-8899 | [1] | ELBOW | |
| 6. | 1P-4579 | [4] | FLANGE-HALF | |
| 7. | 2U-2749 | [1] | CLIP | |
| 8. | 4J-0524 | [2] | SEAL-O-RING | |
| 9. | 5C-6266 | [2] | BOLT(5/8-11X1-IN) | |
| 10. | 5P-7470 | [3] | CLIP(SLOT) | |
| 11. | 5P-7471 | [3] | CLIP(TAB) | |
| 12. | 5P-7703 | [3] | GROMMET(52-MM ID) | |
| 13. | 8T-4122 | [2] | WASHER-HARD(17X32X3.5-MM THK) | |
| 14. | 8T-4139M | [2] | BOLT(M12X1.75X30-MM) | |
| 15. | 8T-4179M | [1] | BOLT(M12X1.75X20-MM) | |
| 16. | 8T-4183M | [9] | BOLT(M12X1.75X40-MM) | |
| 17. | 8T-4223 | [13] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 18. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
