沃尔沃零件查询A25 VOLVO BM Extra fuel filter 90520 Std UsaVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
969 次

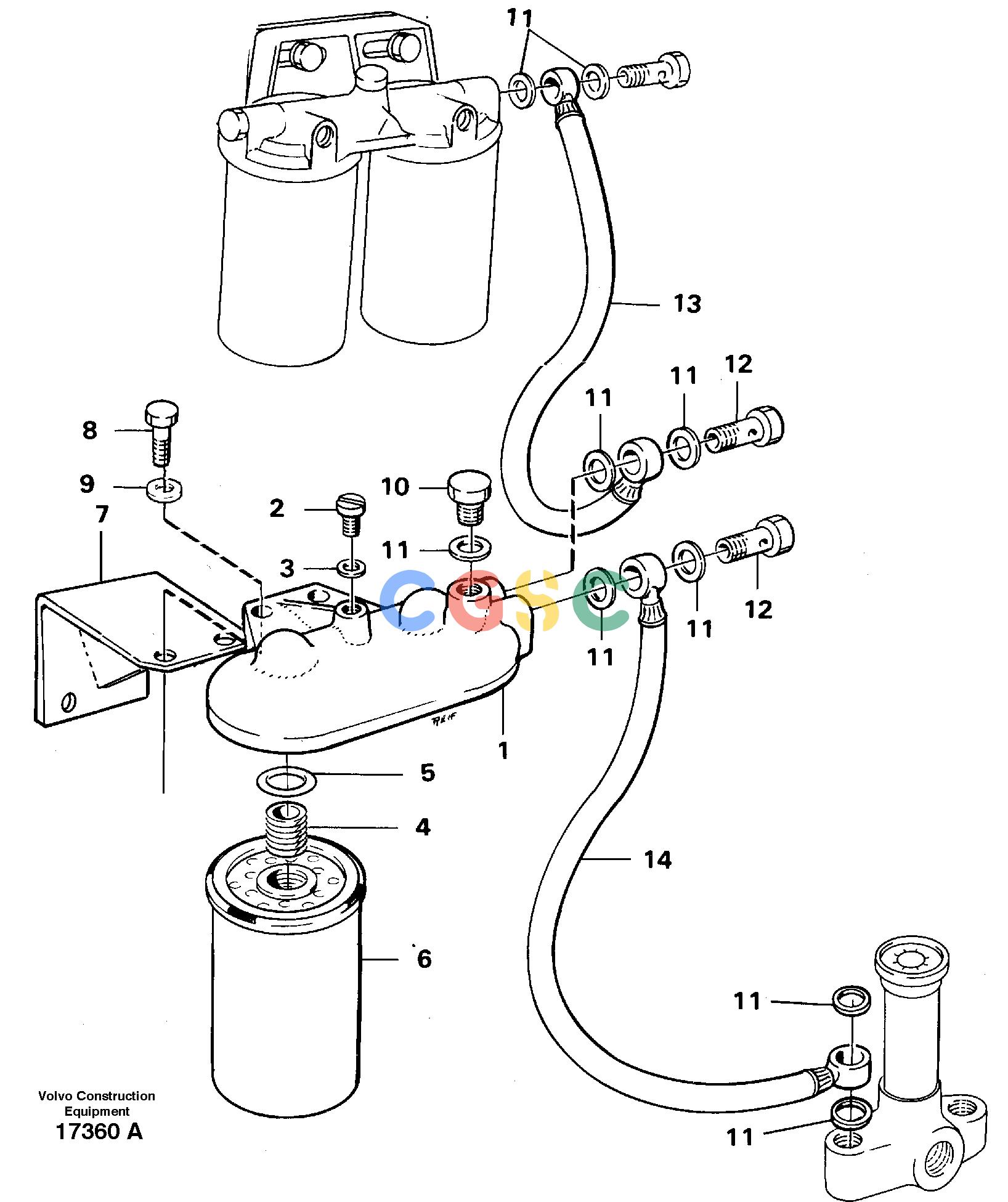

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE781644
|
[0002] |
Nipple
|
|
| 5. |
VOE949658
|
[0002] |
O-ring
|
|
| 6. |
VOE795210
|
[0002] |
Fuel filter
|
|
| 7. |
VOE11056176
|
[0001] |
Bracket
|
|
| 8. |
VOE60113082
|
[0002] |
Flange screw
|
|
| |
VOE781648
|
|
Filter cover
|
|
| 9. |
VOE13945408
|
[0002] |
Nut
|
|
| 10. |
VOE960630
|
[0001] |
Plug
|
|
| 11. |
VOE957178
|
[0009] |
Gasket
|
|
| 12. |
VOE60113509
|
[0002] |
Hollow screw
|
|
| 13. |
VOE4804349
|
[0001] |
Fuel hose
|
|
| 14. |
VOE4774631
|
[0001] |
Fuel hose
|
|
| 1. |
|
[0001] |
Filter head
|
|
| 2. |
VOE11000051
|
[0001] |
Screw
|
|
| 3. |
VOE947620
|
[0001] |
Gasket
|
|
