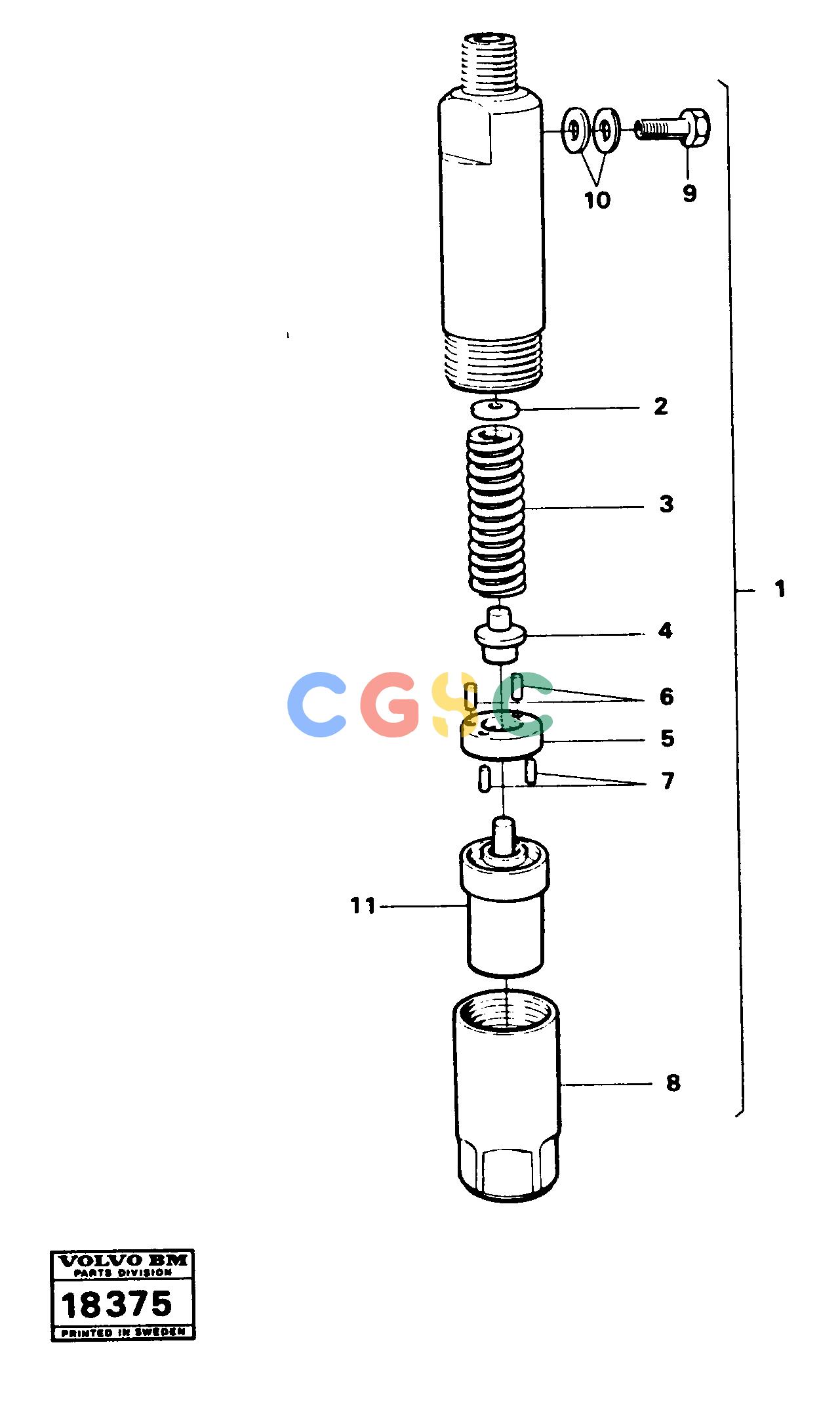

沃尔沃零件查询A25 VOLVO BM InjectorVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
590 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE11043052
|
[1] |
Injector
|
|
| 1. |
VOE421503
|
[1] |
Nozzle retainer
|
|
| 2. |
VOE11700654
|
[REQ] |
Shim
|
THICK 1.00
|
| |
VOE11701280
|
[REQ] |
Shim
|
THICK 1.04
|
| |
VOE3094407
|
[REQ] |
Shim
|
THICK 1.08
|
| |
VOE11701085
|
[REQ] |
Shim
|
THICK 1.12
|
| |
VOE3094408
|
[REQ] |
Shim
|
THICK 1.16
|
| |
VOE11701282
|
[REQ] |
Shim
|
THICK 1.20
|
| |
VOE11700776
|
[REQ] |
Shim
|
THICK 1.24
|
| |
VOE11701049
|
[REQ] |
Shim
|
THICK 1.28
|
| |
VOE11701106
|
[REQ] |
Shim
|
THICK 1.32
|
| |
|
[REQ] |
Shim
|
THICK 1.36
|
| |
VOE244800
|
[REQ] |
Shim
|
THICK 1.40
|
| |
VOE11700690
|
[REQ] |
Shim
|
THICK 1.44
|
| |
VOE11701281
|
[REQ] |
Shim
|
THICK 1.48
|
| |
VOE11701783
|
[REQ] |
Shim
|
THICK 1.50
|
| |
VOE11700653
|
[REQ] |
Shim
|
THICK 1.56
|
| |
VOE11700835
|
[REQ] |
Shim
|
THICK 1.60
|
| |
VOE11701162
|
[REQ] |
Shim
|
THICK 1.64
|
| |
VOE11700126
|
[REQ] |
Shim
|
THICK 1.68
|
| |
VOE3094477
|
[REQ] |
Shim
|
THICK 1.72
|
| |
|
[REQ] |
Shim
|
THICK 1.76
|
| |
VOE11701050
|
[REQ] |
Shim
|
THICK 1.80
|
| |
VOE244808
|
[REQ] |
Shim
|
THICK 1.86
|
| |
|
[REQ] |
Shim
|
THICK 1.88
|
| |
VOE244795
|
[REQ] |
Shim
|
THICK 1.92
|
| |
VOE3094467
|
[REQ] |
Shim
|
THICK 1.96
|
| 3. |
VOE244820
|
[1] |
Compression spring
|
|
| 4. |
VOE3094859
|
[1] |
Retainer
|
|
| 5. |
VOE1698513
|
[1] |
Washer
|
|
| 6. |
VOE844339
|
[2] |
Pin
|
|
| 7. |
VOE244447
|
[2] |
Pin
|
|
| 8. |
VOE3092030
|
[1] |
Nut
|
|
| 9. |
VOE11703339
|
[1] |
Hollow screw
|
|
| 10. |
VOE947620
|
[2] |
Gasket
|
|
| 11. |
VOE11043051
|
[1] |
Nozzle
|
|
