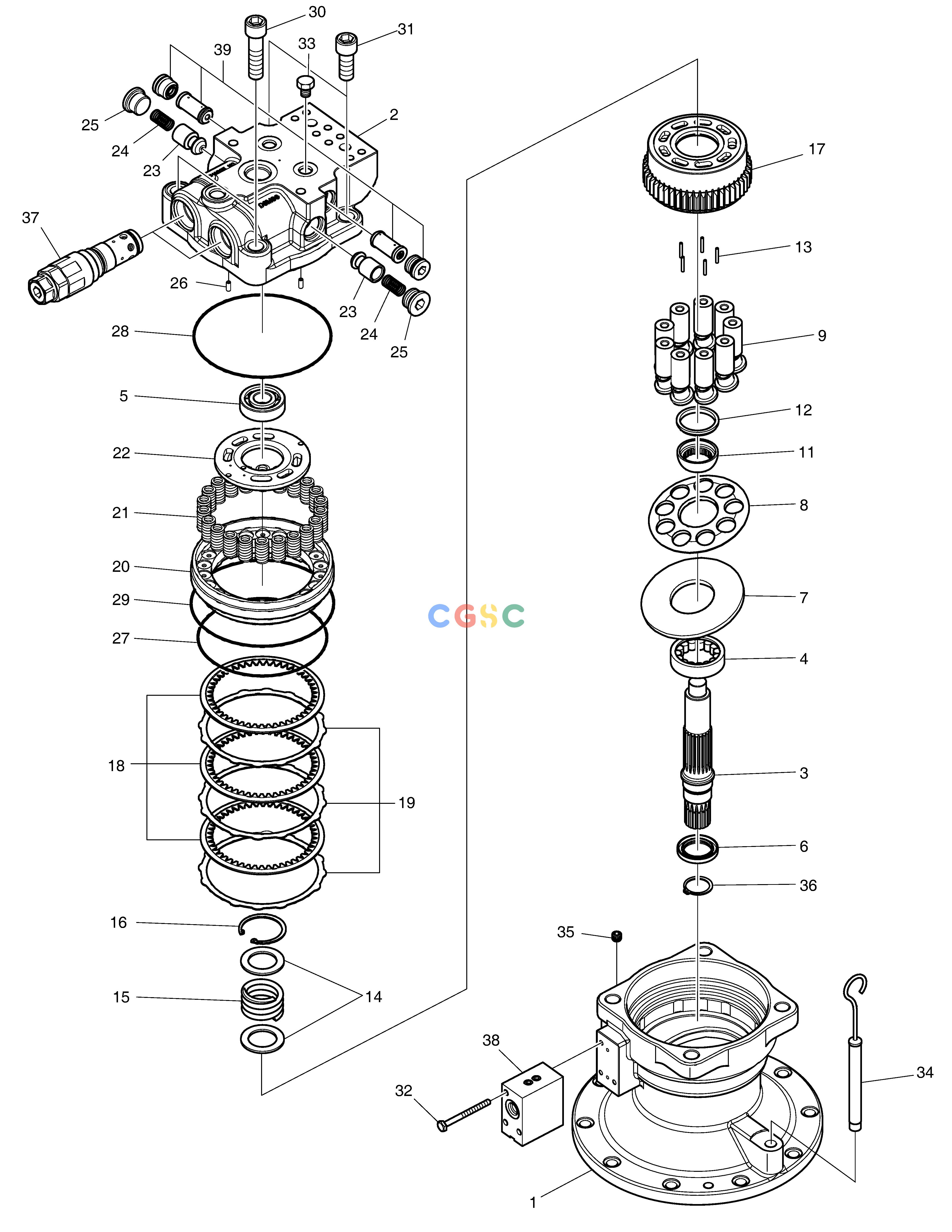

斗山零件查询SWING MOTOR DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
518 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-01169
|
[1] |
SEAL KIT;SWING MOTOR
|
|
| -. |
170303-00068
|
[1] |
MOTOR,SWING
|
|
| 1. |
110913-00189
|
[1] |
CASE;MOTOR
|
|
| 11. |
110202-00008
|
[1] |
BALL,THRUST
|
|
| 12. |
K9001305
|
[1] |
COLLAR
|
|
| 13. |
900131-00029
|
[5] |
ROLLER
|
|
| 14. |
K9001308
|
[2] |
WASHER
|
|
| 15. |
111601-00144
|
[1] |
SPRING
|
|
| 16. |
S6510500
|
[1] |
RING;SNAP
|
|
| 17. |
K9001302A
|
[1] |
BLOCK,CYLINDER
|
|
| 18. |
K9001313
|
[3] |
PLATE;FRICTION
|
|
| 19. |
K9001312
|
[3] |
PLATE;SEPARATION
|
|
| 2. |
NA00351
|
[1] |
CASING;VALVE
|
|
| 20. |
K9001314A
|
[1] |
PISTON;BRAKE
|
|
| 21. |
K9001315
|
[22] |
SPRING;BRAKE
|
|
| 22. |
K9001310B
|
[1] |
PLATE,VALVE
|
|
| 23. |
K9001297
|
[2] |
PLUNGER
|
|
| 24. |
K9001296
|
[2] |
SPRING
|
|
| 25. |
430221-00069
|
[2] |
PLUG
|
|
| 26. |
S5740730
|
[2] |
PIN;SPRING
|
|
| 27. |
2180-1217D147
|
[1] |
O-RING
|
|
| 28. |
2180-1217D149
|
[1] |
O-RING
|
|
| 29. |
2180-1217D150
|
[1] |
O-RING
|
|
| 3. |
130712-00798
|
[1] |
SHAFT,DRIVE
|
|
| 30. |
S2221961
|
[2] |
BOLT;SOCKET
|
|
| 31. |
S2221471
|
[2] |
BOLT,SOCKET
|
|
| 32. |
S0506053
|
[3] |
BOLT M6x1.0x70
|
|
| 33. |
430221-00070
|
[2] |
PLUG
|
|
| 34. |
800108-00100
|
[1] |
GAUGE ASSY,LEVEL
|
|
| 35. |
2181-1116D4
|
[1] |
PLUG
|
|
| 36. |
S6500300
|
[1] |
RING;RETAINER
|
|
| 37. |
K9008333A
|
[2] |
VALVE,RELIEF
|
|
| 38. |
420-00110A
|
[1] |
VALVE;BRAKE
|
|
| 39. |
410116-00311
|
[1] |
VALVE;SWING REACTIONLESS
|
|
| 4. |
140101-00590
|
[1] |
BEARING,BALL
|
|
| 5. |
S6005040
|
[1] |
BEARING;BALL
|
|
| 6. |
401106-00246
|
[1] |
SEAL,OIL
|
|
| 7. |
400901-00046
|
[1] |
PLATE,SWASH
|
|
| 8. |
K9001304
|
[1] |
PLATE;RETAINER
|
|
| 9. |
400901-00004
|
[1] |
PISTON & SHOE ASSY
|
|
