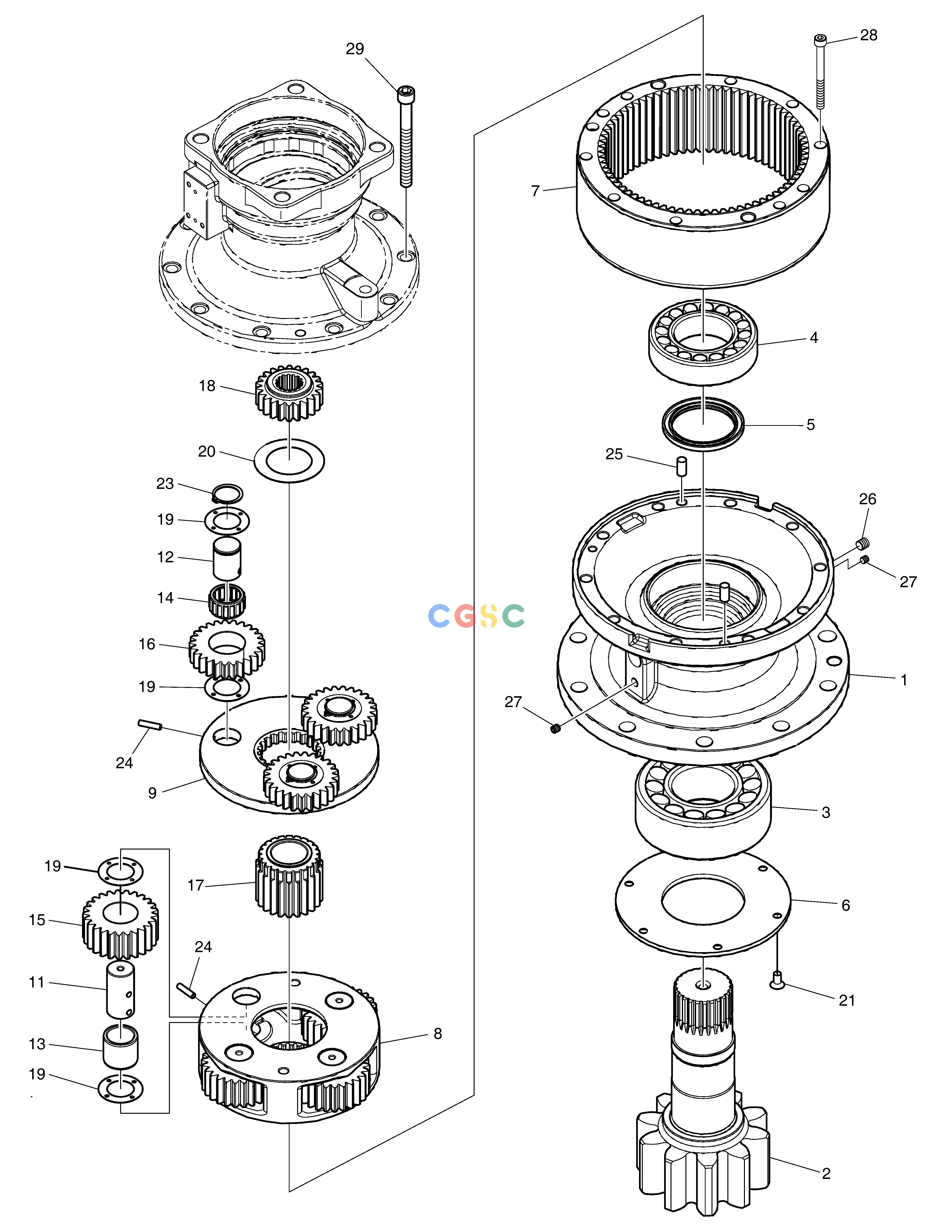

斗山零件查询SWING REDUCTION GEAR DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
703 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
130426-00022
|
[1] |
GEAR ASSY,SWING REDUCTION
|
|
| 1. |
110913-00190
|
[1] |
CASE,GEAR BOX
|
|
| 11. |
120501-02081
|
[4] |
PIN(NO.2)
|
|
| 12. |
120501-02082
|
[3] |
PIN(NO.1)
|
|
| 13. |
131002-00398
|
[4] |
BUSHING,PIN
|
|
| 14. |
140104-00067
|
[3] |
BEARING,NEEDLE
|
|
| 15. |
130413-00026
|
[4] |
GEAR,PLANETARY(NO.2)
|
|
| 16. |
130413-00027
|
[3] |
GEAR,PLANETARY(NO.1)
|
|
| 17. |
130425-00026
|
[1] |
GEAR,SUN(NO.2)
|
|
| 18. |
130425-00027
|
[1] |
GEAR,SUN(NO.1)
|
|
| 19. |
120816-00101
|
[14] |
WASHER,THRUST(NO.2)
|
|
| 2. |
130712-00799
|
[1] |
SHAFT,DRIVE
|
|
| 20. |
120816-00102
|
[1] |
WASHER,THRUST
|
|
| 21. |
K9004303
|
[6] |
SCREW
|
|
| 23. |
S6500300
|
[3] |
RING;RETAINER
|
|
| 24. |
1.123-00081
|
[7] |
PIN;SPRING
|
|
| 25. |
K9005755
|
[2] |
PIN;PARALLEL
|
|
| 26. |
2181-1116D4
|
[1] |
PLUG
|
|
| 27. |
2181-1116D1
|
[2] |
PLUG
|
|
| 28. |
S2210466
|
[1] |
BOLT
|
|
| 29. |
S2217066
|
[10] |
BOLT
|
|
| 3. |
140105-00311
|
[1] |
BEARING,SPHERICAL;ROLLER
|
|
| 4. |
140105-00312
|
[1] |
BEARING,SPHERICAL;ROLLER
|
|
| 5. |
401106-00247
|
[1] |
SEAL,OIL
|
|
| 6. |
110508-09399
|
[1] |
COVER,BEARING
|
|
| 7. |
130422-00052
|
[1] |
GEAR,RING
|
|
| 8. |
100502-00174
|
[1] |
CARRIER(NO.2)
|
|
| 9. |
100502-00175
|
[1] |
CARRIER(NO.1)
|
|
