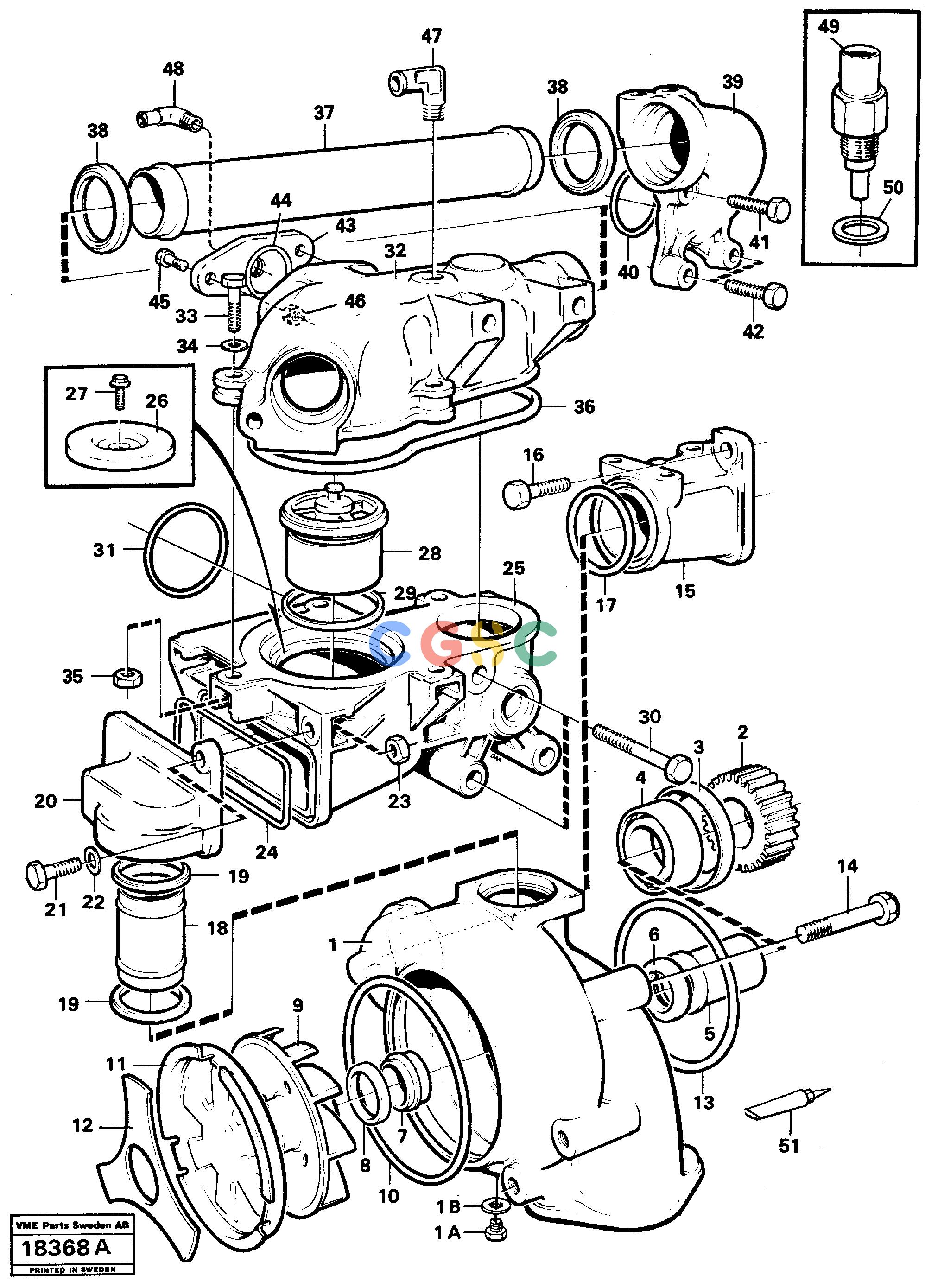

沃尔沃零件查询A25 VOLVO BM Water pump and thermostat housingVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
874 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1A. |
VOE947107
|
[0001] |
Flange screw
|
|
| 43. |
VOE11032177
|
[0001] |
Flange
|
|
| 44. |
VOE469477
|
[0001] |
Sealing ring
|
|
| 45. |
VOE13945444
|
[0002] |
Screw
|
|
| 46. |
VOE955782
|
[0002] |
Hexagon nut
|
|
| 47. |
VOE479953
|
[0001] |
Nipple
|
EXP.TANK/ EXP.TANK
|
| 48. |
VOE13961657
|
[0001] |
Nipple
|
HYTT VÄRME / CAB.HEAT
|
| 49. |
VOE4803719
|
[0001] |
Sensor
|
|
| 50. |
VOE13947624
|
[0001] |
Plane gasket
|
|
| 51. |
VOE1161277
|
[0004] |
Sealant
|
|
| 1B. |
VOE7011992
|
[0001] |
Gasket
|
|
| |
VOE276054
|
[0001] |
Water pump kit
|
|
| |
|
|
Water pump
|
|
| 2. |
VOE471501
|
[0001] |
Gear
|
|
| 3. |
VOE471493
|
[0001] |
Lock ring
|
|
| 4. |
VOE471499
|
[0001] |
Ball bearing
|
|
| |
VOE471500
|
[0001] |
Water pump
|
ERS AV 477397
|
| 5. |
|
[0001] |
Shaft
|
|
| 6. |
VOE958811
|
[0001] |
Sealing ring
|
|
| 7. |
VOE1676432
|
[0001] |
Sealing ring
|
FÖR/FOR 471500
|
| |
VOE1676432
|
[0001] |
Sealing ring
|
FÖR/FOR 477397
|
| 8. |
VOE1676432
|
[0001] |
Sealing ring
|
För/For 471500
|
| 9. |
VOE3183683
|
[0001] |
Impeller
|
|
| 10. |
VOE471497
|
[0001] |
O-ring
|
|
| 11. |
VOE3183650
|
[0001] |
Cover
|
FÖR/FOR 471500
|
| |
VOE3183650
|
[0001] |
Cover
|
FÖR/FOR 477397
|
| 12. |
VOE471495
|
[0001] |
Lock spring
|
|
| |
|
|
None
|
MO - 32161
|
| 13. |
VOE967344
|
[0001] |
O-ring
|
|
| 14. |
VOE60113105
|
[0004] |
Flange screw
|
|
| 15. |
VOE848131
|
[0001] |
Spacer
|
|
| 16. |
VOE60113094
|
[0002] |
Flange screw
|
|
| 17. |
VOE471629
|
[0001] |
Sealing ring
|
|
| 18. |
VOE471634
|
[0001] |
Tube
|
|
| 19. |
VOE469982
|
[0002] |
Sealing ring
|
|
| 20. |
VOE471822
|
[0001] |
Housing
|
|
| 21. |
VOE13945444
|
[0002] |
Screw
|
|
| 22. |
VOE13941907
|
[0002] |
Washer
|
|
| |
VOE477397
|
[0001] |
Water pump
|
MO 32162 -
|
| 23. |
VOE955782
|
[0002] |
Hexagon nut
|
|
| 24. |
VOE471816
|
[0001] |
Sealing ring
|
|
| 25. |
VOE471780
|
[0001] |
Thermostat housing
|
|
| 26. |
VOE471789
|
[0001] |
Seat
|
|
| 27. |
|
[0001] |
Screw
|
|
| 28. |
VOE8149182
|
[0001] |
Thermostat
|
|
| 29. |
VOE1544710
|
[0001] |
Sealing ring
|
|
| 30. |
VOE13965189
|
[0003] |
Screw
|
|
| 31. |
VOE477059
|
[0001] |
O-ring
|
|
| 32. |
VOE477905
|
[0001] |
Cover
|
|
| 1. |
|
[0001] |
Housing
|
|
| 33. |
VOE946470
|
[0004] |
Flange screw
|
|
| 34. |
VOE13941907
|
[0004] |
Washer
|
|
| 35. |
VOE955782
|
[0004] |
Hexagon nut
|
|
| 36. |
VOE471788
|
[0001] |
Sealing ring
|
|
| 37. |
VOE471636
|
[0001] |
Tube
|
|
| 38. |
VOE469982
|
[0002] |
Sealing ring
|
|
| 39. |
VOE465911
|
[0001] |
Connection pipe
|
|
| 40. |
VOE477059
|
[0001] |
O-ring
|
|
| 41. |
VOE60113098
|
[0001] |
Flange screw
|
|
| 42. |
VOE13965220
|
[0002] |
Screw
|
|
