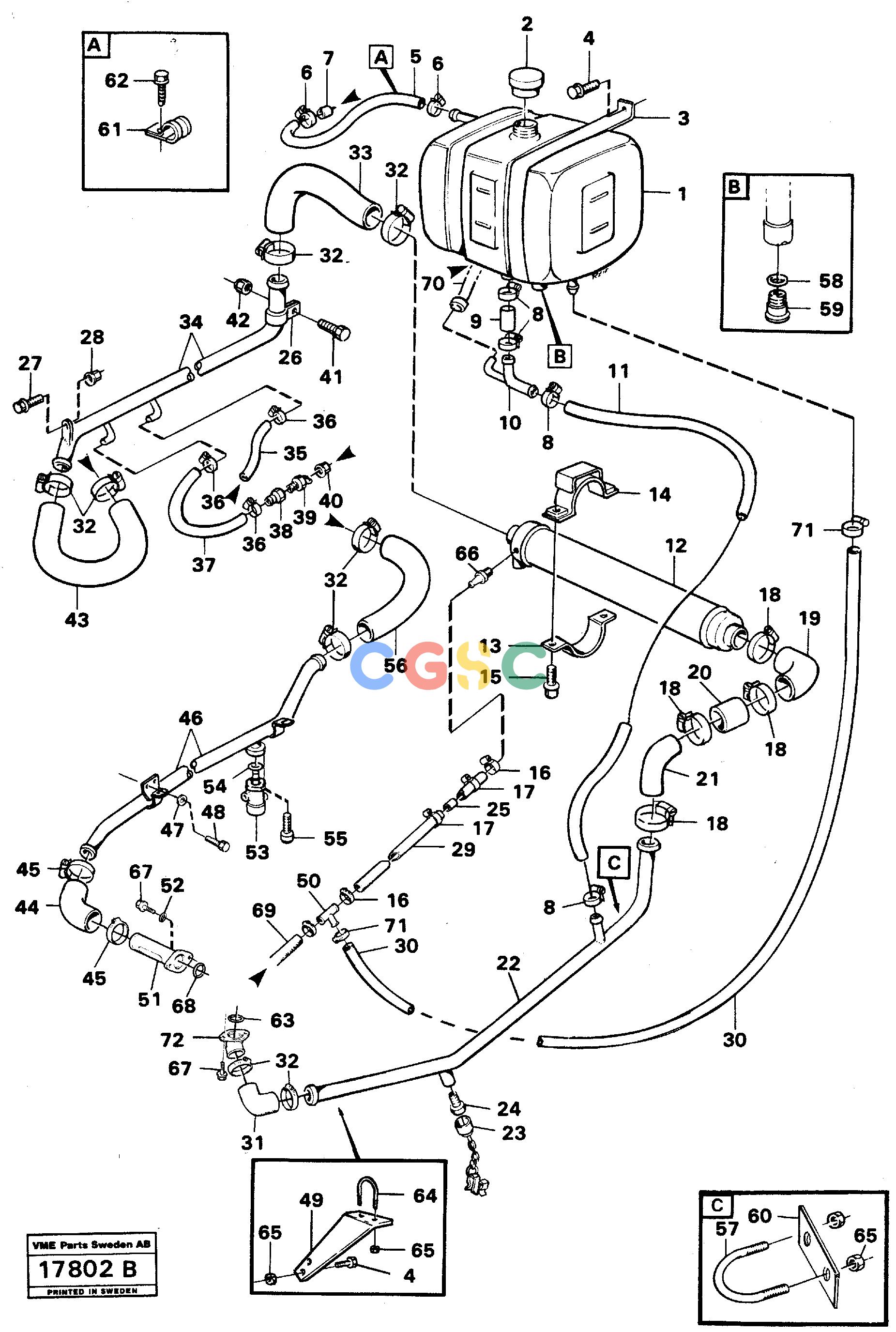

沃尔沃零件查询A25 VOLVO BM Cooling systemVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
262 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE943367
|
[REQ] |
Hose
|
L = 730
|
| 46. |
VOE11053083
|
[0001] |
Pipe
|
|
| 47. |
VOE13960141
|
[0002] |
Washer
|
|
| 48. |
VOE13965182
|
[0002] |
Screw
|
|
| 49. |
|
[0001] |
Bracket
|
|
| |
|
|
None
|
|
| 50. |
VOE795110
|
[0001] |
Tube
|
|
| 51. |
VOE11053072
|
[0001] |
Water pipe
|
|
| 52. |
VOE13960141
|
[0002] |
Washer
|
|
| 53. |
VOE11049702
|
[0001] |
Valve
|
|
| 54. |
VOE13960171
|
[0001] |
O-ring
|
|
| 6. |
VOE943470
|
[0002] |
Hose clamp
|
|
| 55. |
VOE963683
|
[0002] |
Hex. socket screw
|
|
| 56. |
VOE4821434
|
[0001] |
Radiator hose
|
|
| 57. |
VOE11055081
|
[0001] |
Clamp
|
|
| 58. |
VOE13960164
|
[0001] |
O-ring
|
|
| 59. |
VOE4804282
|
[0001] |
Plug
|
|
| 60. |
|
[0001] |
Plate
|
|
| 61. |
VOE952630
|
[0001] |
Clamp
|
|
| 62. |
VOE13948356
|
[0001] |
Flange screw
|
|
| 63. |
VOE977015
|
[0001] |
O-ring
|
|
| 64. |
VOE944026
|
[0002] |
Clamp
|
|
| 7. |
VOE11033572
|
[0002] |
Restrictor
|
|
| 65. |
VOE13945408
|
[0006] |
Nut
|
|
| 66. |
VOE479978
|
[0001] |
Nipple
|
|
| 67. |
VOE13946173
|
[0003] |
Screw
|
|
| 68. |
VOE977015
|
[0001] |
O-ring
|
L = 1530
|
| 69. |
VOE943368
|
[REQ] |
Hose
|
L = 1040
|
| |
|
|
None
|
|
| 70. |
VOE943368
|
[REQ] |
Hose
|
L = 140
|
| |
|
|
None
|
SEE GROUP 87
|
| 71. |
VOE943470
|
[0002] |
Hose clamp
|
|
| 72. |
VOE4965192
|
[0001] |
Coolant pipe
|
|
| 8. |
VOE943475
|
[0004] |
Hose clamp
|
|
| 9. |
VOE944386
|
[REQ] |
Hose
|
L = 90
|
| 1. |
VOE11110208
|
[0001] |
Expansion tank
|
|
| 10. |
VOE4737747
|
[0001] |
Manifold
|
|
| 11. |
VOE944386
|
[REQ] |
Hose
|
SER NO 4001 -, L=780
|
| 12. |
|
[0001] |
Oil cooler
|
|
| 13. |
VOE4771254
|
[0002] |
Support plate
|
|
| 14. |
VOE4771256
|
[0002] |
Bracket
|
|
| 15. |
VOE13945444
|
[0004] |
Screw
|
|
| 16. |
VOE13943472
|
[REQ] |
Hose clamp
|
|
| 17. |
VOE13945734
|
[0002] |
Clamp
|
|
| 18. |
VOE943479
|
[0004] |
Hose clamp
|
|
| 19. |
VOE4773776
|
[0001] |
Hose
|
|
| 2. |
VOE1542591
|
[0001] |
Cap
|
|
| 20. |
VOE11053325
|
[0001] |
Tube
|
|
| 21. |
VOE4773776
|
[0001] |
Hose
|
|
| 22. |
VOE11053324
|
[0001] |
Tube
|
|
| 23. |
VOE11147580
|
[0001] |
Dust cover
|
|
| 24. |
VOE13946121
|
[0001] |
Nipple
|
|
| 25. |
VOE4940148
|
[0001] |
Ring
|
|
| 26. |
VOE13947456
|
[0001] |
Clamp
|
|
| 27. |
VOE13946934
|
[0001] |
Screw
|
|
| 3. |
|
[0002] |
Strap
|
|
| 28. |
VOE13949278
|
[0002] |
Flange lock nut
|
|
| 29. |
VOE943368
|
[REQ] |
Hose
|
L = 570
|
| 30. |
VOE943367
|
[REQ] |
Hose
|
L = 1530
|
| |
VOE1508815
|
[0002] |
Rubber moulding
|
|
| 31. |
VOE4773776
|
[0001] |
Hose
|
|
| 32. |
VOE943479
|
[0006] |
Hose clamp
|
|
| 33. |
VOE4821434
|
[0001] |
Radiator hose
|
|
| 34. |
VOE4737510
|
[0001] |
Tube
|
|
| 35. |
VOE943367
|
[REQ] |
Hose
|
L = 250
|
| |
|
|
None
|
|
| 4. |
VOE13945444
|
[0006] |
Screw
|
|
| 36. |
VOE943470
|
[0004] |
Hose clamp
|
|
| 37. |
VOE943367
|
[REQ] |
Hose
|
L = 625
|
| |
|
|
None
|
|
| 38. |
VOE4737477
|
[0001] |
Nipple
|
|
| 39. |
VOE87502
|
[0001] |
Drain Cock
|
|
| 40. |
VOE191491
|
[0001] |
Wing nut
|
|
| 41. |
VOE13946934
|
[0001] |
Screw
|
|
| 42. |
VOE13971090
|
[0001] |
Lock nut
|
|
| 43. |
VOE4737586
|
[0001] |
Radiator hose
|
|
| 44. |
VOE4773776
|
[0001] |
Hose
|
|
| 45. |
VOE943479
|
[0002] |
Hose clamp
|
|
