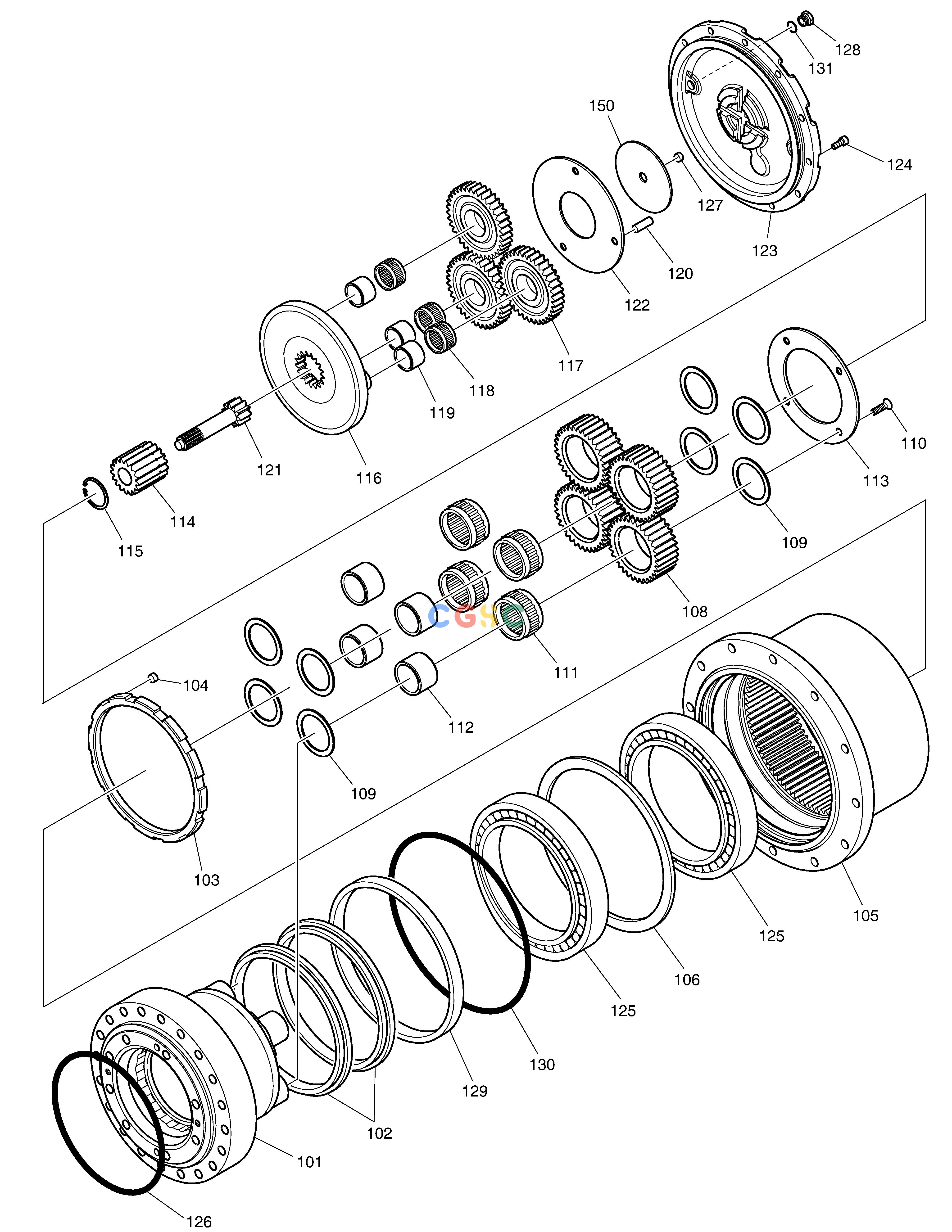

斗山零件查询TRAVEL REDUCTION GEAR DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
656 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 101. |
130713-00009
|
[1] |
SPINDLE
|
|
| 102. |
401111-00022
|
[2] |
|
|
| 103. |
120312-00084
|
[1] |
|
|
| 104. |
2181-1116D3
|
[3] |
PLUG;HEX. SOCKET
|
|
| 105. |
900122-00042
|
[1] |
|
|
| 106. |
111104-00093
|
[1] |
|
|
| 108. |
130418-00094
|
[4] |
|
|
| 109. |
120816-00032
|
[8] |
|
|
| 110. |
120705-00085
|
[4] |
|
|
| 111. |
140104-00020
|
[4] |
|
|
| 112. |
110917-00028
|
[4] |
|
|
| 113. |
250201-00666
|
[1] |
|
|
| 114. |
130425-00008
|
[1] |
|
|
| 115. |
S6500630
|
[1] |
|
|
| 116. |
110928-00034
|
[1] |
|
|
| 117. |
130418-00095
|
[3] |
|
|
| 118. |
140104-00021
|
[3] |
|
|
| 119. |
131002-00112
|
[3] |
|
|
| 120. |
S5741162
|
[3] |
PIN;SPRING
|
|
| 121. |
130412-00039
|
[1] |
|
|
| 122. |
250201-00667
|
[1] |
|
|
| 123. |
110508-00939
|
[1] |
|
|
| 124. |
S2212061
|
[12] |
BOLT;SOCKET M10X1.5X25
|
|
| 125. |
140101-00125
|
[2] |
|
|
| 126. |
2180-1217D151
|
[1] |
|
|
| 127. |
K9004304
|
[1] |
WASHER;THRUST
|
|
| 128. |
2181-1890D3
|
[3] |
PLUG
|
|
| 129. |
401107-00580
|
[1] |
|
|
| 130. |
S8012901
|
[1] |
|
|
| 131. |
S8000141
|
[3] |
O-RING
|
|
| 150. |
1.412-00157
|
[1] |
PLATE;THRUST
|
|
