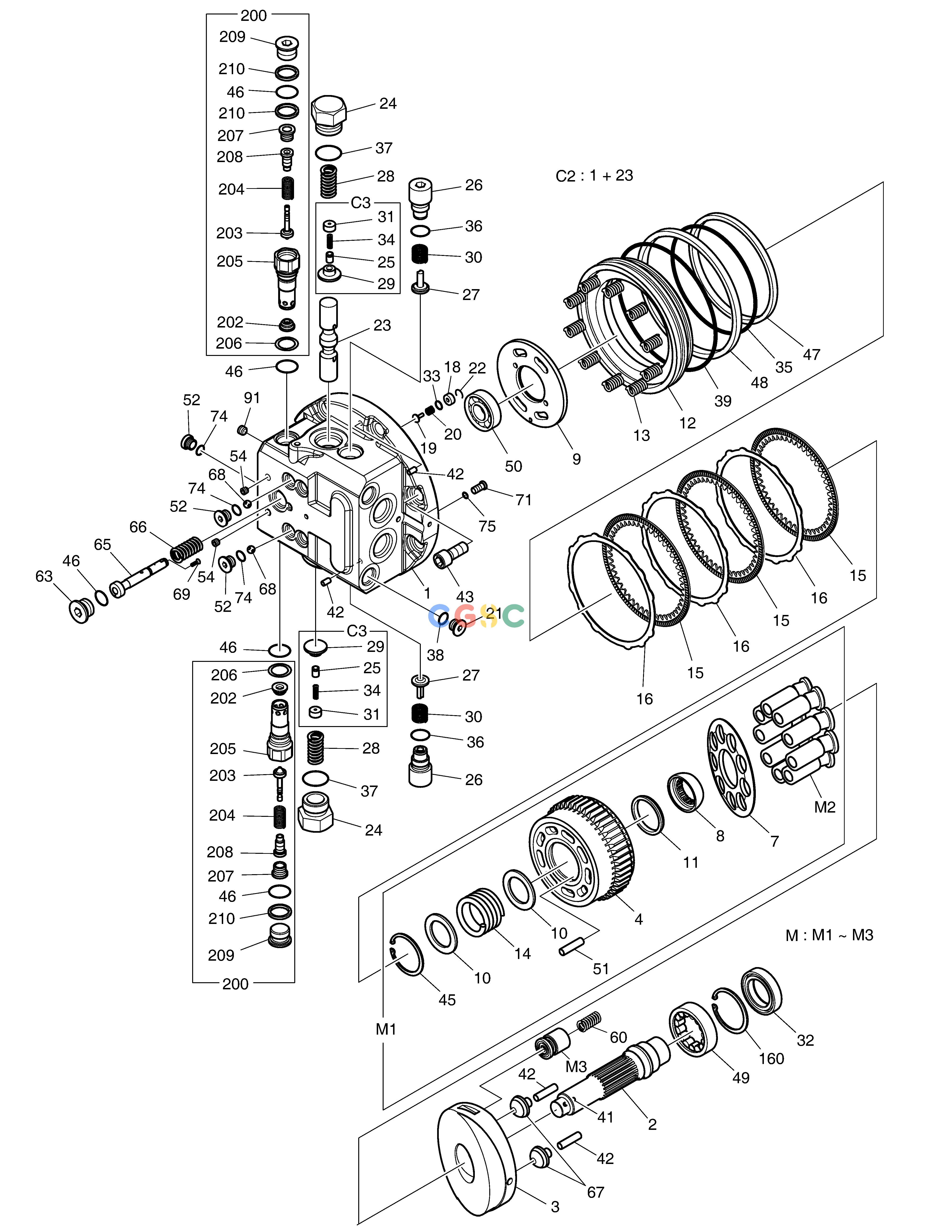

斗山零件查询TRAVEL MOTOR DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
667 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-00618A
|
[1] |
|
|
| 1. |
NA00915
|
[1] |
REAR FLANGE
|
|
| 10. |
K9001308
|
[2] |
WASHER
|
|
| 11. |
K9001305
|
[1] |
COLLAR
|
|
| 12. |
130602-00244
|
[1] |
|
|
| 13. |
111601-00146
|
[10] |
|
|
| 14. |
111601-00144
|
[1] |
SPRING
|
|
| 15. |
K9001313
|
[3] |
PLATE;FRICTION
|
|
| 16. |
K9001312
|
[3] |
PLATE;SEPARATION
|
|
| 160. |
S6510520
|
[1] |
RING;SNAP
|
|
| 18. |
1.427-00032
|
[1] |
. SEAT;VALVE
|
|
| 19. |
1.424-00011
|
[1] |
. PLUNGER,VALVE
|
|
| 2. |
130712-00225
|
[1] |
|
|
| 20. |
1.131-00177
|
[1] |
. SPRING
|
|
| 200. |
410127-00077
|
[2] |
|
|
| 202. |
NA01107
|
[1] |
. SEAT
|
|
| 203. |
NA00890
|
[1] |
. PLUNGER
|
|
| 204. |
NA01182
|
[1] |
. SPRING
|
|
| 205. |
NA00079
|
[1] |
BODY
|
|
| 206. |
NA01133
|
[1] |
. SHIM
|
|
| 207. |
NA00796
|
[1] |
PISTON
|
|
| 208. |
NA00996
|
[1] |
. ROD
|
|
| 209. |
NA00843
|
[1] |
PLUG
|
|
| 21. |
2181-1890D4
|
[1] |
PLUG
|
|
| 210. |
S8060181
|
[2] |
. RING;BACKUP
|
|
| 22. |
1.115-00139
|
[1] |
. RING;T-TYPE
|
|
| 23. |
NA01176
|
[1] |
. SPOOL;MAIN
|
|
| 24. |
1.181-00088
|
[2] |
. PLUG;VP
|
|
| 25. |
410207-00127
|
[1] |
|
|
| 26. |
430221-00198
|
[2] |
|
|
| 27. |
410104-00058
|
[2] |
|
|
| 28. |
1.131-00141
|
[2] |
. SPRING;MAIN
|
|
| 29. |
110956-00049
|
[1] |
|
|
| 3. |
400901-00022
|
[1] |
|
|
| 30. |
1.131-00107
|
[2] |
. SPRING;CHECK
|
|
| 31. |
110956-00050
|
[1] |
|
|
| 32. |
1.180-00518
|
[1] |
OIL;SEAL
|
|
| 33. |
S8000091
|
[1] |
O-RING
|
|
| 34. |
111601-00143
|
[1] |
|
|
| 35. |
1.180-00110
|
[1] |
|
|
| 36. |
S8000181
|
[2] |
O-RING
|
|
| 37. |
S8000261
|
[2] |
O-RING
|
|
| 38. |
S8000181
|
[1] |
O-RING
|
|
| 39. |
2180-1217D149
|
[1] |
O-RING
|
|
| 4. |
NA00074
|
[1] |
. BLOCK;CYLINDER
|
|
| 41. |
S5700751
|
[1] |
|
|
| 42. |
S5701491
|
[4] |
|
|
| 43. |
S2218361
|
[8] |
|
|
| 45. |
S6510500
|
[1] |
RING;SNAP
|
|
| 46. |
S8000161
|
[2] |
O-RING
|
|
| 46. |
S8000181
|
[2] |
O-RING
|
|
| 47. |
1.180-00109
|
[1] |
|
|
| 48. |
2180-1216D149
|
[1] |
O-RING
|
|
| 49. |
140107-00083
|
[1] |
|
|
| 50. |
S6002041
|
[1] |
BEARING;BALL
|
|
| 51. |
900131-00029
|
[5] |
ROLLER
|
|
| 52. |
2181-1890D2
|
[4] |
PLUG
|
|
| 54. |
181-00519
|
[7] |
PLUG
|
|
| 60. |
111601-00145
|
[1] |
|
|
| 63. |
2181-1890D4
|
[1] |
PLUG
|
|
| 65. |
410207-00351
|
[1] |
|
|
| 66. |
1.131-00047
|
[1] |
|
|
| 67. |
101560-00003
|
[2] |
|
|
| 68. |
S6250161
|
[2] |
. BALL;STEEL
|
|
| 69. |
120706-00013
|
[1] |
. SCREW,SET
|
|
| 7. |
K9001304
|
[1] |
PLATE;RETAINER
|
|
| 71. |
K9006184
|
[1] |
ORIFICE
|
|
| 74. |
S8000111
|
[4] |
O-RING
|
|
| 75. |
S8000071
|
[2] |
O-RING
|
|
| 8. |
K9001303
|
[1] |
BALL;THRUST
|
|
| 9. |
250201-00668
|
[1] |
|
|
| 91. |
2181-1116D1
|
[4] |
PLUG
|
|
| C1. |
430215-00582
|
[1] |
|
|
| C2. |
430215-00583
|
[1] |
|
|
| C3. |
110956-00048
|
[2] |
|
|
| M. |
170403-00097
|
[1] |
|
|
| M1. |
150102-00281
|
[1] |
|
|
| M2. |
130602-00242
|
[9] |
PISTON ASSY
|
|
| M3. |
130602-00243
|
[1] |
|
|
