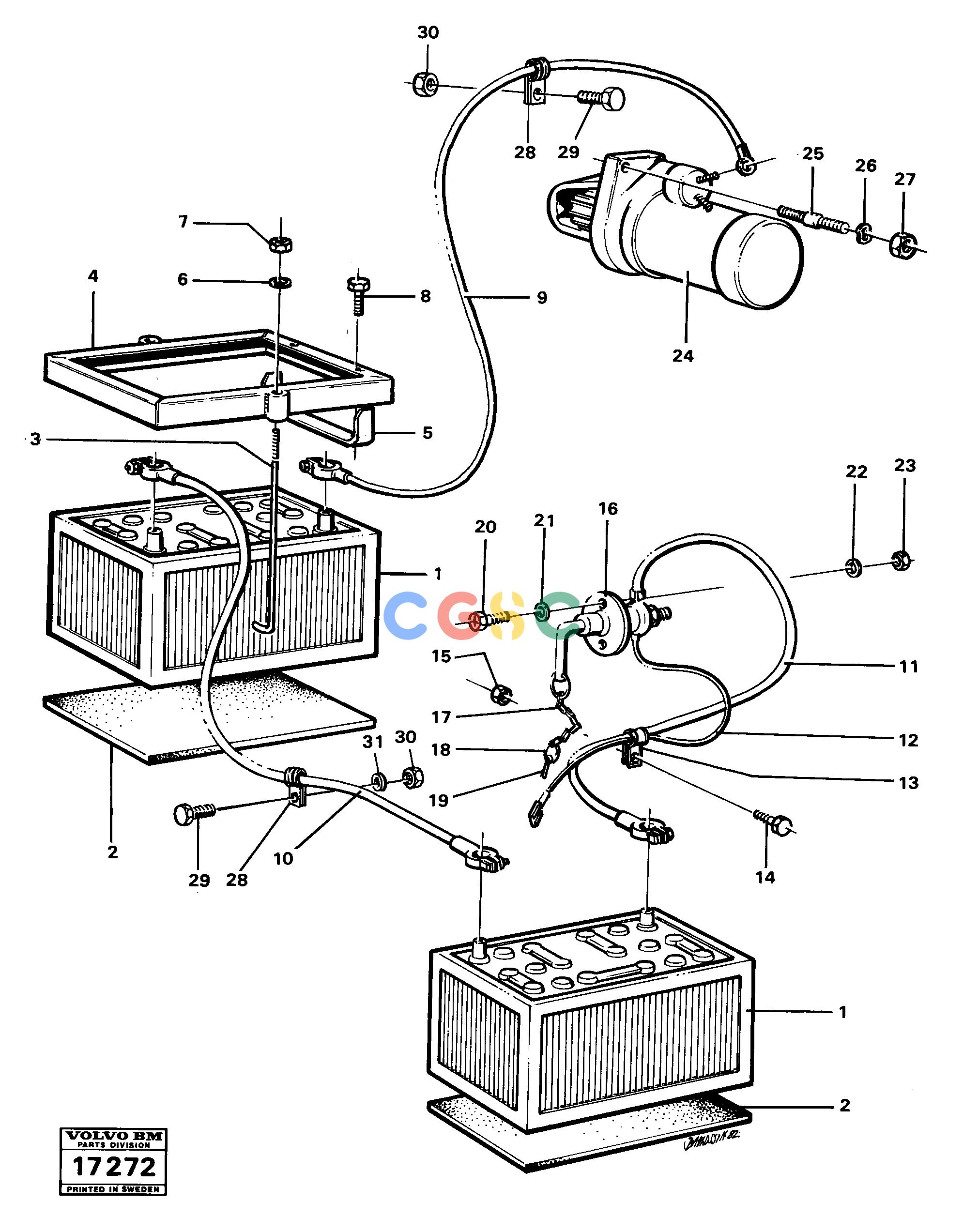

沃尔沃零件查询A25 VOLVO BM Battery with assembling detailsVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
668 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4864950
|
[0002] |
Plate
|
|
| 6. |
VOE976945
|
[0004] |
Washer
|
|
| 7. |
VOE971071
|
[0004] |
Hexagon nut
|
|
| 8. |
VOE13965176
|
[0004] |
Screw
|
|
| 9. |
VOE4940937
|
[0001] |
Battery cable
|
+
|
| 1. |
VOE1696588
|
[0002] |
Battery
|
12 V 145 AH
|
| 10. |
VOE4940936
|
[0001] |
Battery cable
|
|
| 11. |
VOE4864992
|
[0001] |
Battery cable
|
|
| 12. |
VOE4965334
|
[0001] |
Ground cable
|
|
| 13. |
VOE952628
|
[0002] |
Clamp
|
|
| 14. |
VOE13946934
|
[2] |
Screw
|
|
| 15. |
VOE13949278
|
[2] |
Flange lock nut
|
|
| 16. |
VOE870980
|
[1] |
Switch
|
SER NO - 5176
|
| |
VOE3987034
|
[1] |
Main switch
|
SER NO 5177 -
|
| |
VOE8157766
|
[1] |
Knob
|
|
| |
VOE1582293
|
[0001] |
Protecting moulding
|
SER NO 5177 -
|
| 17. |
VOE4880283
|
[0001] |
Chain
|
SER NO - 5176
|
| 2. |
VOE4713743
|
[0002] |
Rubber plate
|
|
| 18. |
VOE6626486
|
[0001] |
Ring
|
SER NO - 5176
|
| 19. |
VOE907834
|
[0001] |
Split pin
|
SER NO - 5176
|
| 20. |
VOE956063
|
[0002] |
Cross recessed screw
|
SER NO - 5176
|
| |
VOE13946544
|
[0002] |
Screw
|
SER NO 5177 -
|
| 21. |
VOE976945
|
[0002] |
Washer
|
SER NO - 5176
|
| 22. |
VOE955891
|
[0002] |
Plain washer
|
SER NO - 5176
|
| 23. |
VOE13963103
|
[0002] |
Lock nut
|
SER NO - 5176
|
| |
VOE13949278
|
[0002] |
Flange lock nut
|
SER NO 5177 -
|
| 24. |
|
[0001] |
Starter motor
|
SEE GROUP 33
|
| |
VOE11030013
|
[0001] |
Gasket
|
|
| 3. |
VOE6648185
|
[0004] |
Hook
|
|
| 25. |
VOE953067
|
[0003] |
Stud
|
|
| 26. |
VOE13940109
|
[0003] |
Lock washer
|
|
| 27. |
VOE13971095
|
[0003] |
Flange nut
|
|
| 28. |
VOE952638
|
[0006] |
Clamp
|
|
| 29. |
VOE13946934
|
[0006] |
Screw
|
|
| 30. |
VOE13949278
|
[0006] |
Flange lock nut
|
|
| 31. |
VOE955948
|
[0001] |
Toothed washer
|
|
| 4. |
VOE4864937
|
[0002] |
Frame
|
|
