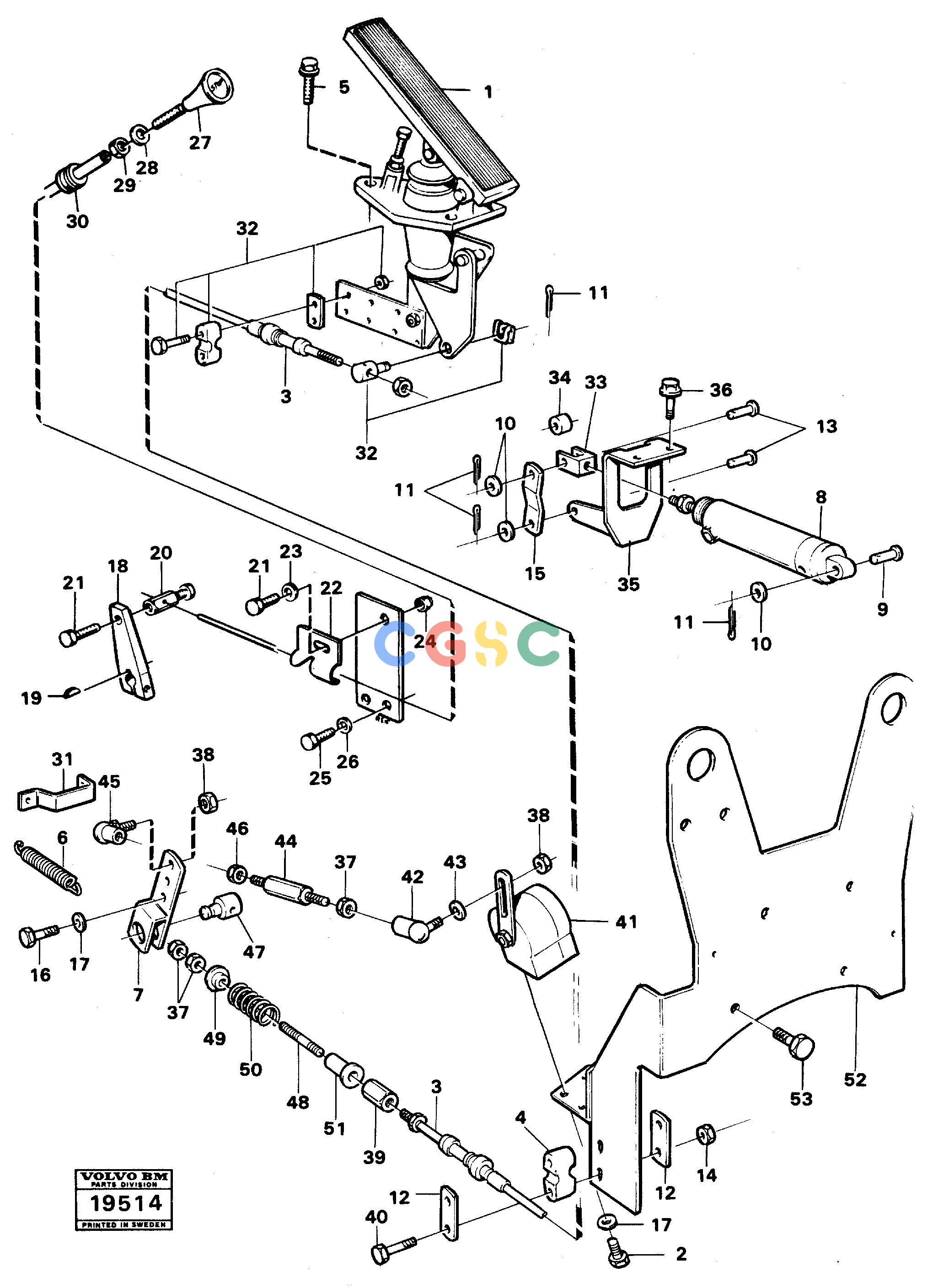

沃尔沃零件查询A25 VOLVO BM Regulator controlVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
679 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE11053921
|
[0001] |
Anchorage
|
|
| 47. |
VOE11052554
|
[0001] |
Shaft
|
SER NO 4357 -
|
| |
VOE4941211
|
[0001] |
Fork
|
SER NO - 4356
|
| 48. |
VOE11053179
|
[0001] |
Stud
|
SER NO 4357 -
|
| 49. |
VOE11053703
|
[0001] |
Washer
|
SER NO 4357 -
|
| 50. |
VOE11052045
|
[0001] |
Compression spring
|
SER NO 4357 -
|
| 51. |
VOE11053202
|
[0001] |
Spacer sleeve
|
SER NO 4357 -
|
| 52. |
VOE4965581
|
[0001] |
Bracket
|
|
| 53. |
VOE13965191
|
[0004] |
Screw
|
|
| 5. |
VOE13946934
|
[0003] |
Screw
|
|
| 6. |
VOE11180052
|
[0001] |
Spring
|
|
| 7. |
VOE4965372
|
[0001] |
Hand lever
|
SER NO - 4356
|
| |
VOE11052556
|
[0001] |
Hand lever
|
SER NO 4357 -
|
| 1. |
VOE4940759
|
[0001] |
Pedal
|
|
| 8. |
VOE4881691
|
[0001] |
Cylinder
|
ANTI GAS
|
| |
VOE11043099
|
[0001] |
Filter
|
|
| 9. |
VOE13964844
|
[0001] |
Clevis pin
|
|
| 10. |
VOE13960141
|
[0003] |
Washer
|
|
| 11. |
VOE907825
|
[0004] |
Split pin
|
|
| 12. |
VOE11053922
|
[0002] |
Plate
|
|
| 13. |
VOE964848
|
[0002] |
Clevis pin
|
|
| 14. |
VOE946577
|
[0002] |
Lock nut
|
|
| 15. |
VOE4965387
|
[0002] |
Flat bar steel
|
|
| 16. |
VOE13955271
|
[0002] |
Screw
|
|
| 2. |
VOE13946934
|
[0003] |
Screw
|
|
| 17. |
VOE955892
|
[0008] |
Plain washer
|
|
| 18. |
VOE241408
|
[0001] |
Hand lever
|
|
| 19. |
VOE7077582
|
[0001] |
Key
|
|
| 20. |
VOE4773915
|
[0001] |
Attaching Cube
|
|
| 21. |
VOE955246
|
[0002] |
Hexagon screw
|
|
| 22. |
VOE682040
|
[0001] |
Clamp
|
|
| 23. |
VOE13940090
|
[0002] |
Washer
|
|
| 24. |
VOE13963104
|
[0001] |
Lock nut
|
|
| 25. |
VOE955269
|
[0002] |
Hexagon screw
|
|
| 26. |
VOE955892
|
[0002] |
Plain washer
|
|
| 3. |
VOE4940780
|
[0001] |
Throttle control cable
|
CAB - 4492
|
| 27. |
VOE15140105
|
[0001] |
Wire control
|
|
| 28. |
VOE13940109
|
[0001] |
Lock washer
|
|
| 29. |
VOE940140
|
[0001] |
Hexagon nut
|
|
| 30. |
VOE941267
|
[0001] |
Plug
|
|
| 31. |
VOE11055076
|
[0001] |
Retainer
|
|
| 32. |
VOE4941212
|
[0001] |
Mounting kit
|
|
| 33. |
VOE4965389
|
[0001] |
Link fork
|
|
| 34. |
VOE4965388
|
[0001] |
Roller
|
|
| 35. |
|
[0001] |
Elbow
|
|
| 36. |
VOE946441
|
[0002] |
Flange screw
|
|
| |
VOE11059086
|
[0001] |
Throttle control cable
|
CAB 4493 -
|
| 37. |
VOE13955781
|
[0003] |
Nut
|
|
| 38. |
VOE13949278
|
[0002] |
Flange lock nut
|
|
| 39. |
VOE11053180
|
[0001] |
Spacer sleeve
|
SER NO 4357 -
|
| 40. |
VOE955252
|
[0002] |
Hexagon screw
|
|
| 41. |
VOE11053999
|
[0001] |
Load sensor
|
|
| 42. |
VOE959079
|
[0001] |
Angle ball joint
|
|
| 43. |
VOE60110304
|
[0001] |
Washer
|
|
| 44. |
VOE11057640
|
[0001] |
Control rod
|
|
| 45. |
VOE11053257
|
[0001] |
Angle ball joint
|
|
| 46. |
VOE928947
|
[0001] |
Nut
|
|
