神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K907 & MD180LC (1/87-12/06) (01-049) - TACHOMETER GEAR Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
832 次

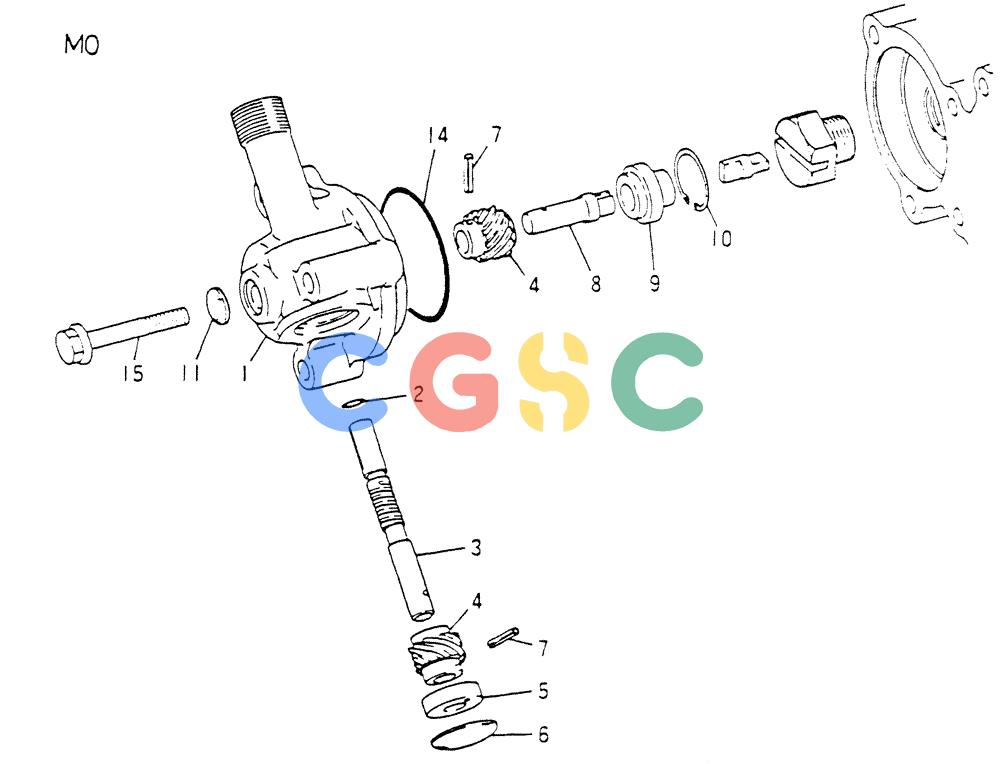

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-11. | VAME032821 | [1] | TACHOMETER DRIVE ASSY M22X1.5 | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONCASE.TACHO DRIVE |
| 2. | VAMH035109 | [1] | O-RING | |
| 3. | VA3122530300 | [1] | SHAFT | |
| 4. | VAME068007 | [2] | GEAR GEAR Z=14 | GEAR GEAR Z=14 |
| 5. | VAME038075 | [1] | BUSHING BUSHING | BUSHING BUSHING |
| 6. | VAMF665508 | [1] | PLUG,EXPANSION 28 | |
| 7. | VAMF472537 | [2] | PIN SPRING PIN,SPG 3X18 | PIN SPRING PIN,SPG 3X18 |
| 8. | VAME038073 | [1] | SHAFT,TACHO DRIVE | |
| 9. | VAME038074 | [1] | RETAINER | |
| 10. | VAMF522215 | [1] | RING,SNAP 25 | |
| 11. | VAMF665503 | [1] | PLUG | KOBPLUG,EXPANSION 15 |
| 14. | VAMH035108 | [1] | O-RING O-RING | O-RING O-RING |
| 15. | VAMF140235 | [1] | BOLT | KOBBOLT,FLANGE 8X50 |
