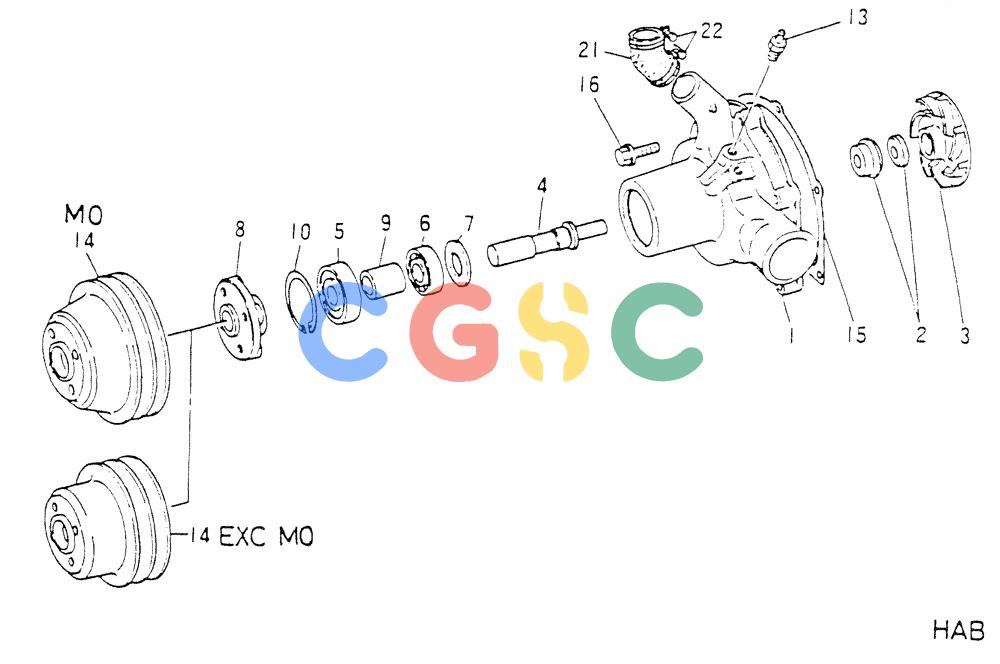

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K907 & MD180LC (1/87-12/06) (02-001) - WATER PUMP Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
814 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-13. | VAME037709 | [1] | WATER PUMP | KOBWATER PUMP ASSY, FOR M0 ONLY Superseded by part number: VAME996936 |
| 1. | VAME035288 | [1] | CASE,WATER PUMP, FOR M0 ONLY | |
| 2-6,15. | VAME999449 | [1] | KIT | KOBWATER PUMP REPAIR KIT, FOR M0 ONLY (FOR SERVICE ONLY) Superseded by part number: VAME997282 |
| 2. | VAMH034026 | [1] | SEAL | KOBSEAL,UNIT |
| 3. | VAME035215 | [1] | IMPELLER | KOBIMPELLER |
| 4. | VAME035294 | [1] | SHAFT | KOBSHAFT,WATER PUMP, FOR M0 ONLY |
| 5. | VAMS556185 | [1] | BEARING | KOBBEARING,BALL 6305Z Superseded by part number: VAF801206305 |
| 6. | VAMS556065 | [1] | BEARING | KOBBEARINCBALL 6205Z |
| 7. | VA3114502900 | [1] | WASHER | KOB |
| 8. | VAME037876 | [1] | FLANGE | KOBFLANGE, FOR M0 ONLY |
| 9. | VAME920030 | [1] | SPACER | KOBSPACER |
| 10. | VAMF522236 | [1] | SNAP RING | KOBRING,SNAP 62 |
| 13. | VAMF524002 | [1] | LUBE NIPPLE | KOBGREASE PT1/8 |
| 14. | VAME039577 | [1] | PULLEY | KOBPULLEY,WATER PUMP PCD155, FOR M0 ONLY |
| 14. | VAME047299 | [1] | PULLEY | KOBPULLEY,WATER PUMP PCD155,FOR M3 ONLY |
| 15. | VAME035016 | [1] | GASKET | KOBGASKET Superseded by part number: VAME075273 |
| 16. | VAMF140229 | [7] | BOLT | KOBBOLT,FLANGE 8X30 |
| 21. | VAME035255 | [1] | HOSE | KOBHOSE,BY-PASS |
| 22. | VAMF661019 | [2] | CLAMP HOSE CLAMP,HOSE 38 | CLAMP HOSE CLAMP,HOSE 38 |
