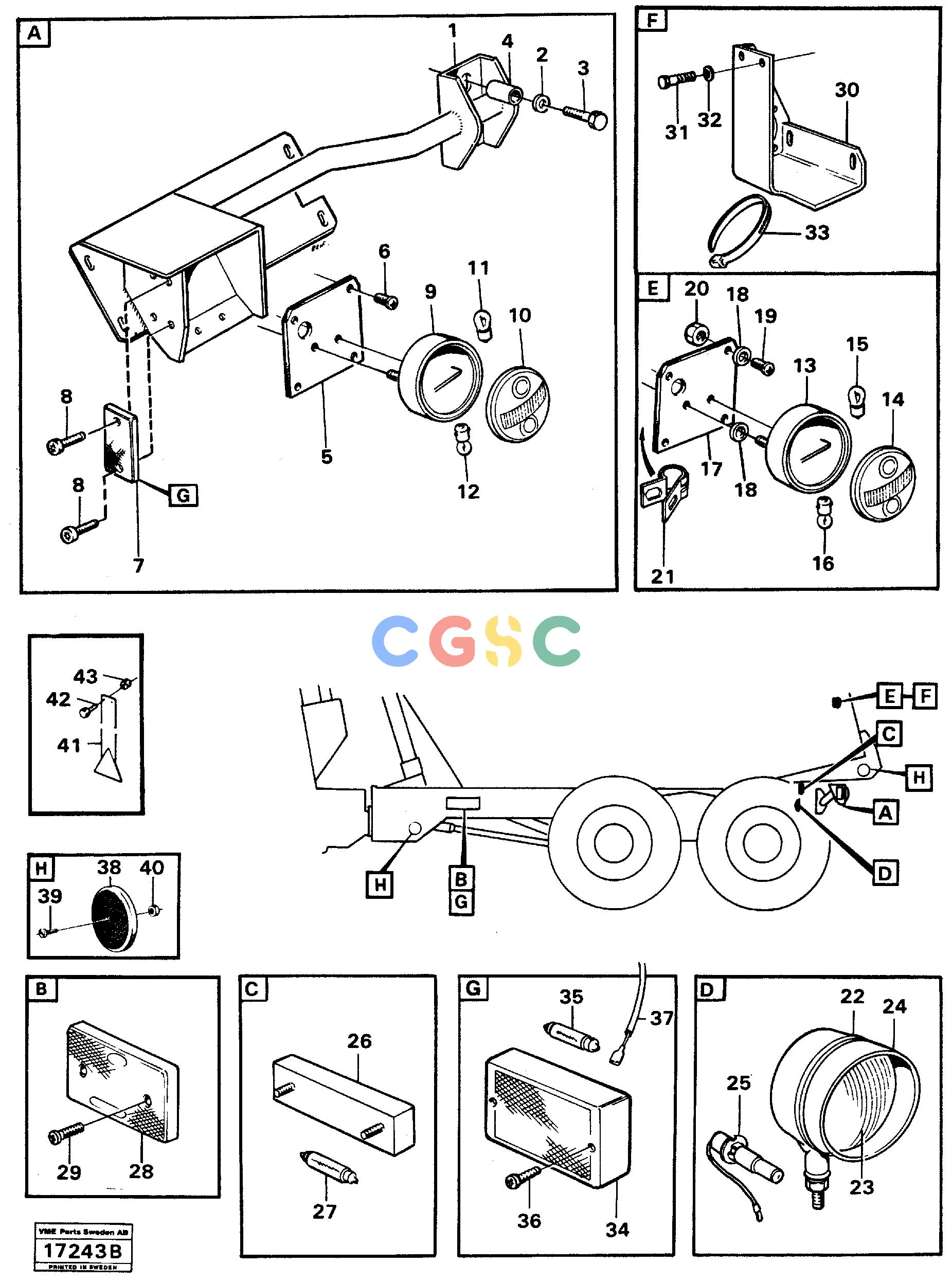

沃尔沃零件查询A25 VOLVO BM Lighting,trailerVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
143 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
|
[0004] |
Sleeve
|
|
| 5. |
VOE4864963
|
[0002] |
Plate
|
|
| 6. |
VOE13946501
|
[0008] |
Screw
|
|
| 7. |
VOE4864457
|
[0002] |
Side marking reflector
|
|
| 8. |
VOE955120
|
[0004] |
Cross recessed screw
|
|
| 1. |
VOE4864960
|
[0001] |
Lantern bracket
|
V
|
| 9. |
VOE4803218
|
[0002] |
Tail lamp
|
|
| 10. |
VOE6211443
|
[0002] |
Lens
|
|
| 11. |
VOE992521
|
[0004] |
Bulb
|
|
| 12. |
VOE992519
|
[0002] |
Bulb
|
|
| 13. |
VOE4803218
|
[0002] |
Tail lamp
|
|
| 14. |
VOE6211443
|
[0002] |
Lens
|
|
| 15. |
VOE992521
|
[0004] |
Bulb
|
21W
|
| 16. |
VOE992519
|
[0002] |
Bulb
|
5W
|
| 17. |
VOE4864963
|
[0002] |
Plate
|
|
| 18. |
VOE60110304
|
[0012] |
Washer
|
|
| |
VOE4864962
|
[0001] |
Lantern bracket
|
H
|
| 19. |
VOE13946934
|
[0007] |
Screw
|
|
| 20. |
VOE13949278
|
[0007] |
Flange lock nut
|
|
| 21. |
VOE952625
|
[0002] |
Clamp
|
|
| 22. |
VOE4928197
|
[0001] |
Headlamp
|
|
| 23. |
VOE6210462
|
[0001] |
Insert
|
|
| 24. |
VOE6210463
|
[0001] |
Rim
|
|
| 25. |
VOE992517
|
[0001] |
Bulb
|
70W
|
| 26. |
VOE6612583
|
[0002] |
Lamp
|
|
| 27. |
VOE19926
|
[0002] |
Bulb
|
7W
|
| 28. |
VOE4864457
|
[0002] |
Side marking reflector
|
|
| 2. |
VOE4860948
|
[0004] |
Washer
|
|
| 29. |
VOE955120
|
[0004] |
Cross recessed screw
|
|
| 30. |
VOE4940538
|
[0001] |
Bracket
|
V
|
| |
VOE4940539
|
[0001] |
Bracket
|
H
|
| 31. |
VOE13949773
|
[0008] |
Flange screw
|
|
| 32. |
VOE4737842
|
[0008] |
Washer
|
|
| 33. |
VOE4881440
|
[0002] |
Cable tie
|
|
| 34. |
VOE1576682
|
[0004] |
Side marking lamp
|
|
| |
|
|
None
|
|
| |
VOE1576684
|
[0004] |
Lens
|
|
| 35. |
VOE19926
|
[0004] |
Bulb
|
5W
|
| 3. |
VOE955372
|
[0004] |
Hexagon screw
|
|
| 36. |
VOE955120
|
[0008] |
Cross recessed screw
|
|
| 37. |
|
[0001] |
Wire harness
|
SEE GROUP 37
|
| 38. |
VOE4780974
|
[0004] |
Side marking reflector
|
|
| 39. |
VOE13947542
|
[0004] |
Screw
|
|
| 40. |
VOE13949278
|
[0004] |
Flange lock nut
|
|
| 41. |
VOE4822900
|
[0002] |
Reflecting sticker
|
|
| 42. |
VOE13965176
|
[0002] |
Screw
|
|
| 43. |
VOE13949278
|
[0002] |
Flange lock nut
|
|
