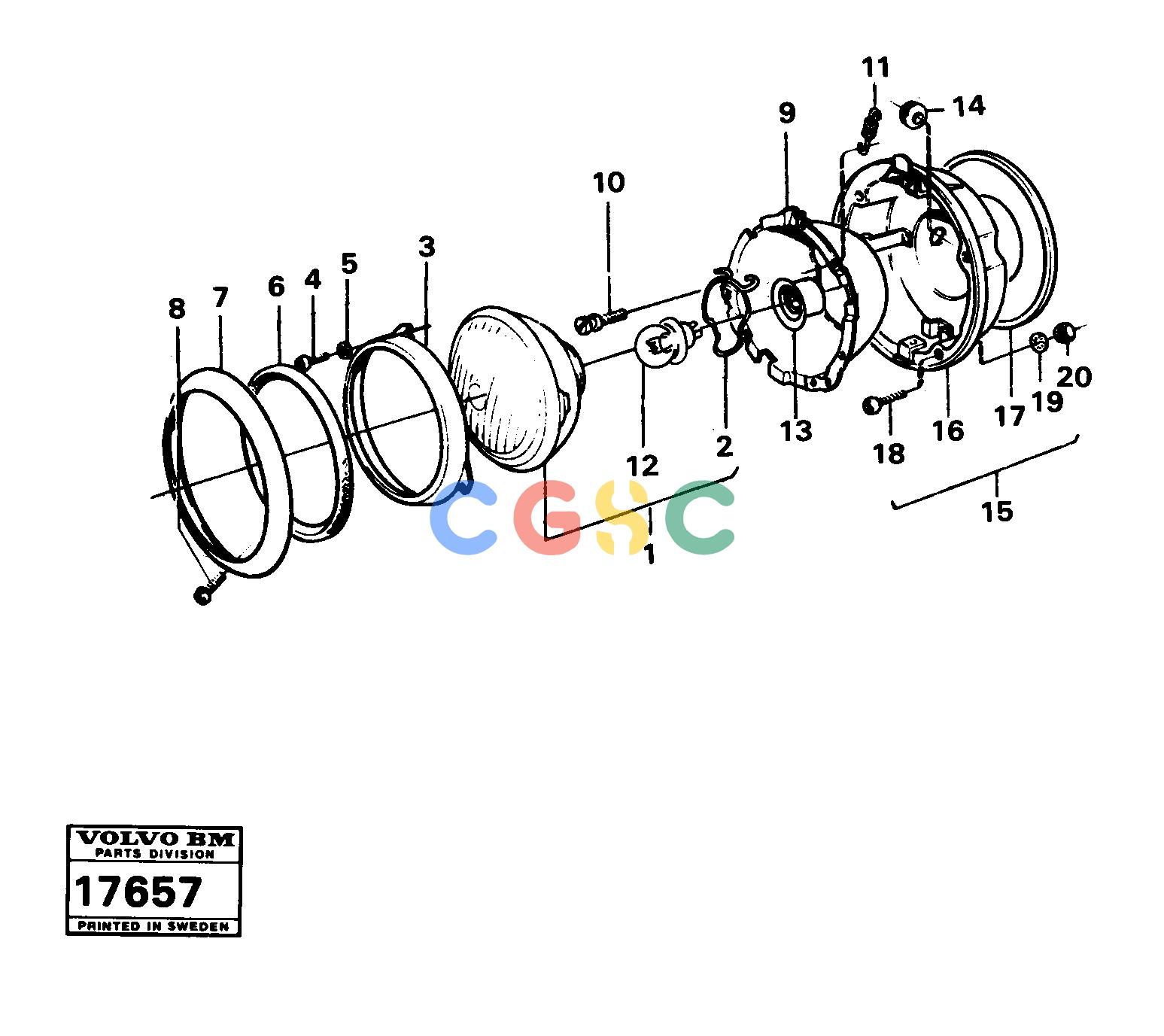

沃尔沃零件查询A25 VOLVO BM HeadlampVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
141 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 3. |
VOE671260
|
[0001] |
Retainer
|
|
| 4. |
VOE956060
|
[0003] |
Cross recessed screw
|
|
| 5. |
VOE13941904
|
[0003] |
Washer
|
|
| 6. |
VOE7088052
|
[0001] |
Sealing ring
|
|
| 7. |
VOE671739
|
[0001] |
Rim
|
|
| 1. |
VOE241067
|
[0001] |
Headlamp insert
|
|
| 8. |
VOE7115895
|
[0001] |
Screw
|
|
| 9. |
VOE7083590
|
[0001] |
Slide casing
|
|
| 10. |
VOE7087690
|
[0002] |
Slotted screw
|
|
| 11. |
VOE7083591
|
[0004] |
Spring
|
|
| 12. |
VOE942086
|
[0001] |
Bulb
|
50/55W
|
| 13. |
VOE11996275
|
[0001] |
Gaiter
|
|
| 14. |
VOE7088273
|
[0001] |
Rubber bushing
|
|
| 15. |
VOE273547
|
[0001] |
Protecting casing
|
|
| 16. |
|
[0001] |
Housing
|
|
| 17. |
|
[0001] |
Seal ring
|
|
| |
VOE240518
|
[0001] |
Insert
|
|
| 18. |
VOE950022
|
[0004] |
Cross recessed screw
|
|
| 19. |
VOE955946
|
[0004] |
Toothed washer
|
|
| 20. |
VOE13940092
|
[0004] |
Nut
|
|
| 2. |
VOE7240147
|
[0001] |
Spring
|
|
| |
VOE7054895
|
[0001] |
Headlamp
|
|
