凯斯零件查询(8460) - CASE IH ROUND BALER (S/N CFH0057418 & AFTER) (1/88-12/93) (9-50) - MESH WRAP KIT, SHIELDS AND SLIDE ASSEMBLIES, SERIAL NUMBER CFH0073203 THROUGH CFH0073271 Case Agriculture_凯斯Case_工程机械

凯斯零件查询(8460) - CASE IH ROUND BALER (S/N CFH0057418 & AFTER) (1/88-12/93) (9-50) - MESH WRAP KIT, SHIELDS AND SLIDE ASSEMBLIES, SERIAL NUMBER CFH0073203 THROUGH CFH0073271 Case Agriculture

广数供应链运营团队, 14 02月, 2025，浏览： 727 次

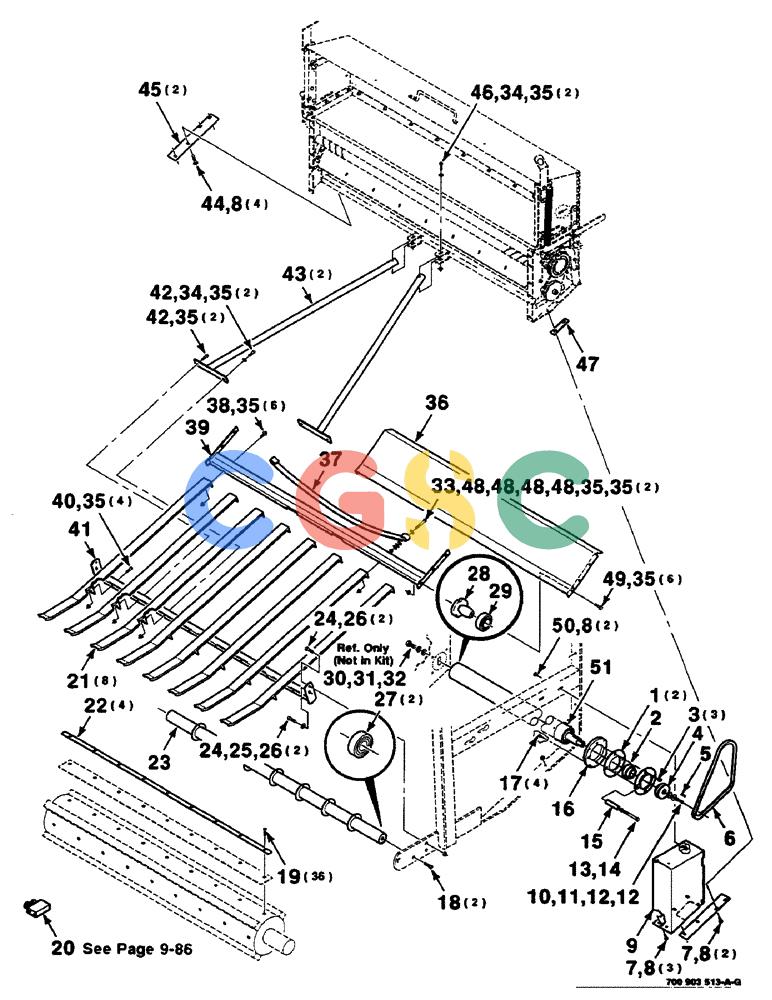

Pos.	Part No	Qty	Parts name	Comments
1.	50575	[2]	FLANGE	NNA Superseded by part number: 663562R1
2.	50468	[1]	SPHERICAL BEARING,38.1 mm ID x 80 mm OD x 22, 43.66 mm	IH - spherical
3.	409-7812	[3]	BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl	CAS 1/2-13 X 3/4 HFSS Superseded by part number: 86512178
4.	700714214	[1]	SHEAVE	CAS - steel
5.	T13450	[1]	KEY	CAS 1/4 X 1-1/4 KEY
6.	700714215	[1]	V-BELT,1066.80 mm L	CAS
7.	121-226	[5]	SERRATED BOLT,Hex, 3/8" - 16 x 1"	CAS Superseded by part number: 87034804
8.	231-5146	[11]	FLANGE NUT,3/8"-16	CAS Superseded by part number: 72187068, 247780
9.	700130721	[1]	SHIELD	CAS
10.	413-612	[1]	BOLT,Hex, 3/8" - 16 x 3/4", Gr 5	CAS Superseded by part number: 72187204, 86500692
11.	492-11038	[1]	LOCK WASHER,3/8"	CAS Superseded by part number: 80680, 72187249
12.	700710049	[2]	WASHER	CAS 3/8 FENDER WASHER
13.	413-864	[1]	BOLT,Hex, 1/2" - 13 x 4", Gr 5	CAS 1/2-13 X 4 C Superseded by part number: 86505993
14.	80679	[1]	LOCK WASHER,1/20.507 CST ZND	NH WASHER, LOCK, 1/2"
15.	6598684	[1]	BUSHING	CAS SPACER
16.	700130720	[1]	ADAPTER	CAS SPACER
17.	409-7512	[4]	BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl	CAS Hex Flg, 5/16-18 x 3/4", Serr Superseded by part number: 145913, 72187186
18.	61-43820	[2]	HEX SOC SCREW,FLAT, 3/8" x 1-1/4"	CAS 3/8-16 X 1-1/4 HSFCHCS Superseded by part number: 82039
19.	164-40	[36]	HEX SOC SCREW,Flat Hd, 5/16" - 18 x 3/4"	CAS 5/16-18 X 3/4 HSFCHCS SPL. Superseded by part number: 61-43112
20.	700711967	[1]	VALVE	CAS ASSEMBLY - control
21.	700125786	[8]	SLIDE	HFI WA
22.	700122995	[4]	STRAP	HFI
23.	700125801	[1]	ROLLER	CAS ASSEMBLY (Includes item 27)
24.	413-620	[2]	BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5	CAS C Hex, 3/8"-16 x 1 1/4", G5, Full Thd Superseded by part number: 72187207, 88011
25.	496-11041	[2]	WASHER,13/32" x 13/16" x .065", HDN	CAS 3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
26.	232-5316	[2]	FLANGE NUT,Flg, 3/8"-16	CAS 3/8-16 HFTLN GR/G Superseded by part number: 86521609
27.	586156R92	[2]	BEARING, ROLLER, CYL,0.7505" ID x 47 mm OD x 0.8437, 0.53125"	IH BEARING - cylindrical Superseded by part number: 76802
28.	700100927	[1]	HUB	L
29.	8050825	[1]	BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm	L - cylindrical Superseded by part number: F82059
30.	413-1228	[1]	BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5	CAS 3/4-10 x 1-3/4 C Superseded by part number: 88725
31.	492-11075	[1]	LOCK WASHER,3/4"	CAS 3/4" Superseded by part number: 87340
32.	705566	[1]	WASHER	IH 3/4 HARDENED PLAIN WASHER
33.	413-548	[2]	BOLT,Hex, 5/16" - 18 x 3", Gr 5	CAS Superseded by part number: 88731
34.	496-21034	[4]	WASHER,11/32" x 11/16" x 0.89", HDN	CAS Superseded by part number: 86637953
35.	231-5145	[26]	SERRATED NUT,Flg, USR, 5/16"-18	CAS NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
36.	700125804	[1]	SHIELD	HFI
37.	700710880	[1]	SPRING	CAS - leaf
38.	121-115	[6]	SERRATED BOLT,Hex, 5/16" - 18 x 3/4"	CAS
39.	700125805	[1]	SUPPORT	HFI WA
40.	413-532	[4]	BOLT,Hex, 5/16" - 18 x 2", Gr 5	CAS Superseded by part number: 9636711
41.	700125790	[1]	SUPPORT	HFI WA
42.	413-536	[4]	BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5	CAS Hex, 5/16-18 X 2-1/4 C Superseded by part number: 86505972
43.	700125793	[2]	SUPPORT	HFI WA
44.	434-616	[4]	CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5	CAS 3/8-16 X 1 RHSNB Superseded by part number: 80280503
45.	700125905	[2]	PLATE	HFI
46.	413-540	[2]	BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5	CAS Superseded by part number: 72187202, 88346
47.	700130722	[1]	SHIM	CAS
48.	495-61034	[8]	WASHER,0.34" ID x 0.88" OD x 0.06" Thk	CAS 5/16 WIDE PLAIN WASHER
49.	433-512	[6]	CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5	CAS Superseded by part number: 280327
50.	409-7612	[2]	BOLT,3/8"-16 x 1.09" OAL	CAS 3/8-16 X 3/4 HWHMS Superseded by part number: 72187187, 255918
51.	700130723	[1]	ROLLER	CAS ASM. - drive (Includes items 28 & 29)
