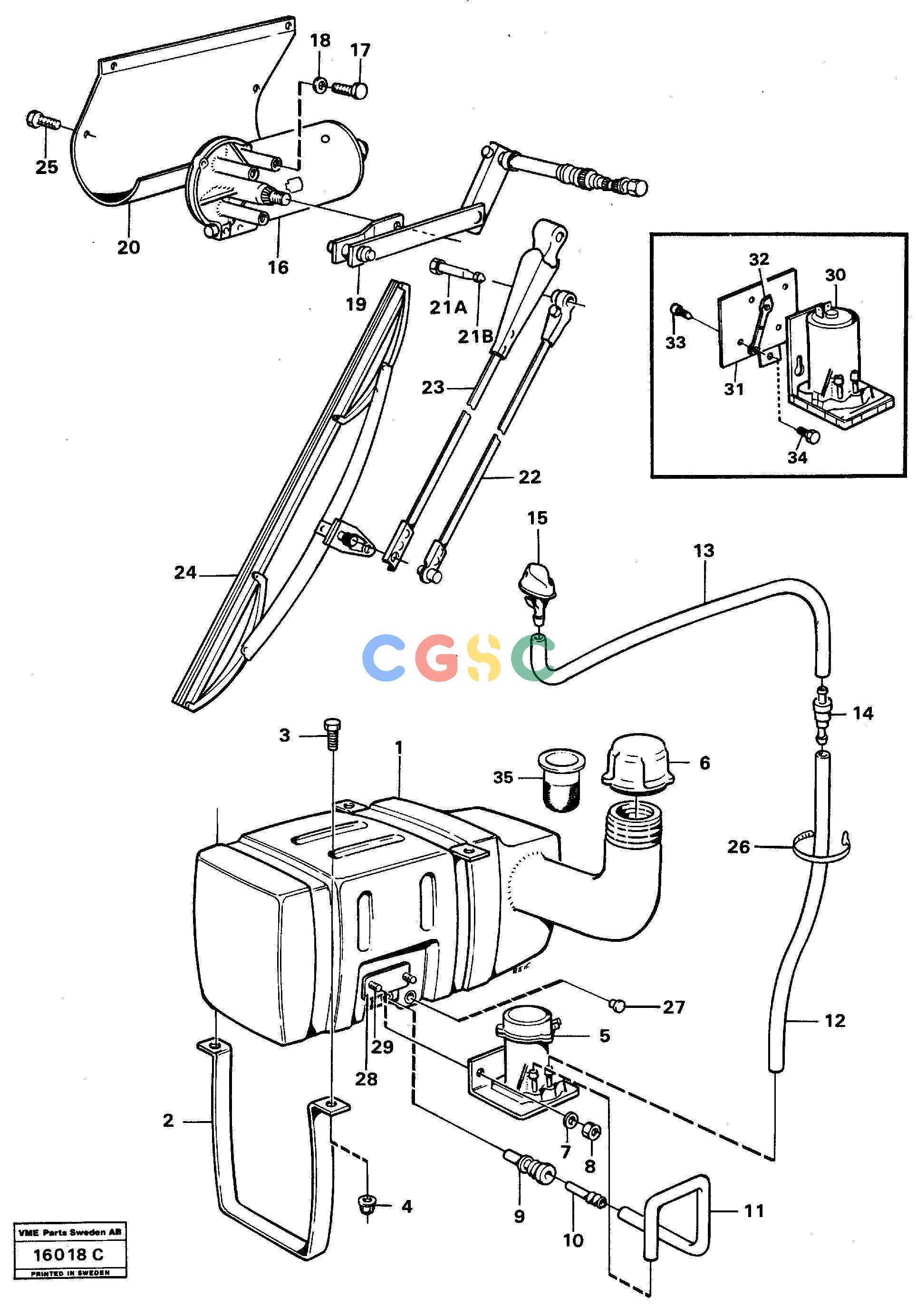

沃尔沃零件查询A25 VOLVO BM Windscreen washer and wiperVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
703 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE1507689
|
[0001] |
Washer motor
|
SER NO - 5165
|
| 6. |
VOE4965040
|
[0001] |
Cover
|
|
| 7. |
VOE955891
|
[0002] |
Plain washer
|
SER NO - 5165
|
| 8. |
VOE955779
|
[0002] |
Hexagon nut
|
SER NO - 5165
|
| 9. |
VOE1504805
|
[0001] |
Plug
|
|
| 1. |
VOE4940515
|
[0001] |
Water reservoir
|
|
| 10. |
VOE331810
|
[0001] |
Hose nipple
|
|
| 11. |
VOE943727
|
[REQ] |
Hose
|
L=200
|
| 12. |
VOE943727
|
[REQ] |
Hose
|
L=300
|
| 13. |
VOE943727
|
[REQ] |
Hose
|
L=300
|
| 14. |
VOE667352
|
[0001] |
Non-return valve
|
|
| 15. |
VOE672631
|
[0001] |
Nozzle
|
|
| 16. |
VOE4803342
|
[0001] |
Wiper motor
|
|
| 17. |
VOE955269
|
[0003] |
Hexagon screw
|
|
| 18. |
VOE13941906
|
[0003] |
Washer
|
|
| 19. |
VOE4880051
|
[0001] |
Shaft
|
|
| 2. |
VOE11000141
|
[0002] |
Strip
|
|
| 20. |
|
[0001] |
Cap
|
|
| 21A. |
VOE4787862
|
[0001] |
Bearing bolt
|
|
| 21B. |
VOE190566
|
[0001] |
Cap nut
|
|
| 22. |
VOE11705705
|
[0001] |
Arm
|
|
| 23. |
VOE11711432
|
[0001] |
Wiper arm
|
|
| 24. |
VOE4880234
|
[0001] |
Wiper blade
|
|
| 25. |
VOE965400
|
[0004] |
Cross recessed sems screw
|
|
| 26. |
VOE4821292
|
[0005] |
Cable tie
|
|
| 27. |
VOE941267
|
[0001] |
Plug
|
|
| 28. |
VOE1508205
|
[0001] |
Bracket
|
SER NO - 5165
|
| 3. |
VOE13946934
|
[0004] |
Screw
|
|
| 29. |
VOE13980220
|
[0002] |
Six point socket screw
|
SER NO - 5165
|
| 30. |
VOE1585878
|
[0001] |
Washer pump
|
SER NO 5166 -
|
| 31. |
VOE1589494
|
[0001] |
Bracket
|
SER NO 5166 -
|
| 32. |
VOE1587919
|
[0001] |
Attaching lug
|
SER NO 5166 -
|
| 33. |
VOE955120
|
[0002] |
Cross recessed screw
|
SER NO 5166 -
|
| 34. |
VOE13947542
|
[0001] |
Screw
|
SER NO 5166 -
|
| 35. |
VOE1577712
|
[0001] |
Strainer
|
SER NO 5112 -
|
| 4. |
VOE13949278
|
[0004] |
Flange lock nut
|
|
