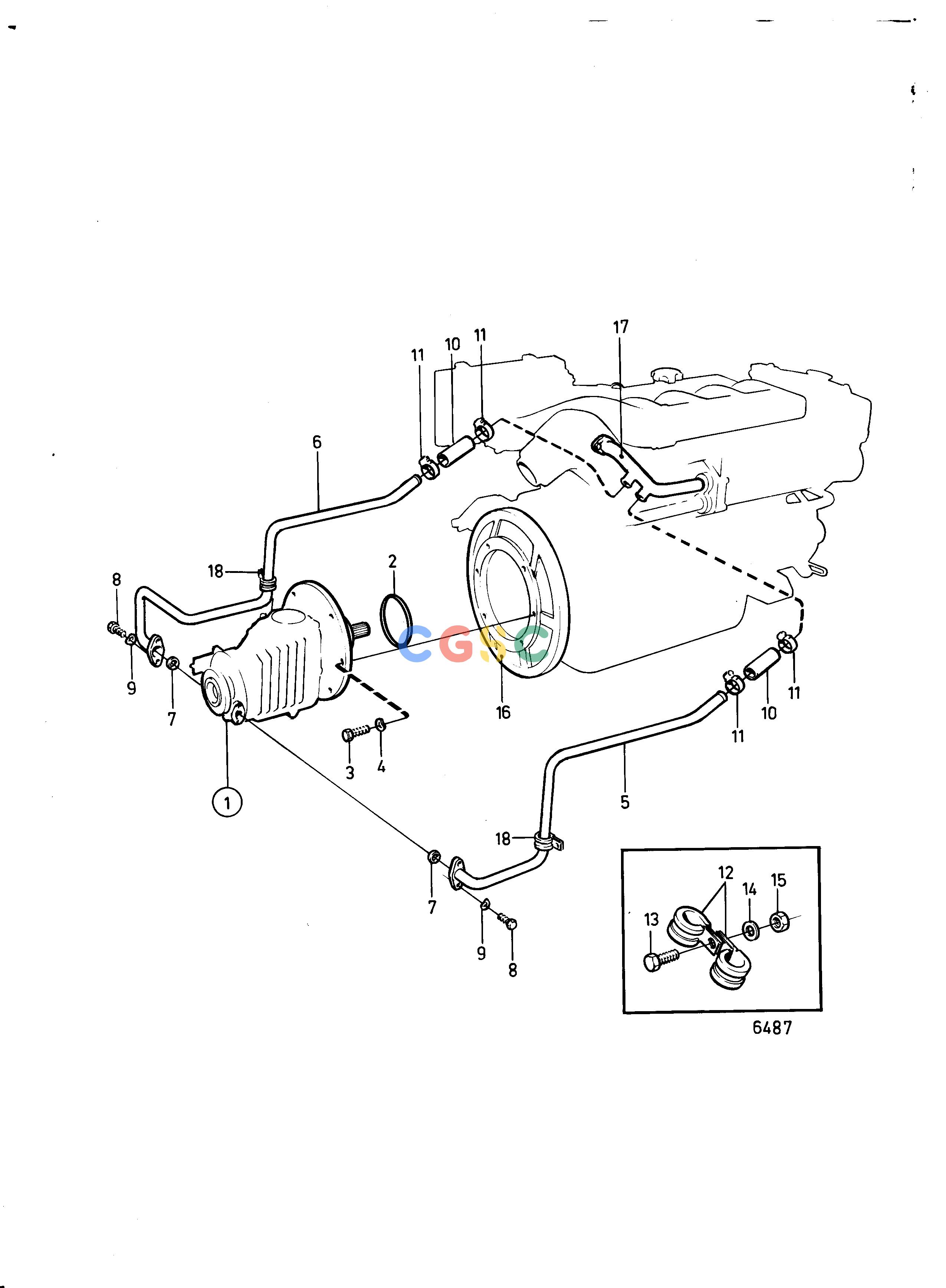

沃尔沃零件查询AD30A; AQAD30A; MD30A; TAMD30A; TMD30A; AD30; AQAD30; MD30; TAMD30; TMD30TransmissionsConnecting Components Reverse Gear MS2BEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
682 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
852730
|
[1] |
Reversing gear
|
|
| 1. |
|
|
|
See group 4B
|
| 1. |
852731
|
[1] |
Reversing gear
|
Ratio 3,02:1
|
| 2. |
925260
|
[1] |
O-ring
|
|
| 3. |
955319
|
[6] |
Hexagon screw
|
|
| 4. |
941908
|
[6] |
Spring washer
|
|
| 5. |
846082
|
[1] |
Coolant pipe
|
|
| 6. |
846083
|
[1] |
Coolant pipe
|
|
| 7. |
418445
|
[2] |
Sealing ring
|
|
| 8. |
955270
|
[4] |
Hexagon screw
|
|
| 9. |
941906
|
[4] |
Spring washer
|
|
| 10. |
952969
|
[1] |
Hose
|
L=2X55mm
|
| 11. |
943473
|
[4] |
Hose clamp
|
|
| 12. |
952629
|
[2] |
Clamp
|
|
| 13. |
955269
|
[1] |
Hexagon screw
|
|
| 14. |
955892
|
[1] |
Washer
|
|
| 15. |
955781
|
[1] |
Hexagon nut
|
|
| 16. |
846761
|
[1] |
Flywheel housing
|
See group 2A
|
| 17. |
846770
|
[1] |
Tube
|
See group 2B
|
| 18. |
1258633
|
[2] |
Clamp
|
|
