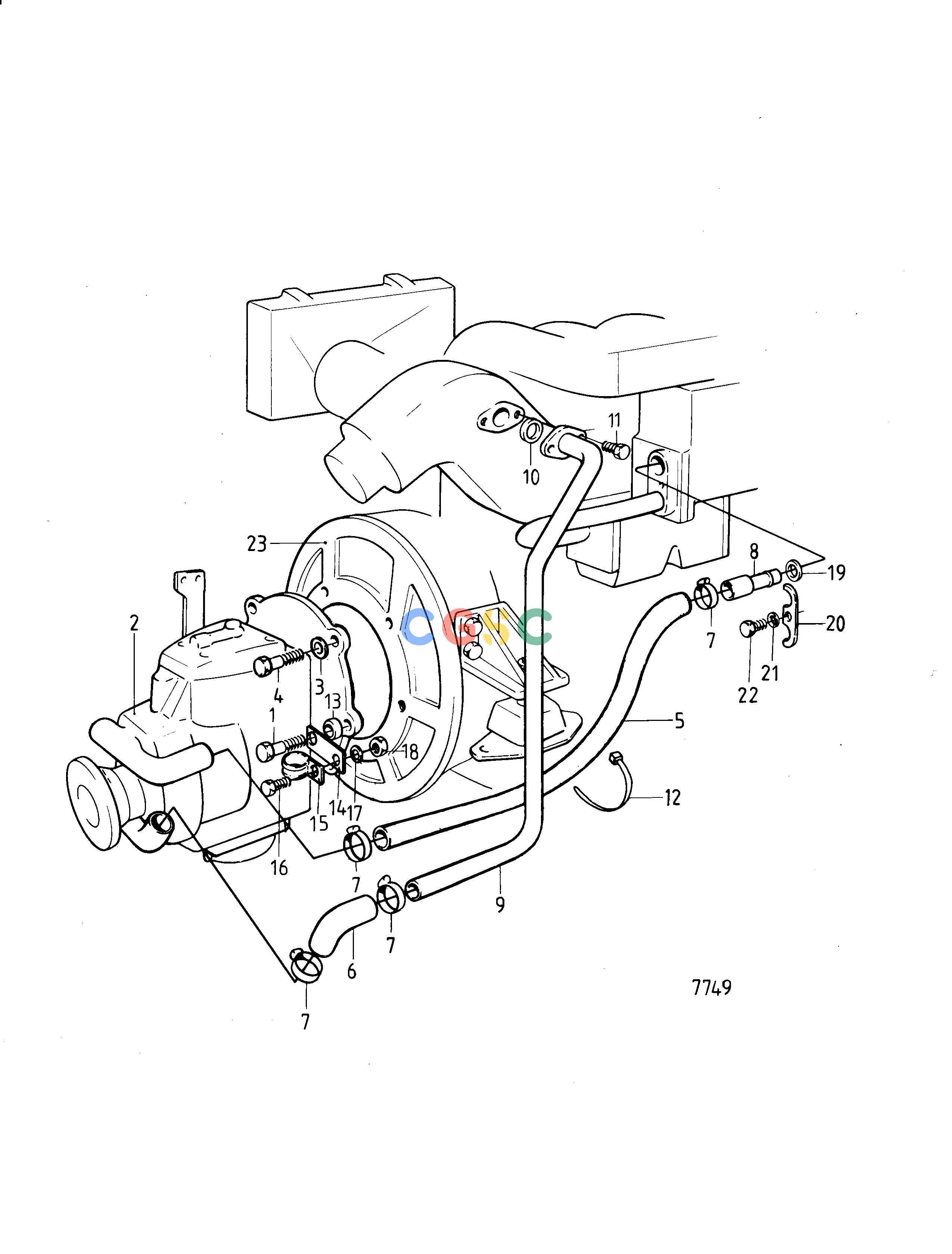

沃尔沃零件查询AD30A; AQAD30A; MD30A; TAMD30A; TMD30A; AD30; AQAD30; MD30; TAMD30; TMD30TransmissionsConnecting Components Reverse Gear MS3CEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
329 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
955321
|
[1] |
Hexagon screw
|
|
| 2. |
852502
|
[1] |
Reversing gear
|
Replaced by reverse gear-853398 and connection kit-853774, Ratio 1,93:1
|
| 2. |
|
|
|
See group 4B
|
| 2. |
852503
|
[1] |
Reversing gear
|
Replaced by reverse gear-853399 and connection kit-853774, Ratio 2,73:1
|
| 3. |
941908
|
[6] |
Spring washer
|
|
| 4. |
955319
|
[6] |
Hexagon screw
|
|
| 5. |
949315
|
[1] |
Rubber hose
|
L=680mm
|
| 6. |
845792
|
[1] |
Connecting hook
|
|
| 7. |
994561
|
[4] |
Hose clamp
|
|
| 8. |
847105
|
[1] |
Pipe
|
|
| 9. |
845714
|
[1] |
Coolant pipe
|
|
| 10. |
842913
|
[1] |
Sealing ring
|
|
| 11. |
955271
|
[2] |
Hexagon screw
|
|
| 12. |
949668
|
[1] |
Cable tie
|
|
| 13. |
820506
|
[1] |
Spacer sleeve
|
|
| 14. |
965535
|
[1] |
Bracket
|
|
| 15. |
952635
|
[1] |
Clamp
|
|
| 16. |
955271
|
[1] |
Hexagon screw
|
|
| 17. |
955892
|
[1] |
Washer
|
|
| 18. |
955781
|
[1] |
Hexagon nut
|
|
| 19. |
858986
|
[1] |
Sealing ring
|
(842744)
|
| 20. |
829691
|
[1] |
Retainer
|
See group 2B
|
| 21. |
941906
|
[1] |
Spring washer
|
See group 2B
|
| 22. |
955270
|
[1] |
Hexagon screw
|
See group 2B
|
| 23. |
829489
|
[1] |
Cap
|
|
