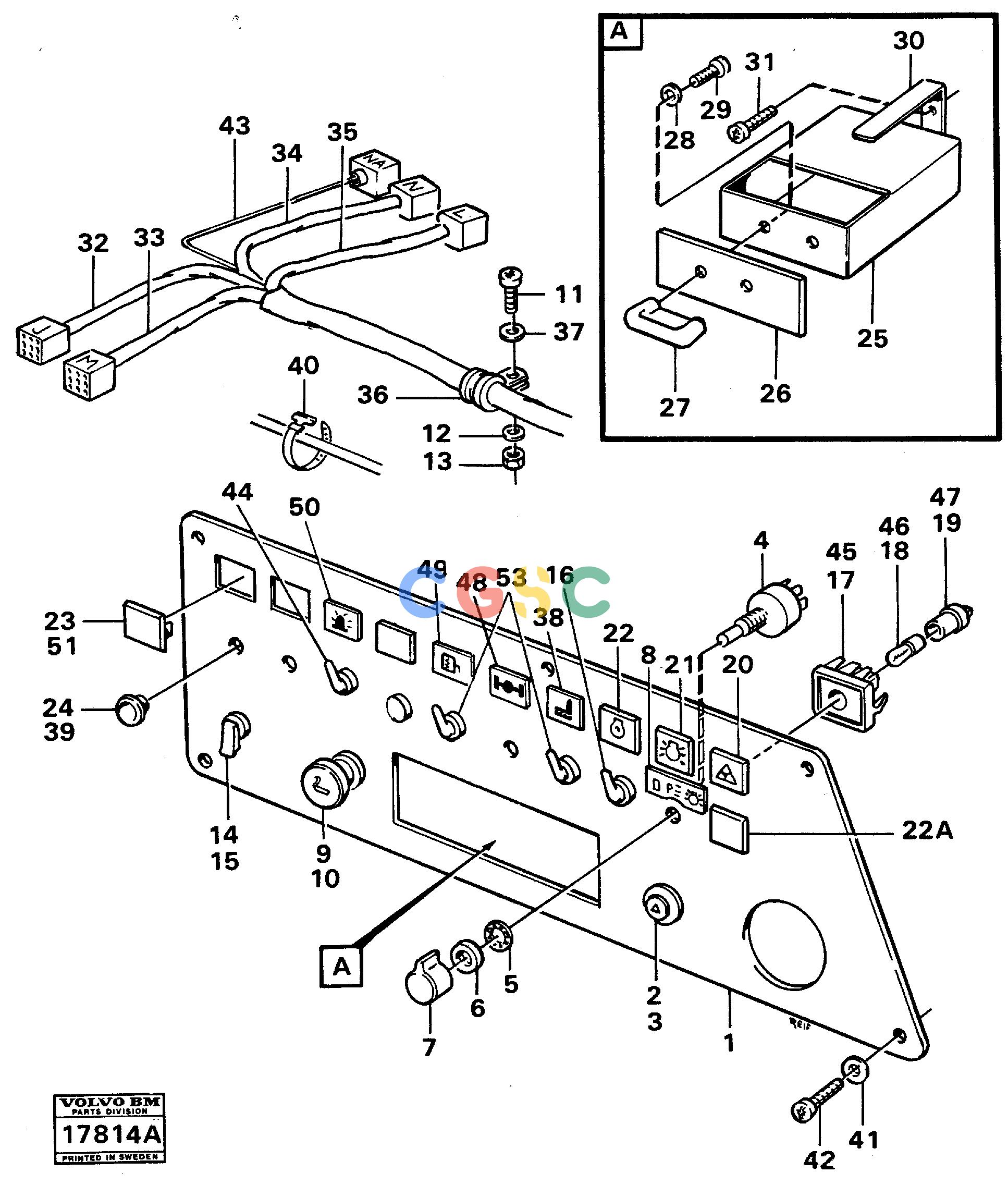

沃尔沃零件查询A25 VOLVO BM Instrumentpanel rightVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
689 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE4803160
|
[0001] |
Switch
|
|
| 41. |
VOE955892
|
[0006] |
Plain washer
|
|
| 42. |
VOE956095
|
[0006] |
Cross recessed screw
|
|
| 43. |
|
[0001] |
Wire harness
|
|
| 44. |
VOE4786696
|
[0003] |
Switch
|
|
| 45. |
VOE4786024
|
[0003] |
Socket
|
|
| |
VOE4786024
|
[0001] |
Socket
|
|
| 46. |
VOE182034
|
[0003] |
Bulb
|
|
| |
VOE182034
|
[0001] |
Bulb
|
|
| 47. |
VOE4786025
|
[0003] |
Bulb socket
|
|
| |
VOE4786025
|
[0001] |
Bulb socket
|
|
| 5. |
VOE13940109
|
[0001] |
Lock washer
|
|
| 48. |
VOE11062686
|
[0001] |
Lens
|
|
| 49. |
VOE11062624
|
[0001] |
Lens
|
|
| 50. |
VOE11062625
|
[0001] |
Lens
|
|
| |
VOE4787446
|
[0001] |
Switch
|
KÖLDSTART/COLD START
|
| 51. |
VOE11062684
|
[0001] |
Lens
|
|
| |
VOE11062626
|
[0001] |
Lens
|
|
| 6. |
VOE1212859
|
[0001] |
Nut
|
|
| 7. |
VOE1215134
|
[0001] |
Knob
|
|
| 8. |
VOE4803152
|
[0001] |
Decal
|
|
| |
VOE4864987
|
[0001] |
Instrument panel
|
|
| 9. |
VOE1586917
|
[0001] |
Cigarette lighter
|
|
| 10. |
VOE13946222
|
[0001] |
Retainer
|
|
| 11. |
VOE13980220
|
[0001] |
Six point socket screw
|
SER NO - 4584
|
| 12. |
VOE13941904
|
[0001] |
Washer
|
SER NO - 4584
|
| 13. |
VOE955779
|
[0001] |
Hexagon nut
|
SER NO - 4584
|
| 14. |
VOE4787694
|
[0001] |
Box
|
|
| 15. |
|
[0001] |
Cover
|
|
| 16. |
VOE4786696
|
[0001] |
Switch
|
|
| 17. |
VOE4786024
|
[0005] |
Socket
|
|
| 18. |
VOE182034
|
[0005] |
Bulb
|
|
| 1. |
|
[0001] |
Instr Panel
|
|
| 19. |
VOE4786025
|
[0005] |
Bulb socket
|
|
| 20. |
VOE11062683
|
[0001] |
Lens
|
|
| 21. |
VOE4787130
|
[0001] |
Lens
|
|
| 22. |
VOE11062685
|
[0001] |
Lens
|
|
| 22A. |
VOE4787085
|
[0001] |
Lens
|
|
| 23. |
VOE4786078
|
[0005] |
Plug
|
|
| 24. |
VOE941266
|
[0007] |
Plug
|
|
| 25. |
VOE335208
|
[0001] |
Ashtray
|
|
| 26. |
VOE1088769
|
[0001] |
Cap
|
|
| 27. |
VOE329028
|
[0001] |
Handle
|
|
| 2. |
VOE4787092
|
[0001] |
Wrn Flash Relay
|
|
| 28. |
VOE13941904
|
[0002] |
Washer
|
|
| 29. |
VOE191974
|
[0002] |
Screw
|
|
| 30. |
VOE341097
|
[0001] |
Brace
|
SER NO - XXXX
|
| |
|
|
Yoke
|
SER NO XXXX -
|
| 31. |
VOE950012
|
[0001] |
Cross recessed screw
|
|
| 32. |
VOE4821650
|
[0001] |
Cable harness
|
|
| |
VOE948294
|
[0001] |
Insulator
|
9-POLIG/9-POLE
|
| 33. |
VOE4821646
|
[0001] |
Cable harness
|
|
| |
VOE948295
|
[0001] |
Insulator
|
9-POLIG/9-POLE
|
| 34. |
VOE4821648
|
[0001] |
Cable harness
|
|
| 3. |
VOE11997242
|
[0001] |
Bulb
|
|
| |
VOE13948297
|
[0001] |
Tab housing
|
|
| |
|
|
None
|
3-POLIG/3-POLE
|
| 35. |
VOE4821647
|
[0001] |
Cable harness
|
|
| |
VOE948295
|
[0001] |
Insulator
|
9-POLIG/9-POLE
|
| |
VOE4787291
|
[0001] |
Receptacle housing
|
9-POLIG/9-POLE
|
| 36. |
VOE952628
|
[0001] |
Clamp
|
|
| 37. |
VOE13960138
|
[0001] |
Washer
|
|
| 38. |
VOE11062623
|
[0001] |
Lens
|
|
| 39. |
VOE4786696
|
[0001] |
Switch
|
|
| 40. |
VOE4821292
|
[REQ] |
Cable tie
|
|
