沃尔沃零件查询A25 VOLVO BM Instrumentpanel, leftVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
879 次

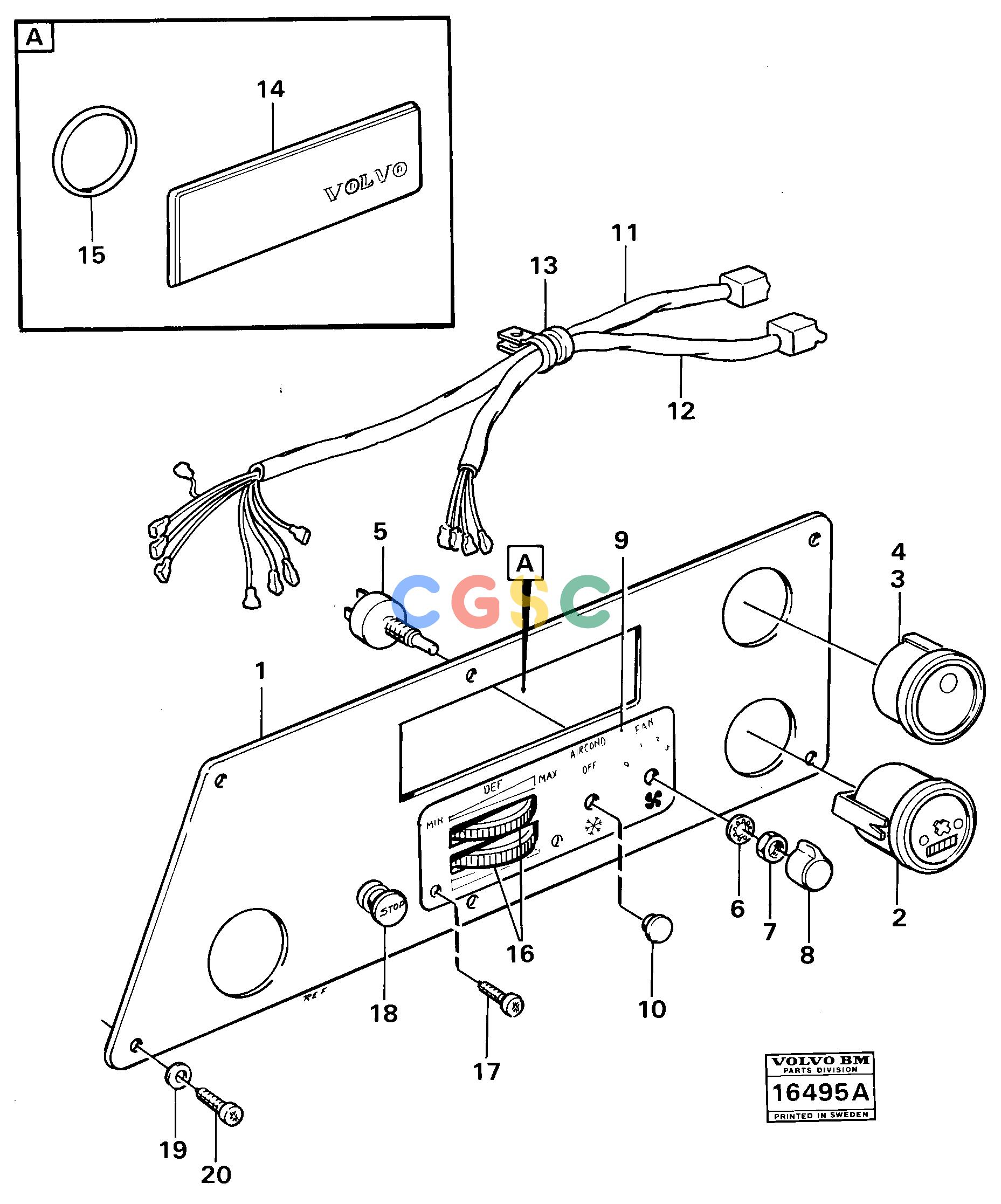

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE182059
|
[0002] |
Bulb
|
|
| 5. |
VOE1210190
|
[0001] |
Switch
|
|
| 6. |
VOE13940109
|
[0001] |
Lock washer
|
|
| 7. |
VOE1212859
|
[0001] |
Nut
|
|
| 8. |
VOE1215134
|
[0001] |
Knob
|
|
| |
VOE4821814
|
[0001] |
Instrument panel
|
|
| 9. |
VOE4771520
|
[0001] |
Decal
|
|
| 10. |
VOE941266
|
[0001] |
Plug
|
|
| 11. |
VOE4821809
|
[0001] |
Cable harness
|
|
| 12. |
VOE4821810
|
[0001] |
Cable harness
|
|
| 13. |
VOE952628
|
[0001] |
Clamp
|
|
| 14. |
VOE1502542
|
[0001] |
Radio panel
|
|
| 15. |
VOE13960233
|
[0002] |
O-ring
|
|
| 16. |
|
[0002] |
Control
|
SEE GROUP 87
|
| 17. |
VOE955127
|
[0002] |
Cross recessed screw
|
|
| 18. |
|
[0001] |
Control
|
SEE GROUP 27
|
| 1. |
|
[0001] |
Instr Panel
|
|
| 19. |
VOE955892
|
[0006] |
Plain washer
|
|
| 20. |
VOE956095
|
[0006] |
Cross recessed screw
|
|
| 2. |
VOE4803561
|
[0001] |
Hour counter
|
|
| 3. |
VOE1130162
|
[0001] |
Lamp
|
|
