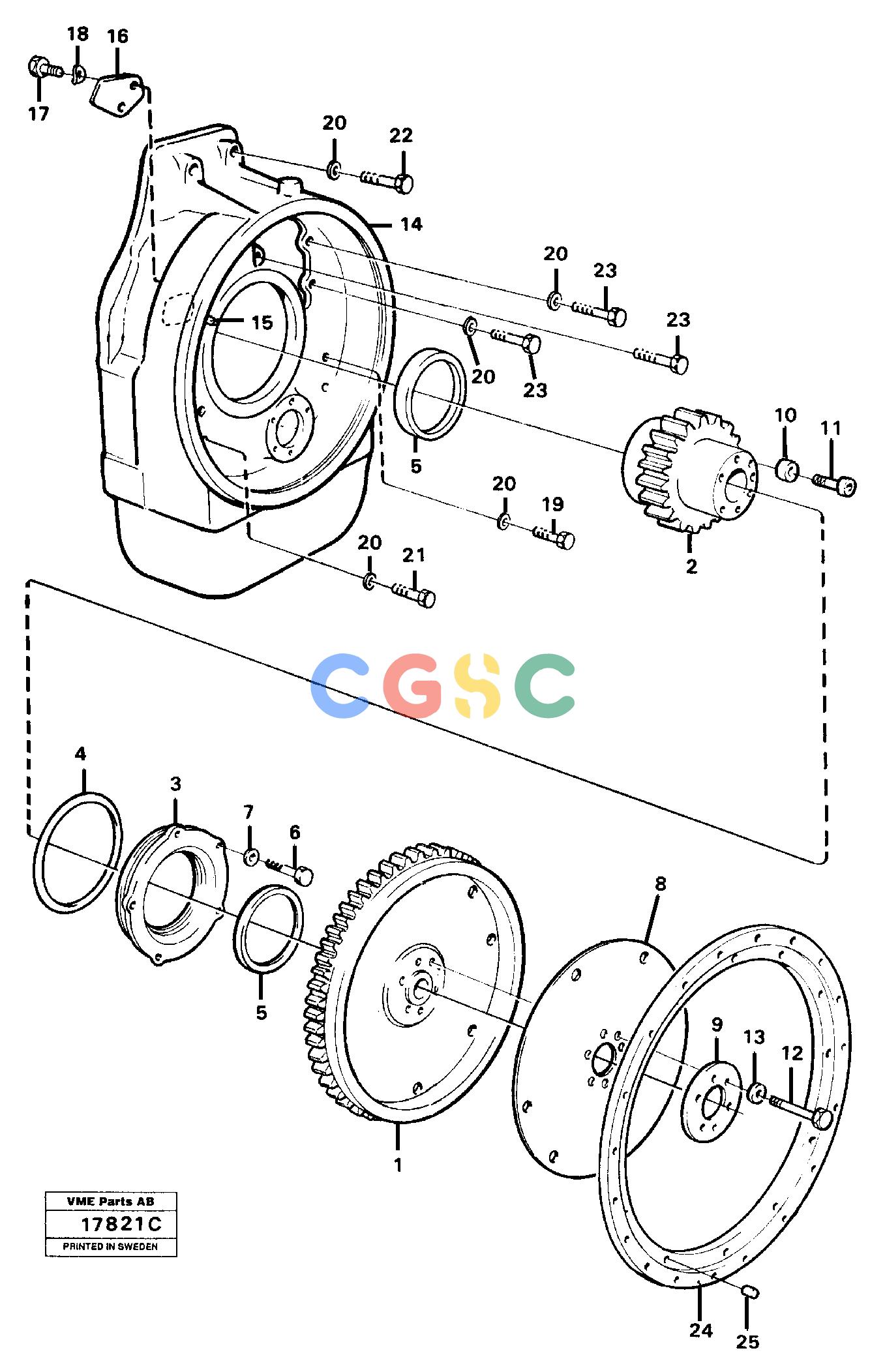

沃尔沃零件查询A25 VOLVO BM Pump drive with fitting partsVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
441 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11030790
|
[1] |
Flywheel
|
ENG - 97292
|
| |
VOE11030905
|
[1] |
Flywheel
|
ENG 97293 -
|
| |
VOE420314
|
[1] |
Gear ring
|
|
| 2. |
VOE4770434
|
[1] |
Gear
|
ENG - 97292
|
| |
VOE11030915
|
[1] |
Gear
|
ENG 97293 -
|
| 3. |
VOE4770441
|
[1] |
Cover
|
|
| 4. |
VOE984470
|
[1] |
O-ring
|
|
| 5. |
VOE477119
|
[2] |
Crankshaft seal
|
|
| 6. |
VOE955513
|
[5] |
Hexagon screw
|
|
| 7. |
VOE13941906
|
[5] |
Washer
|
|
| 8. |
|
[4] |
Companion flange
|
|
| 9. |
VOE11030572
|
[1] |
Pressure plate
|
ENG - 97292
|
| |
VOE11030923
|
[1] |
Pressure plate
|
ENG 97293 -
|
| 10. |
VOE4770746
|
[1] |
Guide sleeve
|
|
| 11. |
VOE926323
|
[1] |
Screw
|
|
| 12. |
VOE11030932
|
[9] |
Screw
|
|
| 13. |
VOE467773
|
[6] |
Washer
|
|
| 14. |
|
[1] |
Casing
|
|
| 15. |
VOE4771463
|
[1] |
Indicator
|
|
| 16. |
VOE4770838
|
[2] |
Cover
|
|
| 17. |
VOE955522
|
[2] |
Hexagon screw
|
|
| 18. |
VOE13941907
|
[2] |
Washer
|
|
| 19. |
VOE13971011
|
[2] |
Hexagon screw
|
|
| 20. |
VOE941911
|
[10] |
Spring washer
|
|
| 21. |
VOE13971013
|
[2] |
Screw
|
|
| 22. |
VOE13971002
|
[2] |
Hexagon screw
|
|
| 23. |
VOE13971001
|
[4] |
Hexagon screw
|
|
| 24. |
|
[1] |
Centre ring
|
|
| 25. |
|
[2] |
Pin
|
|
