沃尔沃零件查询A25 VOLVO BM Pump driveVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
780 次

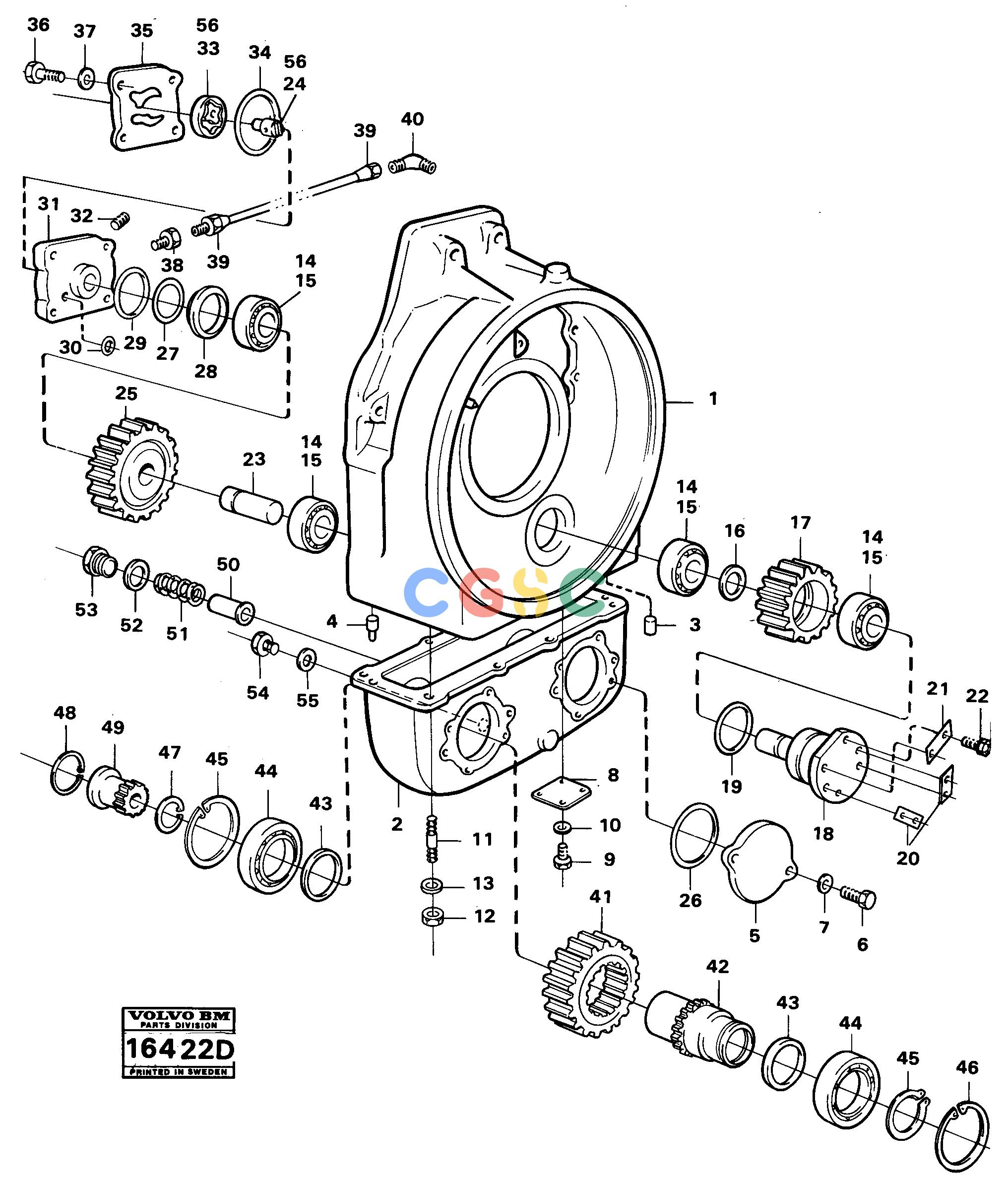

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE4770525
|
[0001] |
Pin
|
|
| 30. |
VOE944364
|
[0003] |
O-ring
|
|
| 31. |
VOE4770523
|
[0001] |
Housing
|
|
| 32. |
VOE479979
|
[0004] |
Plug
|
|
| 33. |
|
[0001] |
Rotor kit
|
SE POS 56
|
| 34. |
VOE967344
|
[0001] |
O-ring
|
|
| 35. |
VOE4770429
|
[0001] |
Cover
|
|
| 36. |
VOE940186
|
[0004] |
Hexagon screw
|
|
| 37. |
VOE13941907
|
[0004] |
Washer
|
|
| 38. |
VOE4823676
|
[0001] |
Clutch
|
|
| 5. |
VOE4770607
|
[0001] |
Cover
|
|
| 39. |
VOE932383
|
[REQ] |
Hose assembly
|
L=800
|
| |
VOE13949747
|
[0001] |
Clamp
|
|
| 40. |
VOE4881644
|
[0001] |
Nipple
|
|
| 6. |
VOE955560
|
[0002] |
Hexagon screw
|
|
| |
VOE4881624
|
[0001] |
Nipple
|
|
| |
VOE4785905
|
[0001] |
Nut
|
|
| 41. |
VOE4770431
|
[0002] |
Gear
|
|
| 42. |
VOE4770605
|
[0002] |
Shaft
|
|
| 43. |
VOE11030368
|
[0004] |
Spacer ring
|
|
| 44. |
VOE7019283
|
[0004] |
Ball bearing
|
|
| 45. |
VOE914548
|
[0004] |
Retaining ring
|
|
| 46. |
VOE914478
|
[0002] |
Snap ring
|
|
| 47. |
VOE914525
|
[0003] |
Retaining ring
|
|
| 48. |
VOE914529
|
[0003] |
Retaining ring
|
|
| 7. |
VOE940280
|
[0002] |
Spring washer
|
|
| 49. |
VOE11031017
|
[0003] |
Splined sleeve
|
|
| 50. |
VOE4770428
|
[0001] |
Strainer
|
|
| 51. |
VOE4770473
|
[0001] |
Spring
|
|
| 52. |
VOE13947628
|
[0001] |
Plane gasket
|
|
| 53. |
VOE191086
|
[0001] |
Plug
|
|
| 54. |
VOE13948187
|
[0001] |
Plug
|
|
| 55. |
VOE13947625
|
[0001] |
Plane gasket
|
|
| 56. |
VOE977025
|
[0001] |
O-ring
|
|
| 56. |
VOE4771522
|
[0001] |
Pump unit
|
|
| 8. |
VOE4771200
|
[0001] |
Cover
|
|
| |
VOE4770446
|
[0001] |
Shaft
|
|
| |
VOE4720542
|
[0001] |
Rotor kit
|
|
| |
VOE4772241
|
[0001] |
Xmsn Unit
|
|
| 9. |
VOE955512
|
[0004] |
Hexagon screw
|
|
| 10. |
VOE13941906
|
[0004] |
Washer
|
|
| 11. |
VOE953259
|
[0008] |
Stud
|
|
| 12. |
VOE13942336
|
[0008] |
Spring washer
|
|
| 13. |
VOE13955827
|
[0008] |
Nut
|
|
| 14. |
VOE181302
|
[0004] |
Cup
|
|
| 15. |
VOE183839
|
[0004] |
Roller bearing
|
|
| 16. |
VOE4771366
|
[REQ] |
Spacer ring
|
THICK = 6.20
|
| |
VOE4771367
|
[REQ] |
Spacer ring
|
THICK=6,25
|
| |
VOE4771368
|
[REQ] |
Spacer ring
|
THICK = 6.30
|
| 1. |
VOE4772238
|
[0001] |
Gearbox housing
|
|
| |
VOE4771369
|
[REQ] |
Spacer ring
|
THICK=6,35
|
| |
VOE4771370
|
[REQ] |
Spacer ring
|
THICK = 6.40
|
| |
VOE4771371
|
[REQ] |
Spacer ring
|
THICK=6,45
|
| |
VOE4771372
|
[REQ] |
Spacer ring
|
THICK = 6.50
|
| |
VOE4771373
|
[REQ] |
Spacer ring
|
THICK=6,55
|
| |
VOE4771374
|
[REQ] |
Spacer ring
|
THICK = 6.60
|
| |
VOE4771375
|
[REQ] |
Spacer ring
|
THICK=6,65
|
| |
VOE4771376
|
[REQ] |
Spacer ring
|
THICK = 6.70
|
| |
VOE4771377
|
[REQ] |
Spacer ring
|
THICK=6,75
|
| |
VOE4771378
|
[REQ] |
Spacer ring
|
THICK = 6.80
|
| 2. |
VOE4770604
|
[0001] |
Gearbox housing
|
|
| |
VOE4771379
|
[REQ] |
Spacer ring
|
THICK=6,85
|
| |
VOE4771380
|
[REQ] |
Spacer ring
|
THICK = 6.90
|
| |
VOE4771381
|
[REQ] |
Spacer ring
|
THICK=6,95
|
| |
VOE4771382
|
[REQ] |
Spacer ring
|
THICK = 7.00
|
| 17. |
VOE11030364
|
[0001] |
Gear
|
|
| 18. |
VOE4770621
|
[0001] |
Shaft
|
|
| 19. |
VOE977015
|
[0001] |
O-ring
|
|
| 20. |
VOE7015025
|
[0002] |
Tab washer
|
|
| 21. |
VOE941878
|
[0001] |
Tab washer
|
|
| 3. |
VOE191171
|
[0001] |
Pin
|
|
| 22. |
VOE955524
|
[0006] |
Hexagon screw
|
L = 19
|
| 23. |
VOE4771571
|
[0001] |
Shaft
|
|
| 24. |
|
[0001] |
Shaft
|
SE POS 56
|
| 25. |
VOE4771572
|
[0001] |
Gear
|
|
| 26. |
VOE977025
|
[0001] |
O-ring
|
|
| 27. |
VOE11127404
|
[REQ] |
Shim
|
THICK = 0.35
|
| |
VOE11127403
|
[REQ] |
Shim
|
THICK = 0.15
|
| |
VOE11127402
|
[REQ] |
Shim
|
THICK = 0.10
|
| 28. |
VOE4770611
|
[0001] |
Spacer ring
|
|
| 29. |
VOE967343
|
[0001] |
O-ring
|
|
