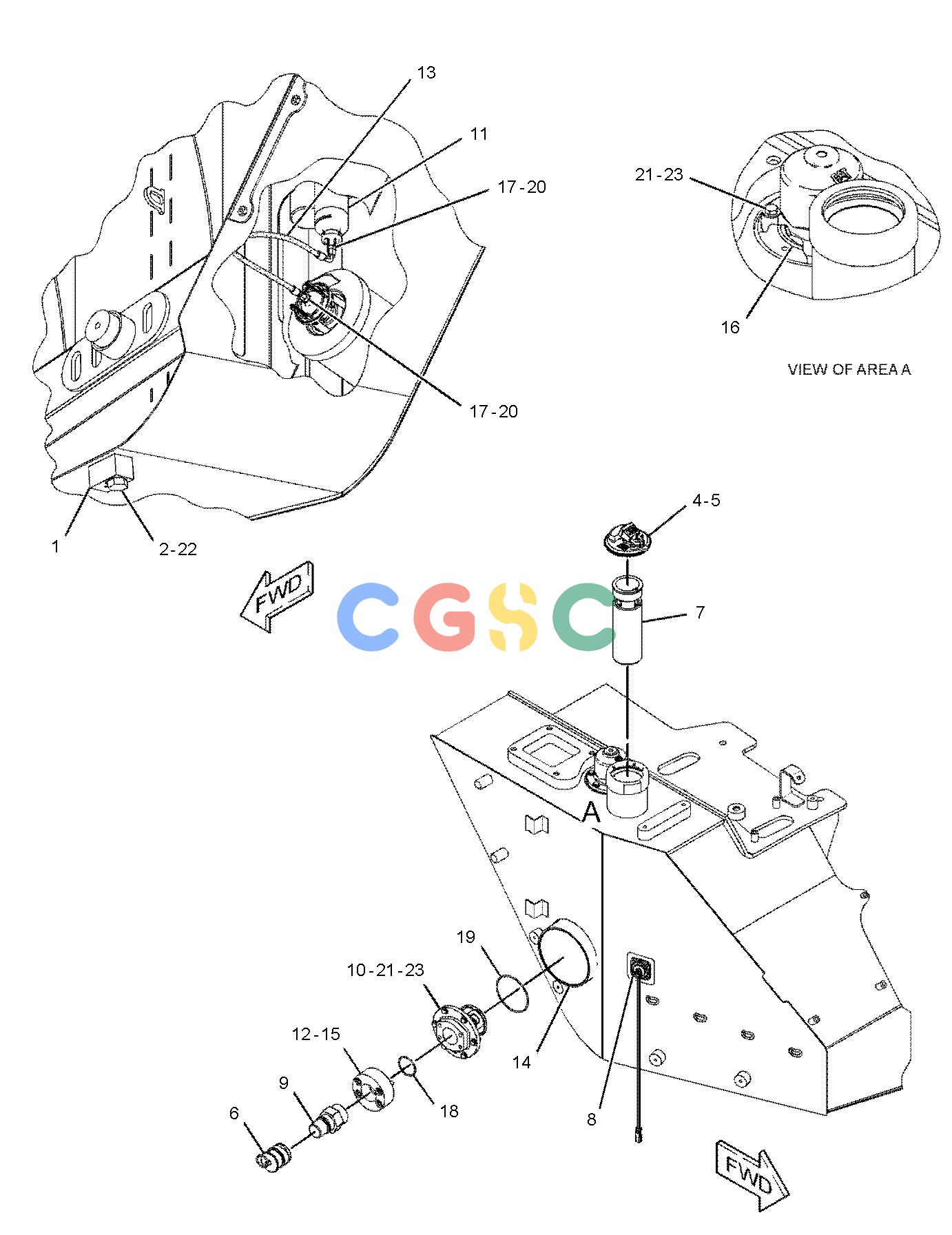

卡特零件查询（725） 223-9610: TANK GP-FUEL
广数供应链运营团队, 14 02月, 2025，浏览：
966 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1H-8306 | [1] | SCREW-PURGE(1/2-20X1.625-IN) | |
| 2. | 5P-4484 | [1] | PLUG-MAGNETIC(FUEL TANK) | |
| 3. | 7X-7700 | [1] | CAP AS-FUEL(LOCKABLE, VENTED) | |
| | 9X-2205 | [1] | KIT-CAP FILTER(FUEL TANK) | |
| | | | (INCLUDES FILTER AS, SCREWS, GASKETS & VALVE) |
| | 9X-8600 | [1] | SEAL-O-RING | |
| 4. | 9P-7121 | [1] | STRAINER-FUEL(FUEL TANK) | |
| 5. | 192-4315Y | [1] | GAUGE GP-FUEL LEVEL(TANK) | |
| 6. | 222-0734 | [1] | TANK AS-FUEL | |
| 7. | 7M-8485 | [1] | SEAL-O-RING | |
| 8. | 246-2641 | [1] | PADLOCK GP | |
| 8A. | 5P-8500 | [1] | KEY | |
| | Y | | SEPARATE ILLUSTRATION |
