卡特零件查询（725） 247-1731: TANK GP-FUEL
广数供应链运营团队, 14 02月, 2025，浏览：
196 次

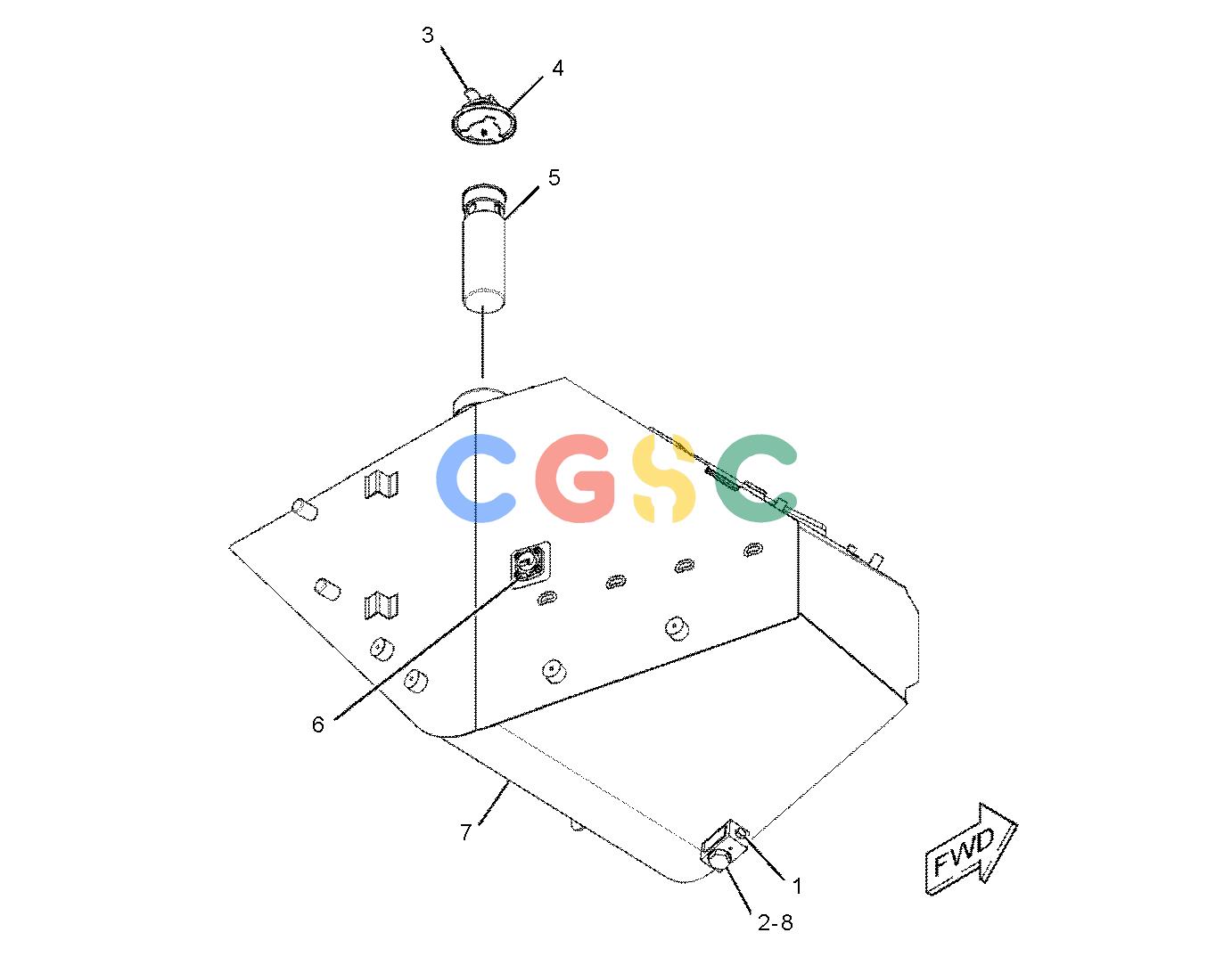

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1H-8306 | [1] | SCREW-PURGE(1/2-20X1.625-IN) | |
| 2. | 5P-4484 | [1] | PLUG-MAGNETIC(FUEL TANK) | |
| 3. | 7X-7700 | [1] | CAP AS-FUEL(LOCKABLE, VENTED) | |
| | 9X-2205 | [1] | KIT-CAP FILTER(FUEL TANK) | |
| | | | (INCLUDES FILTER AS, SCREWS, GASKETS & VALVE) |
| | 9X-8600 | [1] | SEAL-O-RING | |
| 4. | 9D-0630 | [1] | CAP-DUST | |
| 5. | 9P-7121 | [1] | STRAINER-FUEL(FUEL TANK)(FAST FILL) | |
| 6. | 192-4315Y | [1] | GAUGE GP-FUEL LEVEL(TANK) | |
| 7. | 217-5703 | [1] | RECEIVER(FAST FILL FUEL) | |
| 8. | 221-7693 | [1] | VALVE(FAST FILL FUEL) | |
| 9. | 224-2988 | [1] | VENT AS | |
| 10. | 225-0556 | [1] | ADAPTER | |
| 11. | 226-9504 | [1] | HOSE AS | |
| 12. | 247-1732 | [1] | TANK AS-FUEL | |
| 13. | 095-0670M | [4] | BOLT(M12X1.75X45-MM) | |
| 14. | 1H-8128 | [1] | SEAL-O-RING | |
| 15. | 1J-9671 | [2] | SEAL-O-RING | |
| 16. | 4J-0527 | [1] | SEAL-O-RING | |
| 17. | 5H-6734 | [1] | SEAL-O-RING | |
| 18. | 5P-2618 | [2] | CONNECTOR | |
| 19. | 5P-4116 | [12] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 20. | 7M-8485 | [1] | SEAL-O-RING | |
| 21. | 8T-4908M | [12] | BOLT(M8X1.25X25-MM) | |
| 22. | 246-2641 | [1] | PADLOCK GP | |
| | 5P-8500 | [1] | KEY | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
