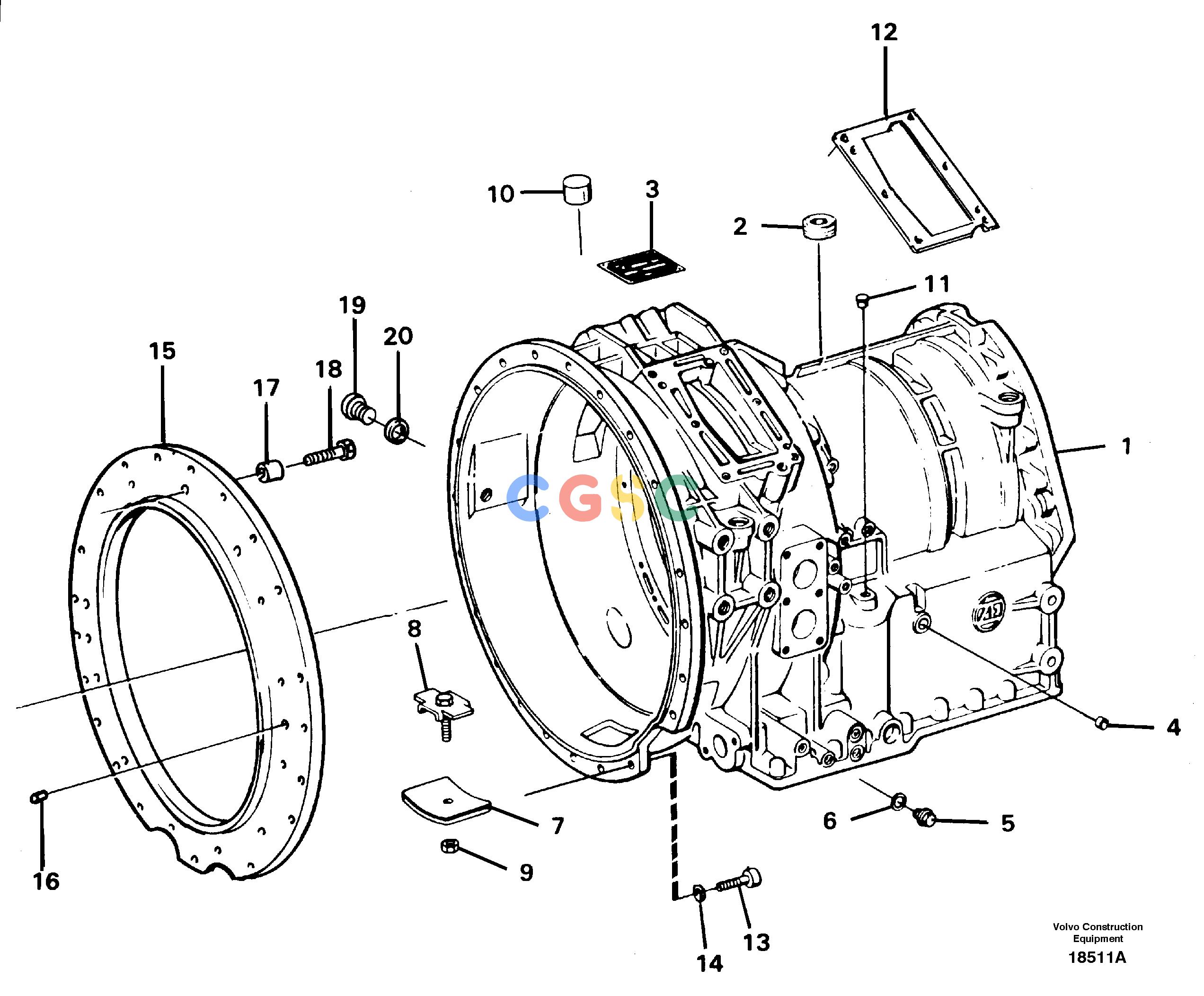

沃尔沃零件查询A25 VOLVO BM Gearbox housingVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
1009 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE4881689
|
[1] |
Transmission
|
ZF
|
| |
VOE11043050
|
[1] |
Transmission
|
(RETARDER)
|
| 1. |
VOE11991050
|
[1] |
Housing
|
|
| 2. |
VOE6633341
|
[1] |
Screw
|
|
| 3. |
|
[1] |
Sign
|
|
| 4. |
VOE11991051
|
[2] |
Cap plug
|
|
| 5. |
VOE13965768
|
[4] |
Plug
|
|
| 6. |
VOE13947281
|
[4] |
Gasket
|
|
| 7. |
VOE11991052
|
[1] |
Cover
|
|
| 8. |
VOE11991053
|
[1] |
Cover
|
|
| 9. |
VOE13946520
|
[1] |
Nut
|
|
| 10. |
|
[1] |
Cap
|
|
| 11. |
VOE1663762
|
[0002] |
Sealing plug
|
|
| 12. |
VOE1662090
|
[1] |
Gasket
|
|
| 13. |
VOE13970949
|
[19] |
Hexagon screw
|
|
| 14. |
VOE976945
|
[19] |
Washer
|
|
| 15. |
VOE4965519
|
[1] |
Intermediate ring
|
|
| 16. |
VOE950586
|
[2] |
Pin
|
|
| 17. |
VOE4965511
|
[12] |
Spacer sleeve
|
|
| 18. |
VOE960692
|
[12] |
Hexagon screw
|
|
| 19. |
VOE13966143
|
[2] |
Plug
|
|
| 20. |
VOE13947622
|
[2] |
Plane gasket
|
|
